Number Range Object-5

light Calling Number Range Object Maintenance by own Transaction Code




Once you have created your own different number range objects in Tx- SNRO or SNUM, you can assign each of the number range object to a particular T-Code and by using this direct T-Code you can call the maintenance screen of the individual number range object.

The below post shows some simple steps for this.


Goto  Tx- SNRO

1

Already we have created a number range object and also maintained its ranges. Provide the number range object name and select the Ranges button.

2

Select display button.

3

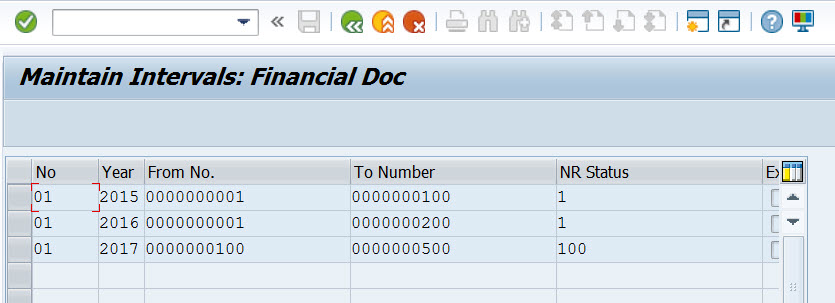

These below intervals were maintained.

4

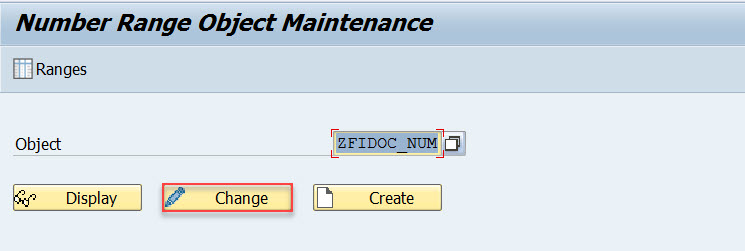

Go back to the main screen, and provide the number range object for which want to create a transaction code and select Change button.

5

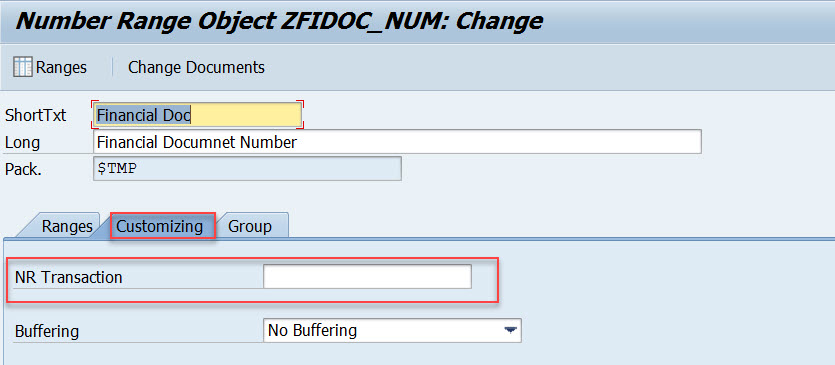

In the customizing tab, there is a field labeled as – NR Transaction . A simple F1 help shows the below details.

6

7


Provide a free name which can be used as transaction code to call the number range object maintenance screen.

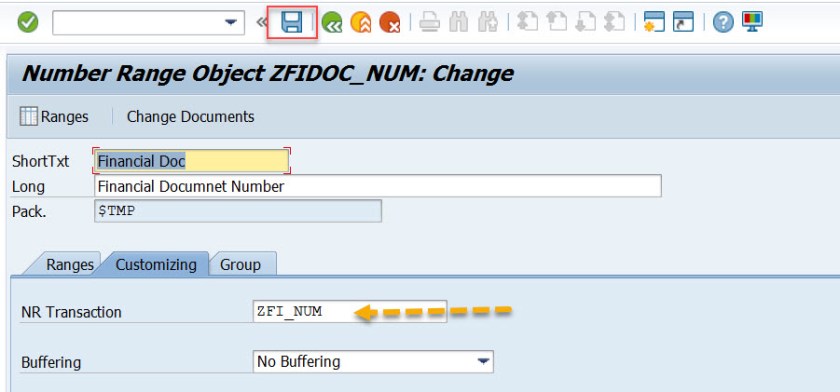

Provide a name as ‘ZFI_NUM’ & select Save button.

8


A view in Tx- SE93 . The Tcode is created with below details

12

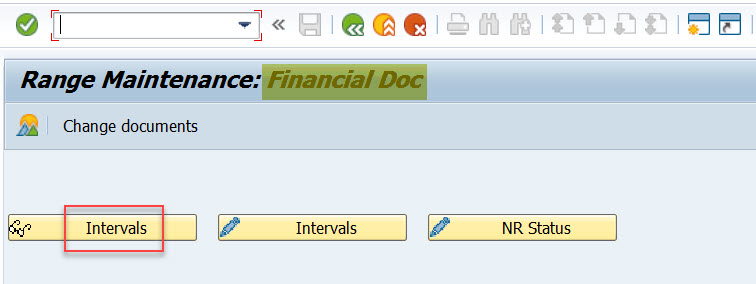

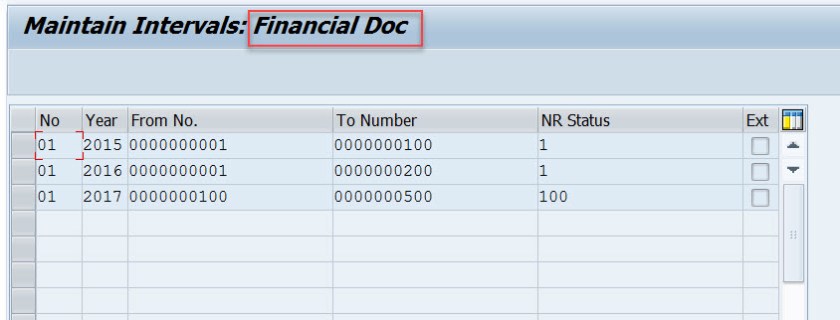

Execute the transaction which calls the associated number range object maintenance  screen directly.

910


11
