qRFC with Outbound Queue & Inbound Queue between two different SAP systems – One LUW per One RFC FM call

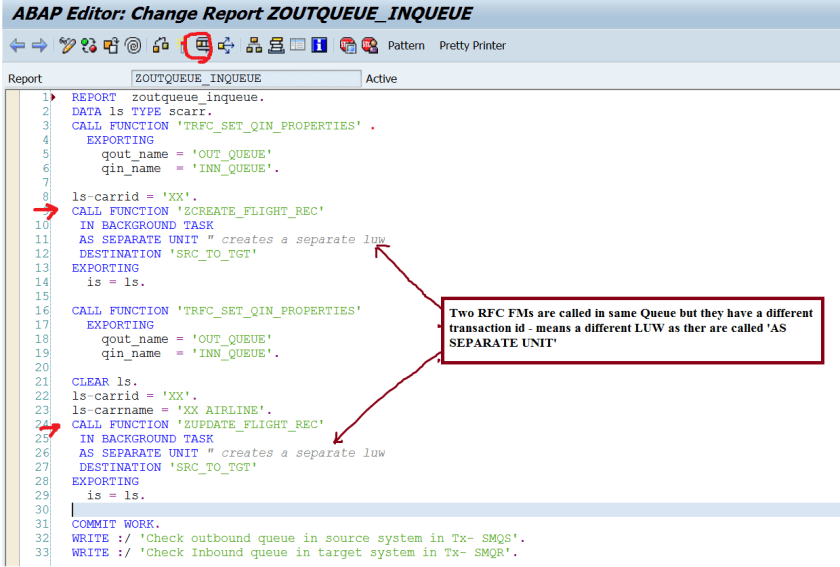

Step1. In single Queue- If we call multiple RFC FMs as separate unit then, for each FM call there is a separate TID – transaction Id means it is a separate LUW. Execute the report which calls two RFC FMs in separate  unit .

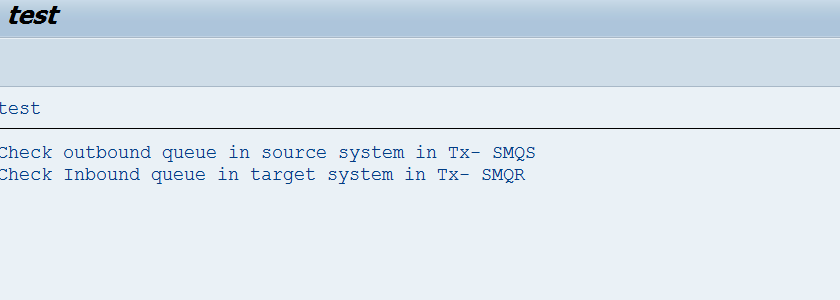

Step2. Output.

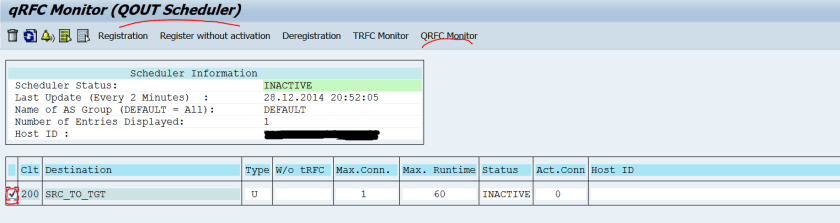

Step3. Source system – Tx- SMQS. Select the line and click on qRFC Monitor.

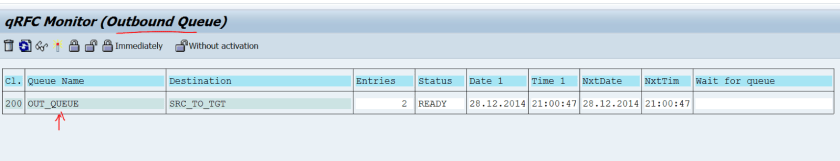

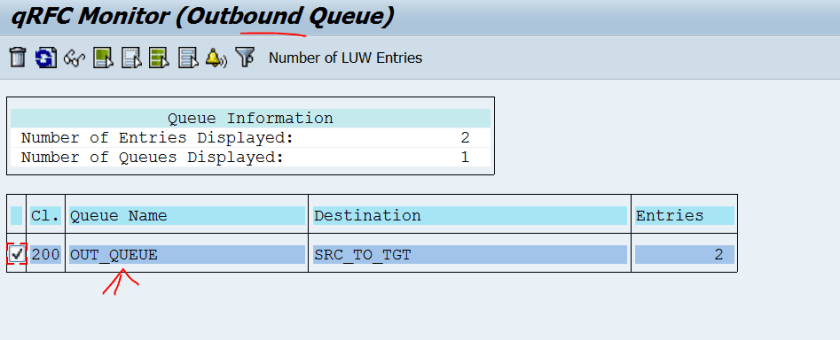

Step4. Source system: Double click on out bound queue name.


Step5. Source system : Double click on the OUT BOUND Queue name.

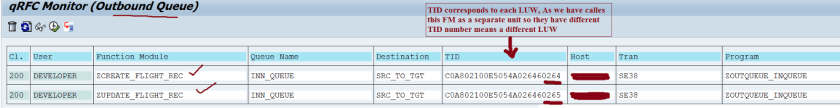

Step6. Source system: So here we have TWO RFC FM calls and each is associated with a different TID. Process the out bound queue.

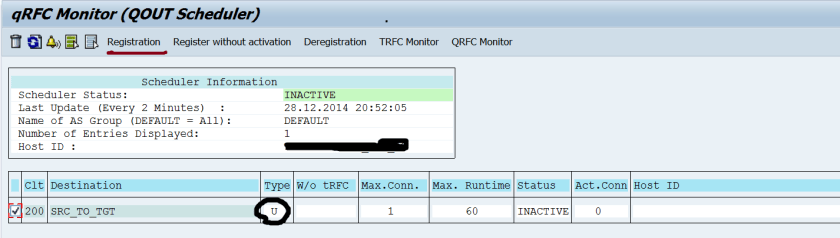

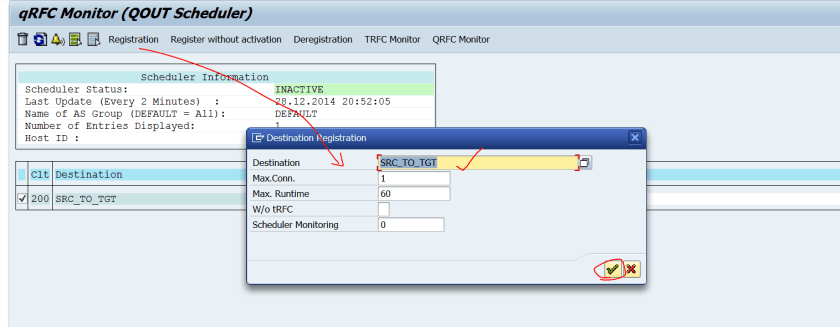

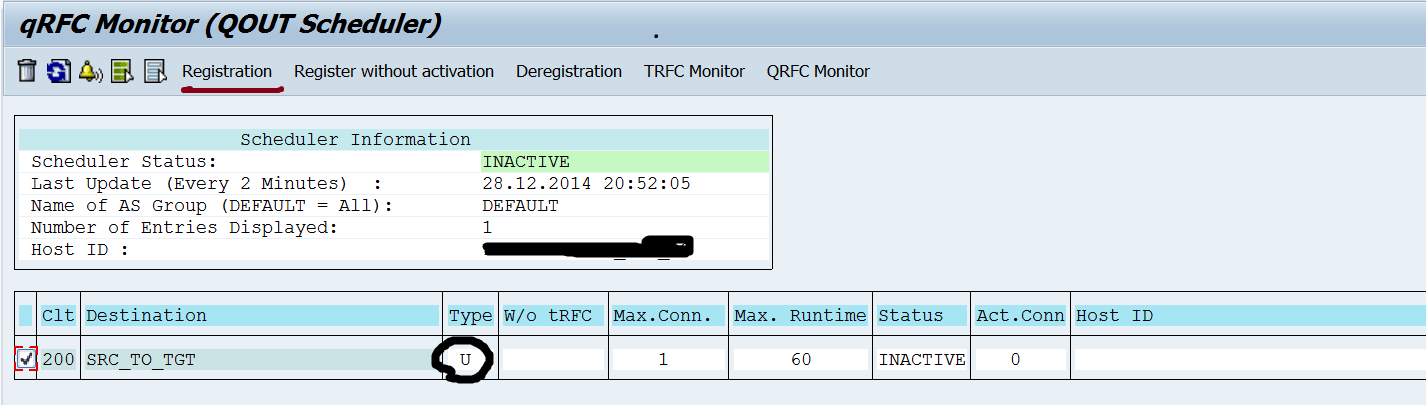

Step7. Source system. TO process the queue register the RFC destination.


Step8. Source system. Continue to proceed.


Step9.  Target system : Tx- SMQS. Select the line and click on the qRFC Monitor button.

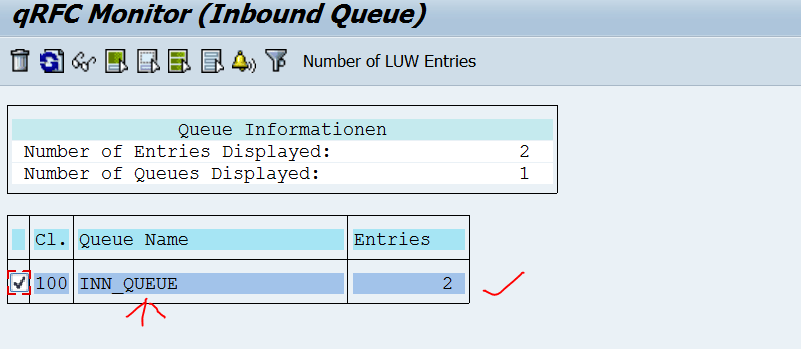

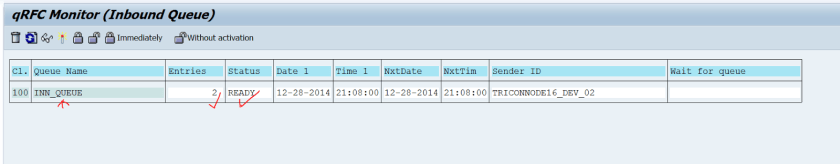

Step10.  Target system : Double click on the Inbound Queue name.


Step11.  Target system : Again double click on the Queue name.


Step12.  A snap short of the comparison of the TIDs of the source system outbound queue and destination system inbound queues.

 See the next post where all FM calls are included in a single LUW.
