Chargeable & Charged Item Class

light111CC: Chargeable & Charged Item Class


The CIT( Consumption Item ) Class & BIT ( Billable Item) Class are normally created in SAP ECC- CI (convergent Invoicing).

In SAP CC ( convergent charging),

-> Consumption Item Mapping is created which refers to a Consumption Item Class in CI and then it creates a Chargeable Item Class.

Similarly

->Billable Item Mapping is created which refers to a Billable Item Class in CI and then it creates a Charged Item Class.


The post described the process.

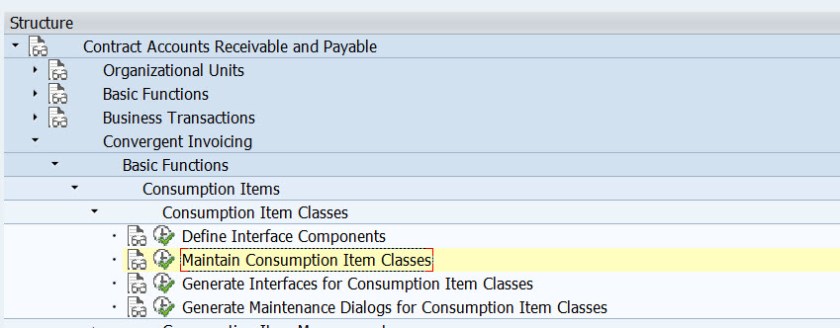

In CI : Consumption Item Class

1

2

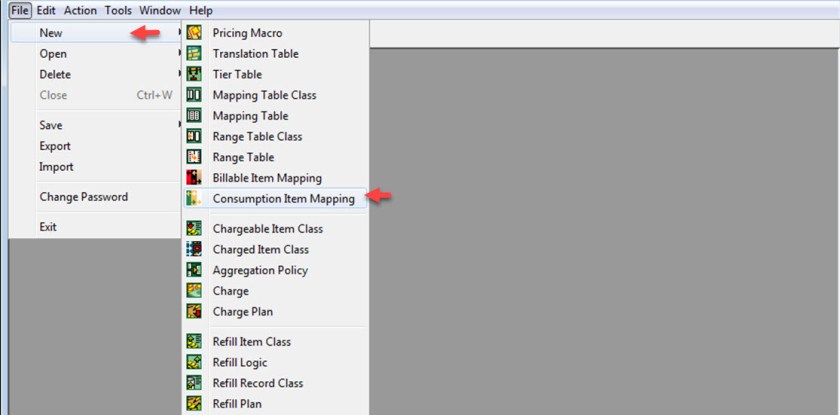

In SAP CC, below steps can be followed to create Consumption Item Mapping  and Chargeable Item Class from Consumption Item Class.

3

Provide the Consumption Item Class.

4

Save it.

5

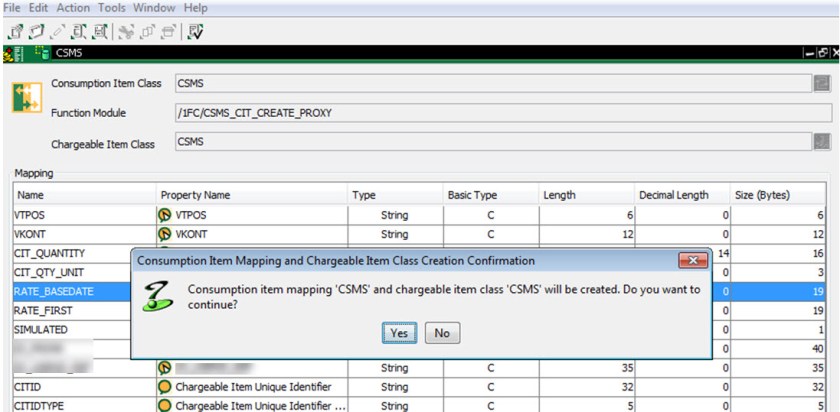

Select Yes to save.

6

Choose a catalog.

7

The Consumption Item Mapping  and Chargeable Item Class are created.

8

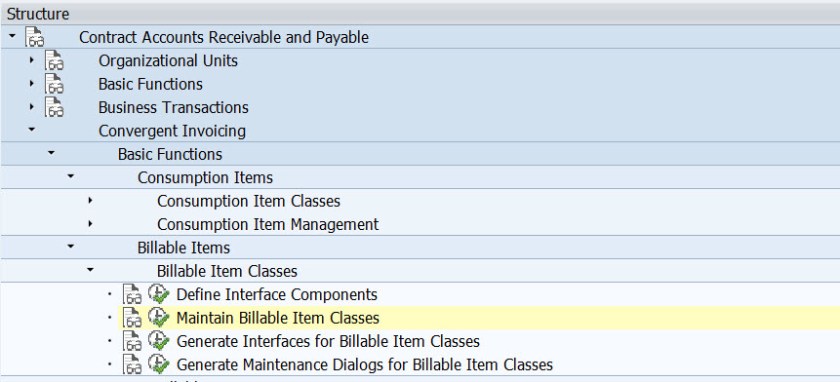

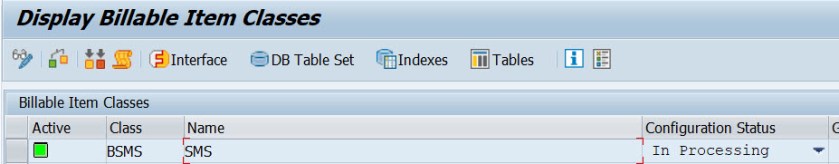

In CI: the Billable item class

9

10


In CC: create a Billable Item Mapping.

11

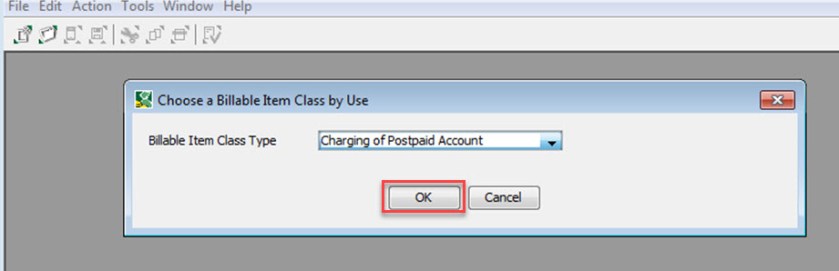

Choose prepaid/postpaid scenario.

12

Now here we can provide the CI Billable Item Class and it tries to create Charged Item Class.

13

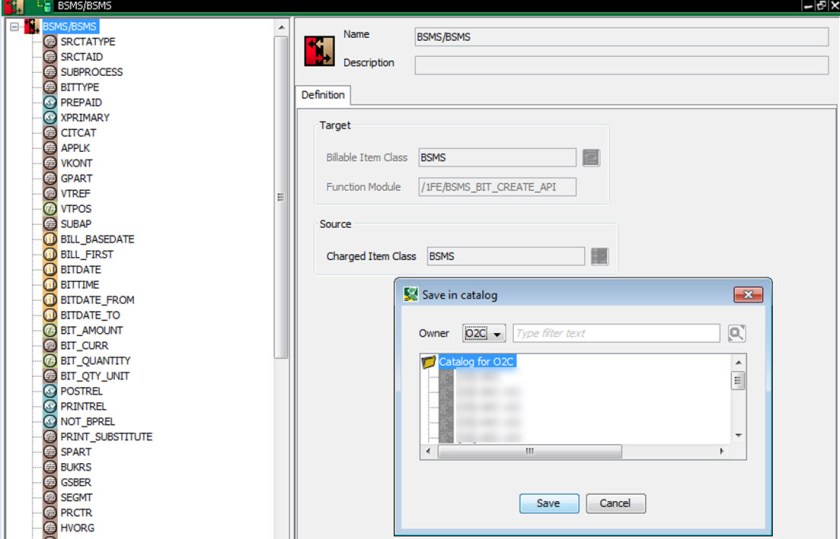

Save it.14

The Billable Item Mapping and Charged Item Class created from the Billable Item Class.

15
