ALV with IDA(ALV on HANA)-8

alv-ida

ALV Title & Row Pattern Setting

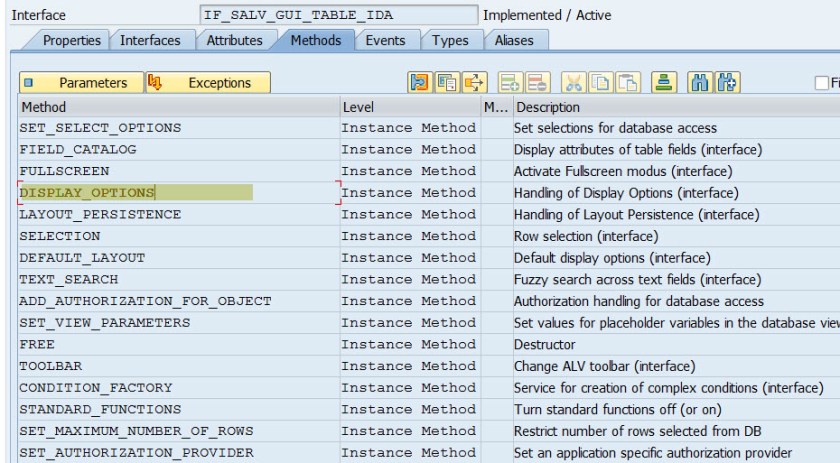

Method: DISPLAY_OPTIONS of interface IF_SALV_GUI_TABLE_IDA can be used to set alv title and row ppatern.

1

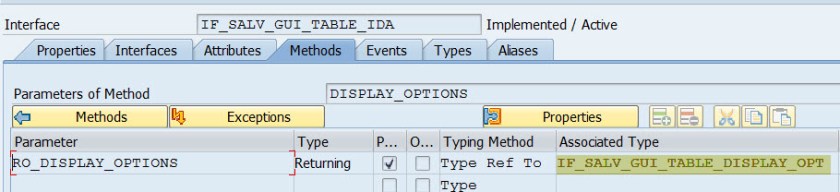

The method DISPLAY_OPTIONS  returns am object of IF_SALV_GUI_TABLE_DISPLAY_OPT which provides methods to set the title and row pattern.

23

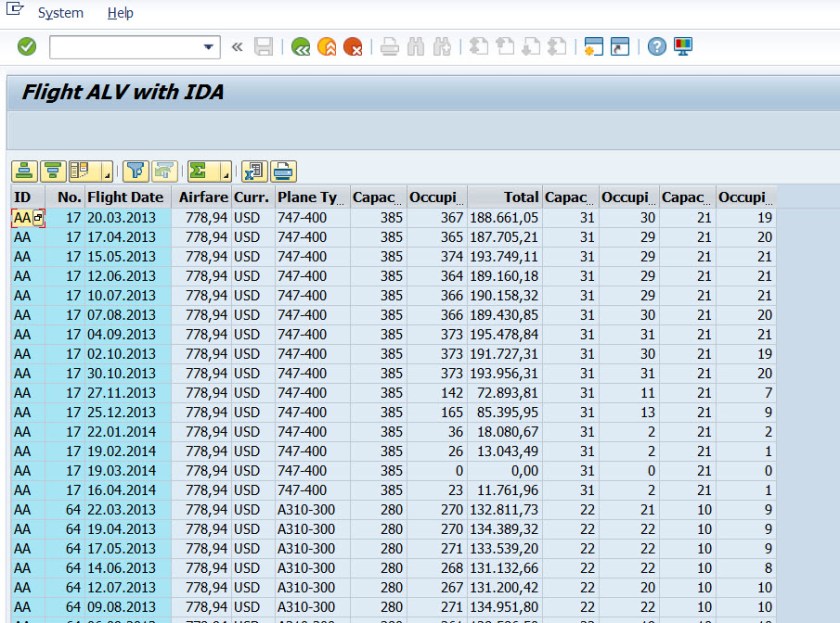

Program without alv title and row pattern.

45

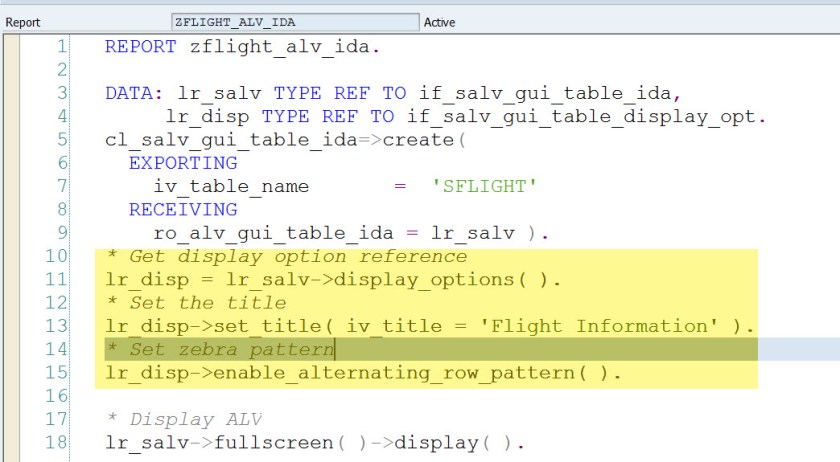

Code:


DATAlr_salv TYPE REF TO if_salv_gui_table_ida,
             lr_disp TYPE REF TO if_salv_gui_table_display_opt.
cl_salv_gui_table_ida=>create(
  EXPORTING
    iv_table_name       =  ‘SFLIGHT’
  RECEIVING
    ro_alv_gui_table_ida lr_salv ).

* Get display option reference
lr_disp lr_salv->display_options).
* Set the title
lr_disp->set_titleiv_title ‘Flight Information’ ).
* Set zebra pattern
lr_disp->enable_alternating_row_pattern).

* Display ALV
lr_salv->fullscreen)->display).


6

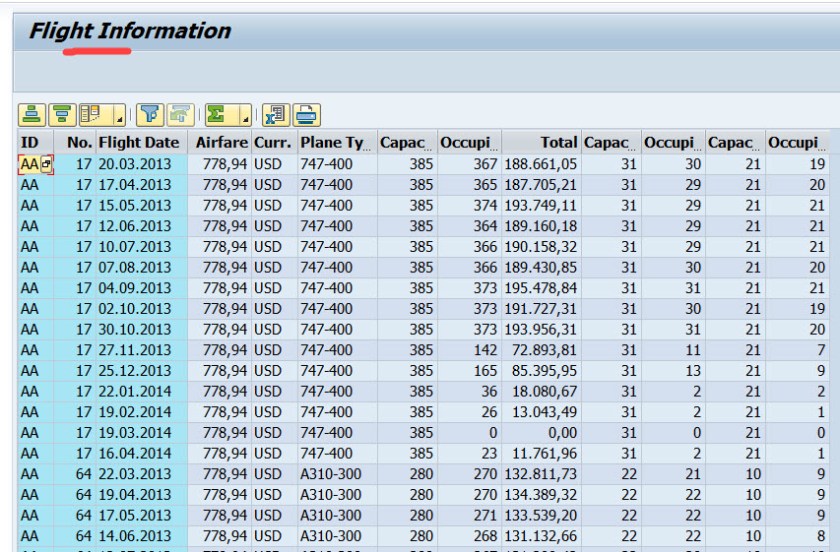

Output- ALV title set and Row Pattern(ZEBRA).

7
