How to add BAdI definition in IMG to create BAdI implementation?

lightHow to add BAdI definition in IMG to create BAdI implementation?






Open Tx- SE20  and provide the enhancement  spot name and select display button.

1

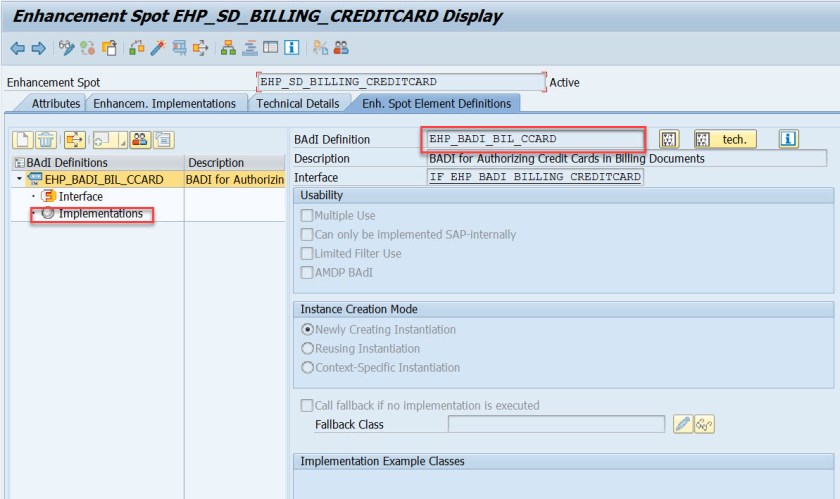

The defined BAdI : EHP_BADI_BIL_CCARD. Select implementations.

2

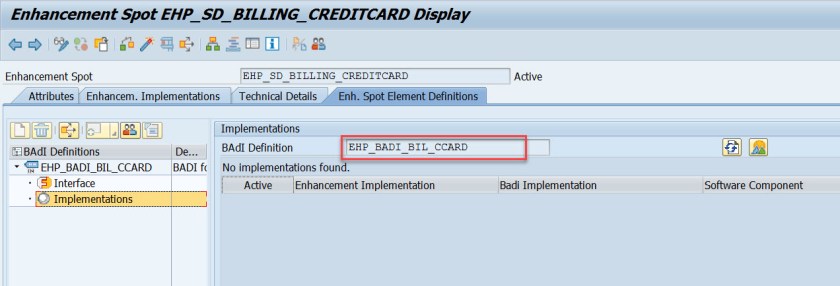

So there is no BAdI implementation.3

Execute Tx- SPRO and under sales and distribution->Billing-> we have business add ins.

Execute: Authorization of credit cards in Billing Documents

4

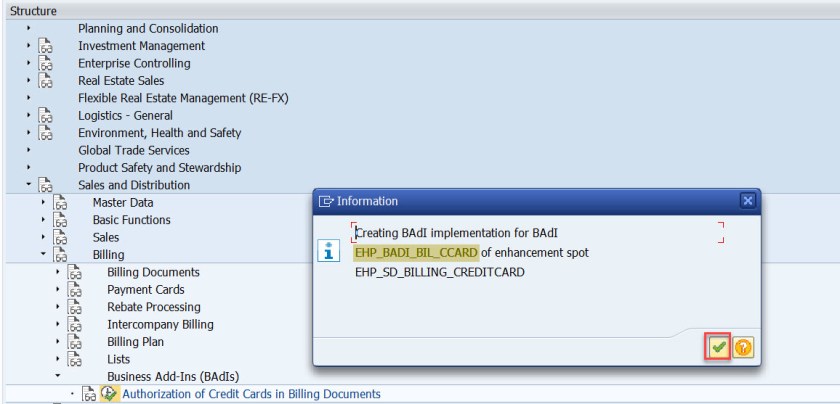

The pop up appears and click continue.

5

Here it opens the screen to create enhancement implementation and then to create badi implementation.

6


To know how the BADI option is added to the IMG and  it allows to create BADI implementation, then select edit and choose Display IMG Activity.

7

Normally  IMG activity can be crated using Tx- SIMGH and choosing needed spro tree section.

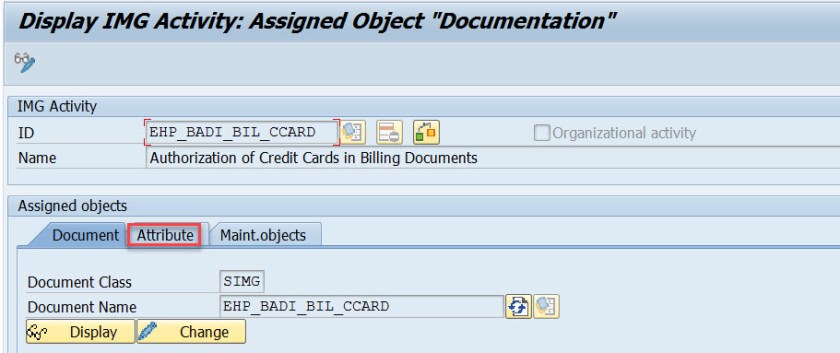

Under Documentation, the BAdI document object is created. Choose Attribute tab.

8

Here added some technical stuff. Choose Maint.objects Tab.

9

For BAdI: choose Second option under Maintenance Object Type and under Assigned Objects section provide the BAdI definition name.

10
