FPM App Consuming CDS View with Association

fpm-with-cdsFPM App Consuming CDS View with Association having Search, List &  Chart UIBB

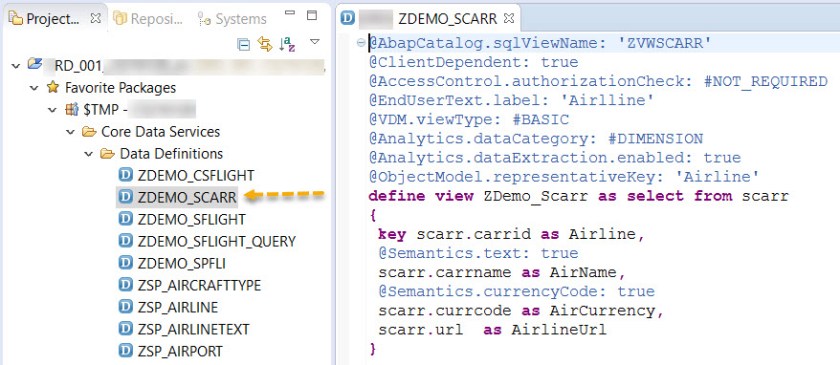

We have a simple CDS view ZDEMO_SCARR on SCARR table.

1

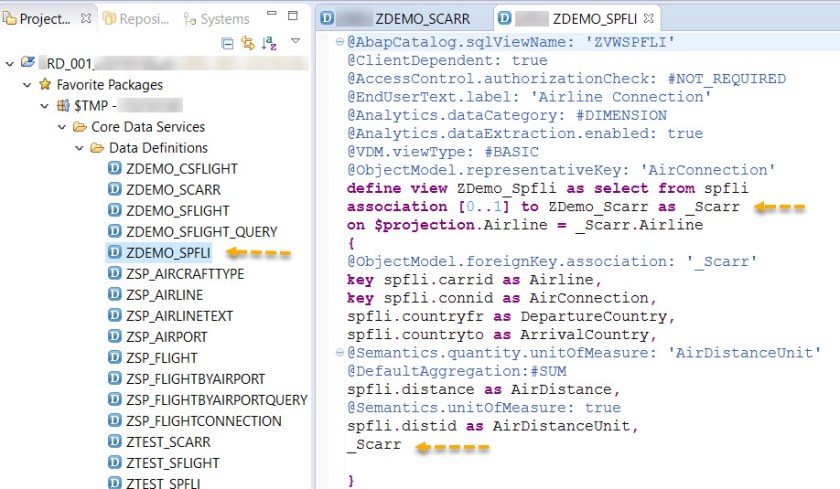

Here we have the CDS view ZDEMO_SPFLI on SPFLI table with association to the CDS view ZDEMO_SCARR

2


We have the data preview.

3

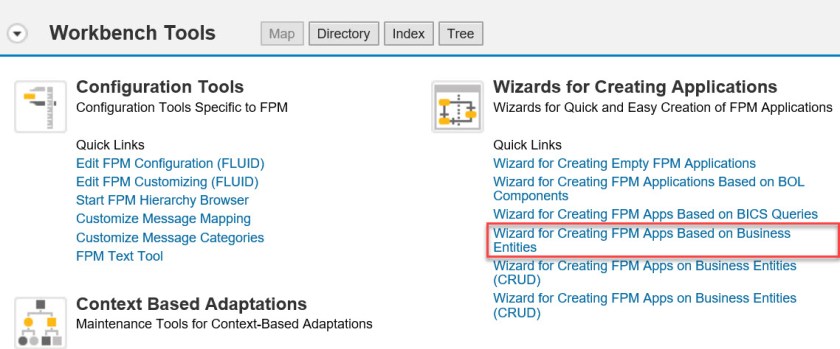

Go to the Tx- FPM_WB and choose the highlighted link.

4

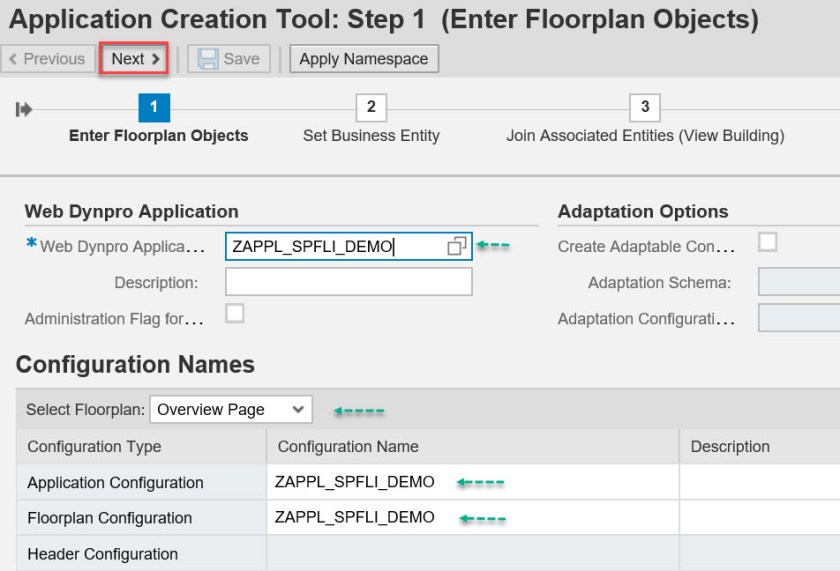

Provide the application name, floorplan as Overview Page and select Next.

5

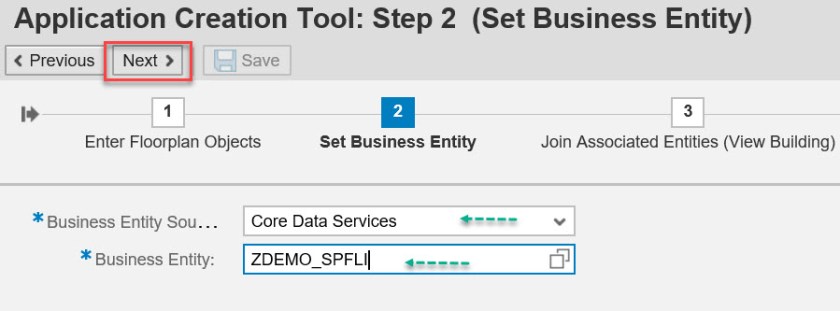

Choose Business Entity Source as Core Data Services and Business Entity as the CDS view name ZDEMO_SPFLI and choose NEXT.

6

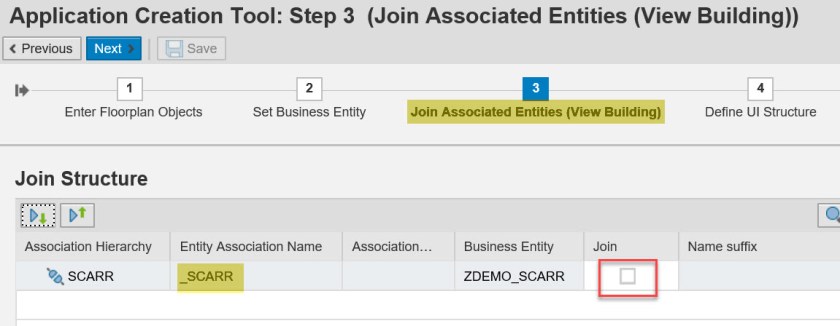

Here it displays the association and if we select the JOIN CheckBox then this association related fields would appears else not

7

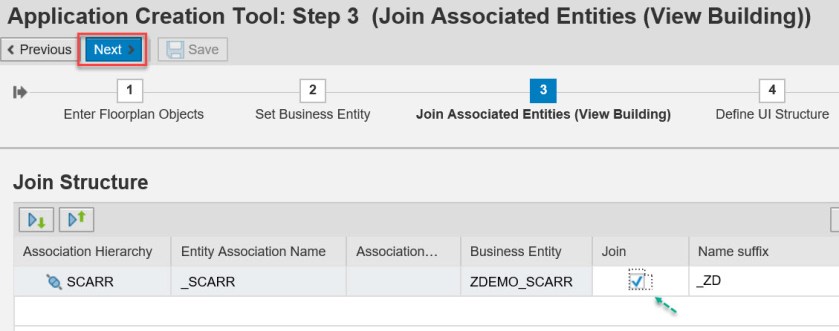

Select the Checkbox under Join and select Next.

8


Here we have the search and list uibb configurations. Now let’s create a chart uibb. Click on Add Chart.

9

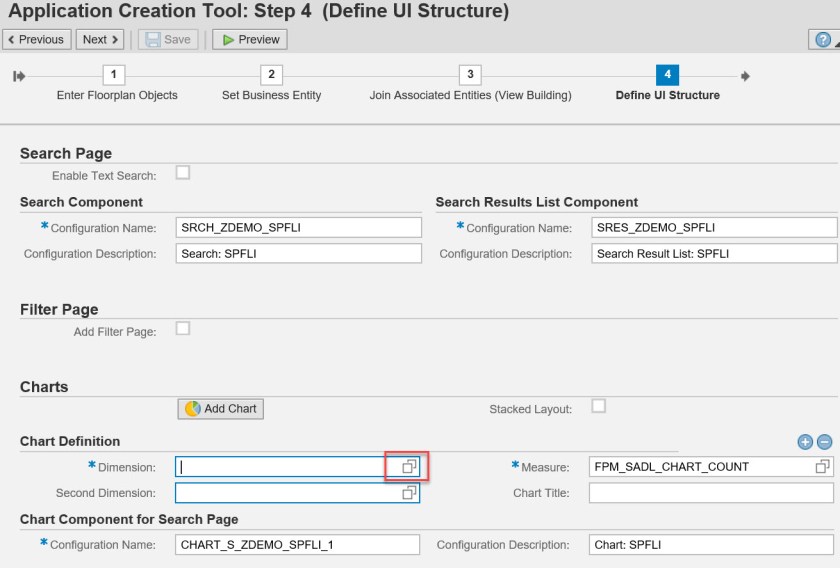

We have to add the dimension field. Press F4 help.

10

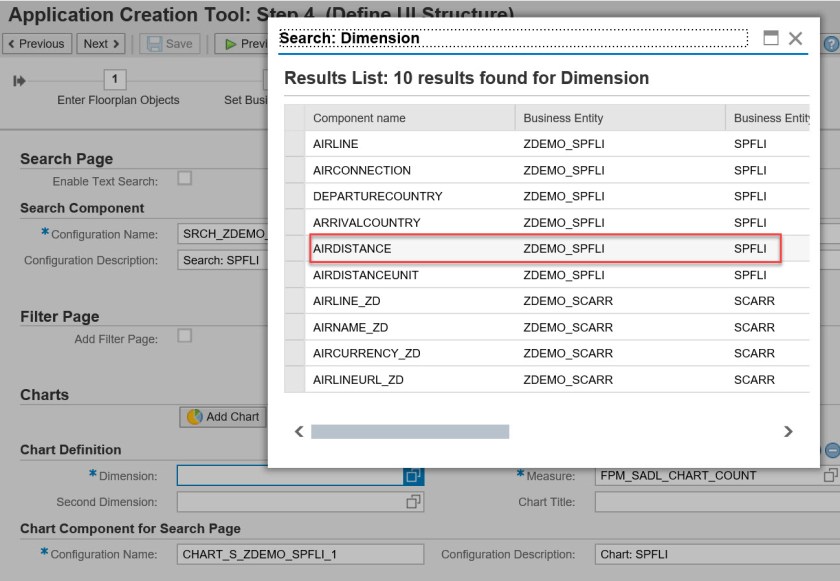

Select the field.

11

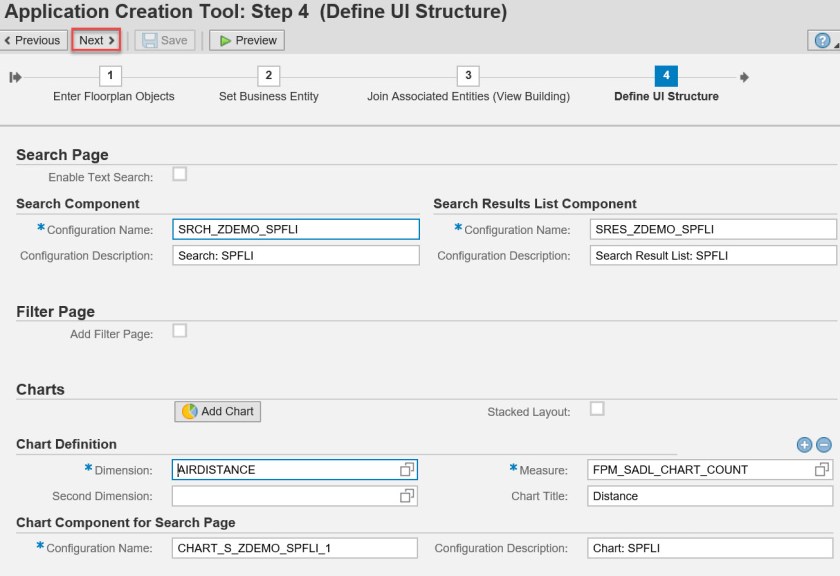

Click on Next button.

12

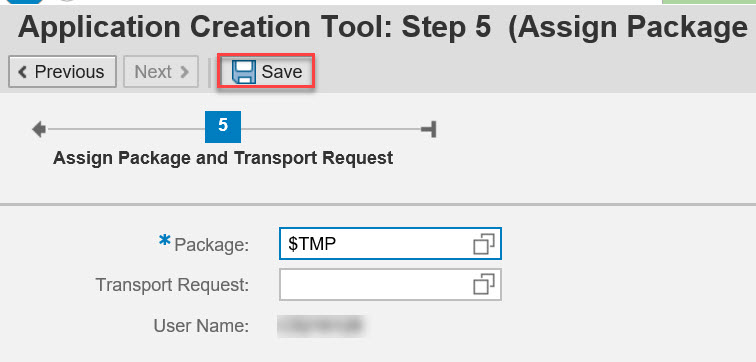

Click on SAVE .

13

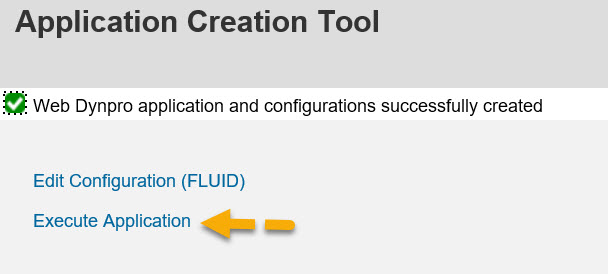

So the application creation is over. Now select Execute Application.

14

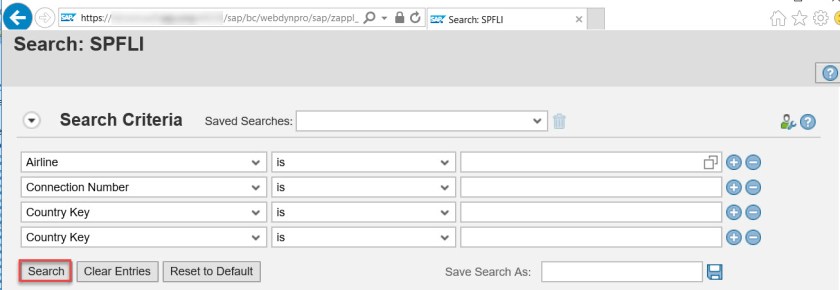

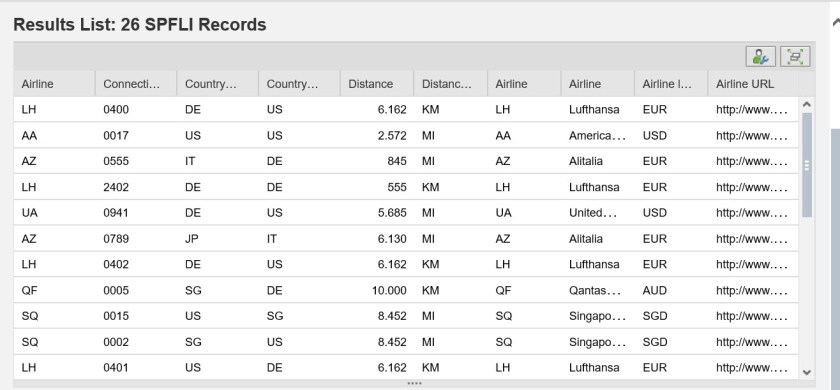

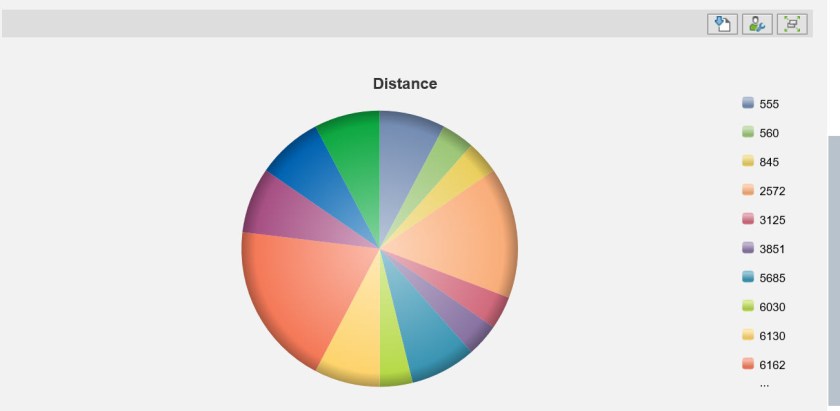

Here is the output with Search.List and Chart UIBB.

151617
