Using Standard Text in Adobe Form


 To create standard text, go to Tx- SO10

1

provide text name and select Create.

2

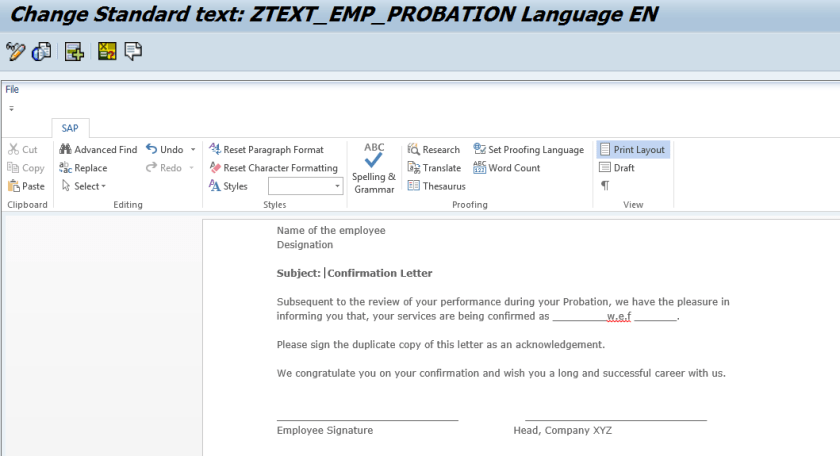

Provide the text and save. Now we created the standard text.

3

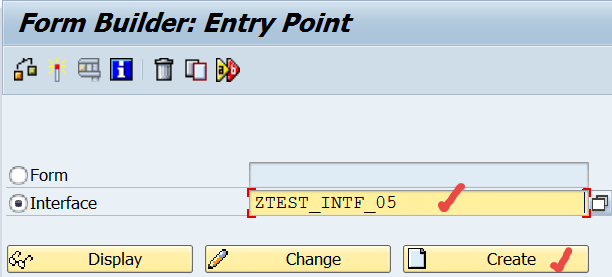

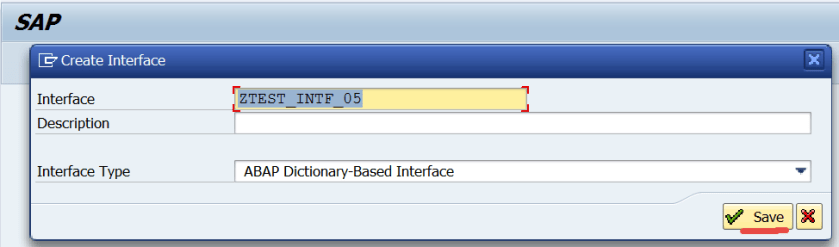

Go to Tx- SFP and create an interface.

4

5

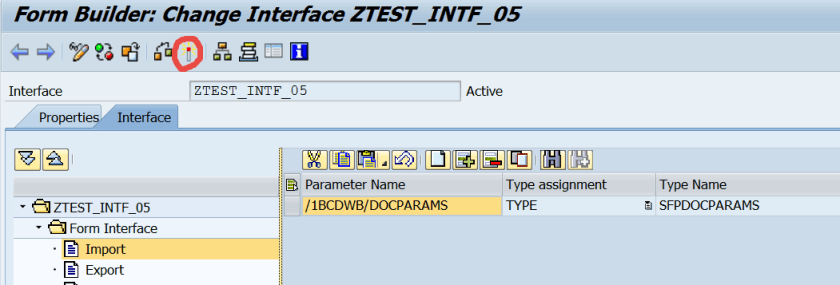

Just activate the interface.

6

Go to Tx- SFP and create a Form.

7

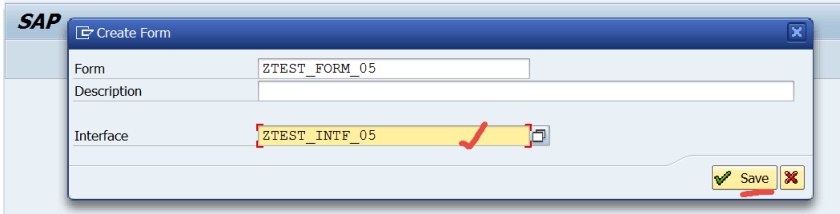

Assign the interface and Save.

8

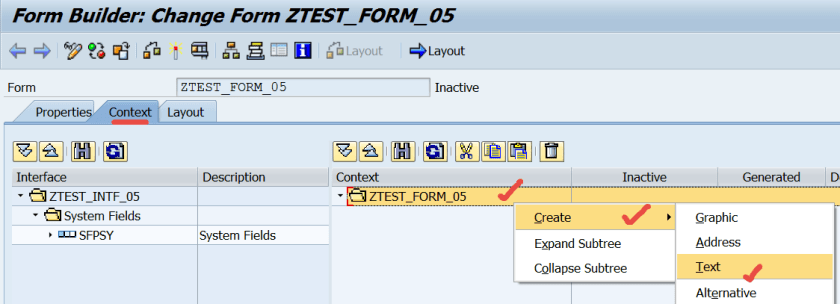

On the context , create a text by navigating through Right click.

9

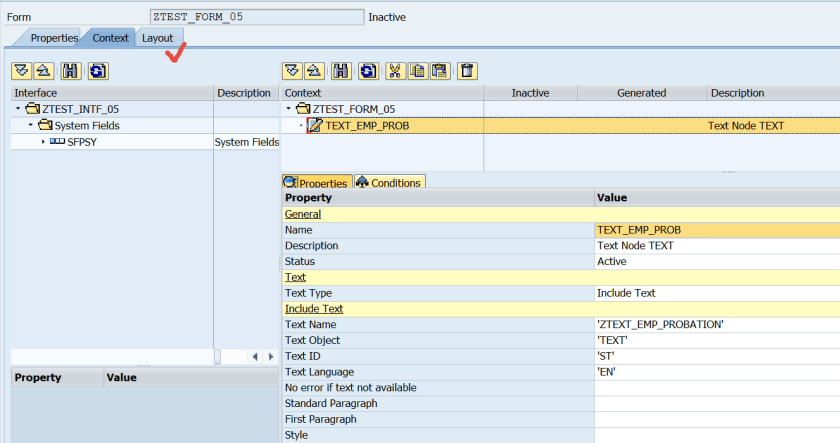

Provide a name, text type should be – Include Text, assign the text name ( get the text name form the F4 help ). Go to layout tab.

10

Create a text box , drag & drop on the design view.

11

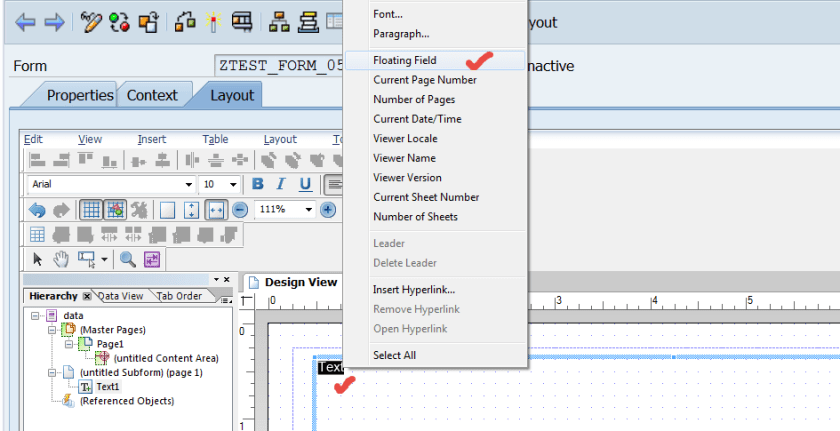

Extend [ height and width] the text box as per needed. Select the text and right click. Select the floating field option.

12

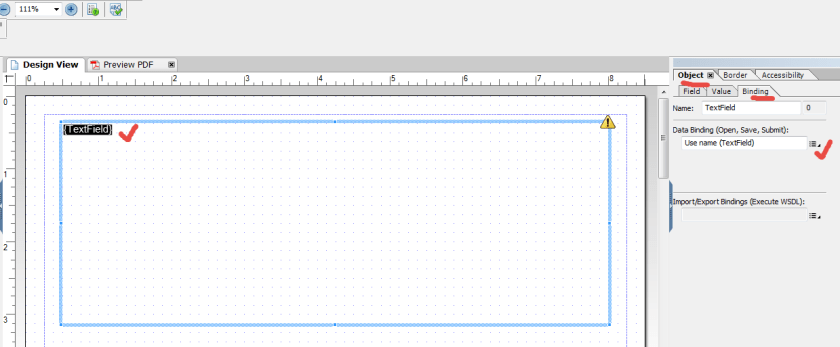

Now we have to bind the text field to the created include text field. So from data binding option, choose below name.

13

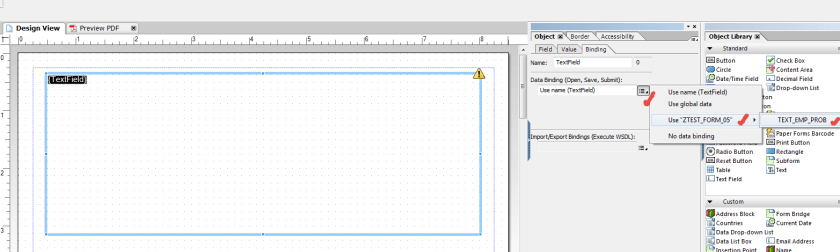

Select the name.

14

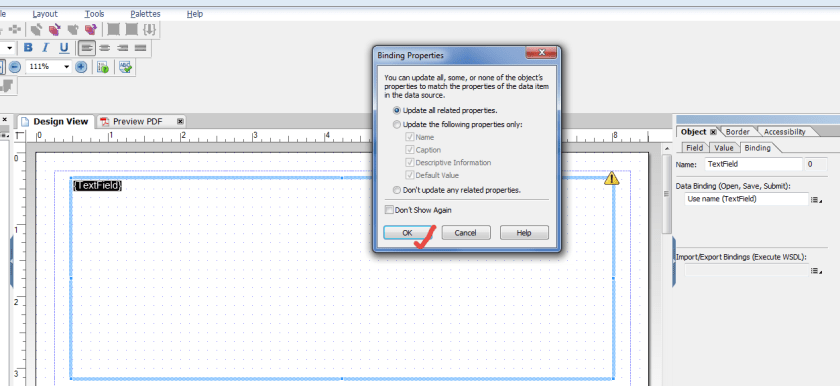

Select ok.

15

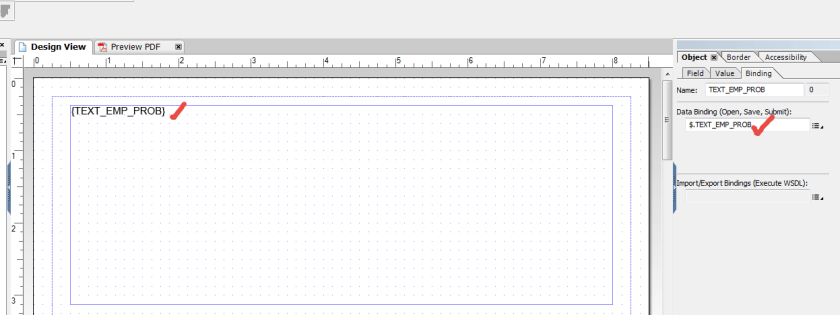

Mapping done.

16

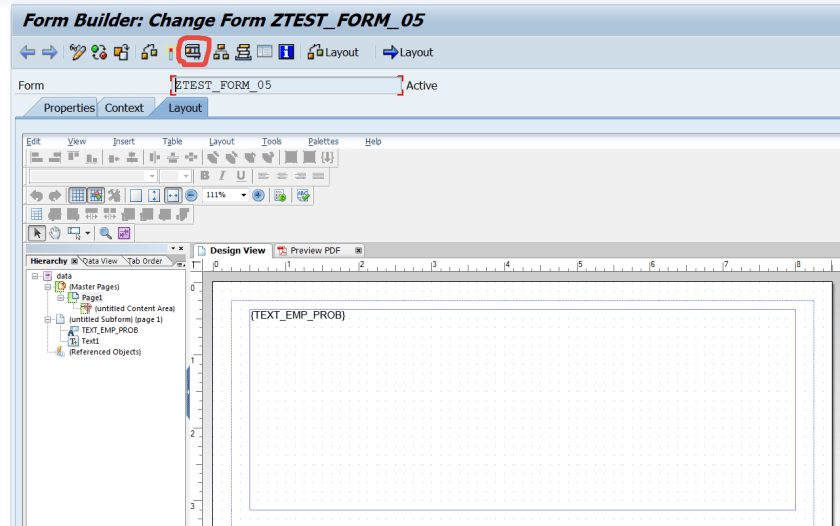

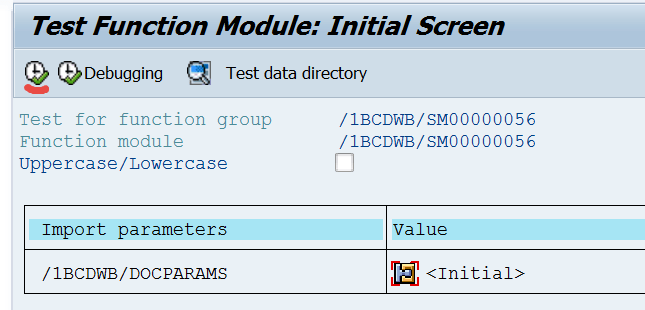

Activate the form and Test.

17

18

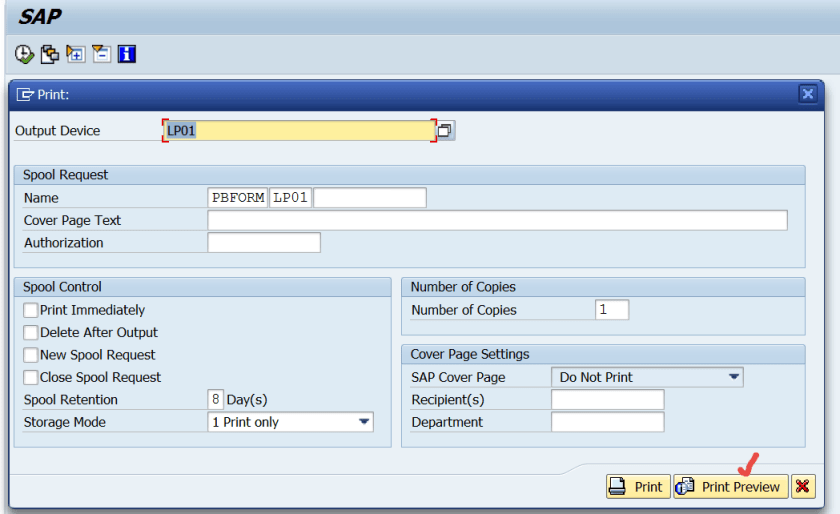

Select print preview.

19

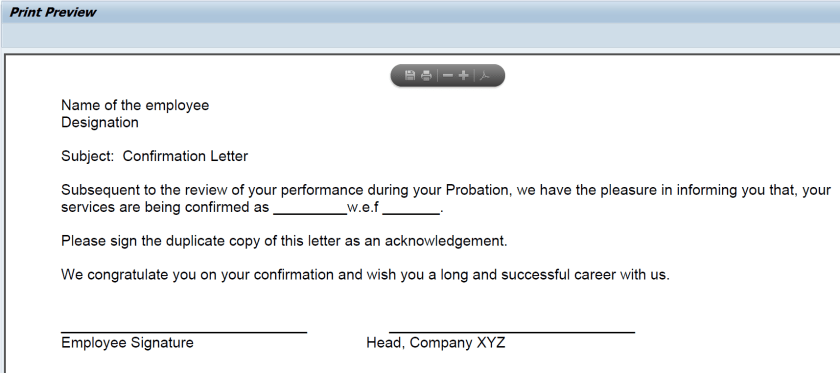

So here we have the form output.

20
