Using Text Modules in Adobe Form

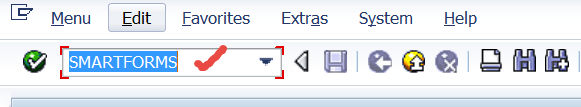

 Go to Tx- SMARTFORMS  .1

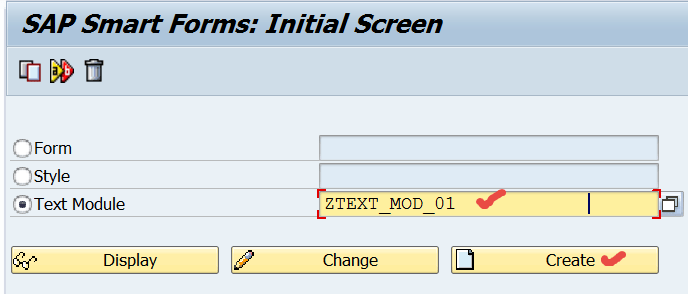

Select the Text Module radio button and provide a text module name and click on Create button.

2

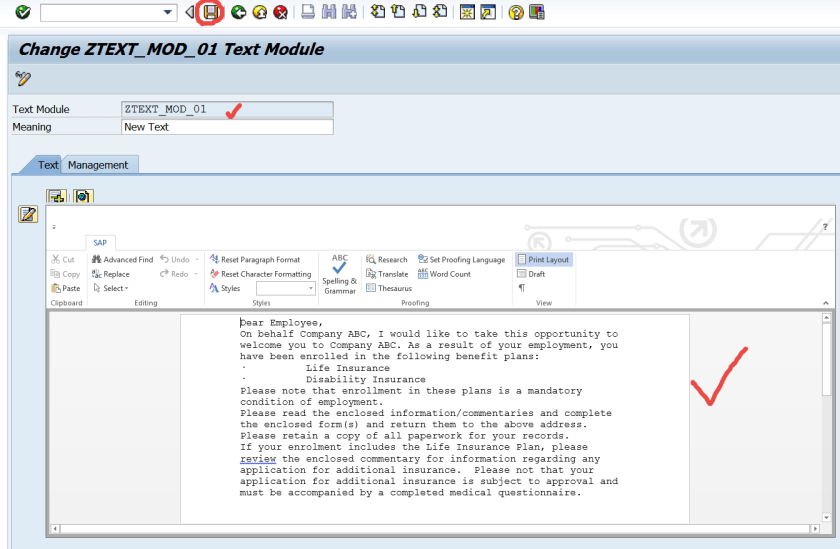

Provide the text and save it. Now creation of text module is done.

3

Go to Tx- SFP   .  Select Interface and provide a name and click on Create button.

4

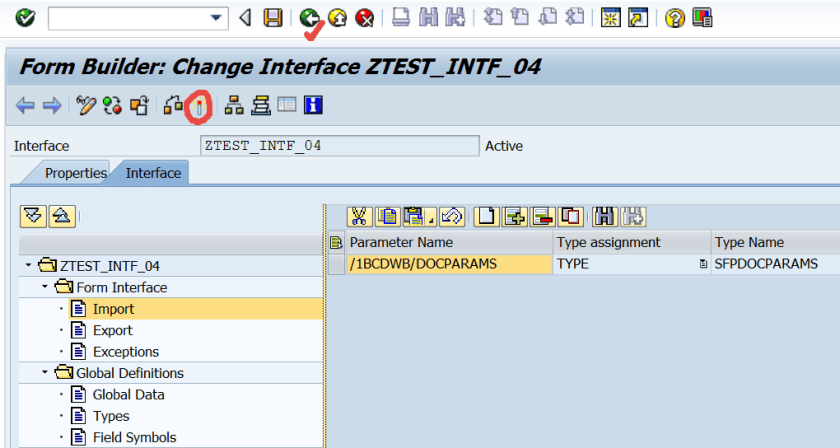

Don’t do any thing here. Activate the interface and go back.

5

Select the Form  , provide a name & select Create button.

6

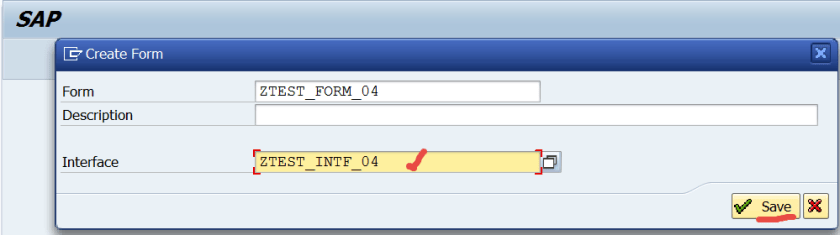

Assign the interface and Save.

7

On the Context node, right click and navigate to create a text.

8

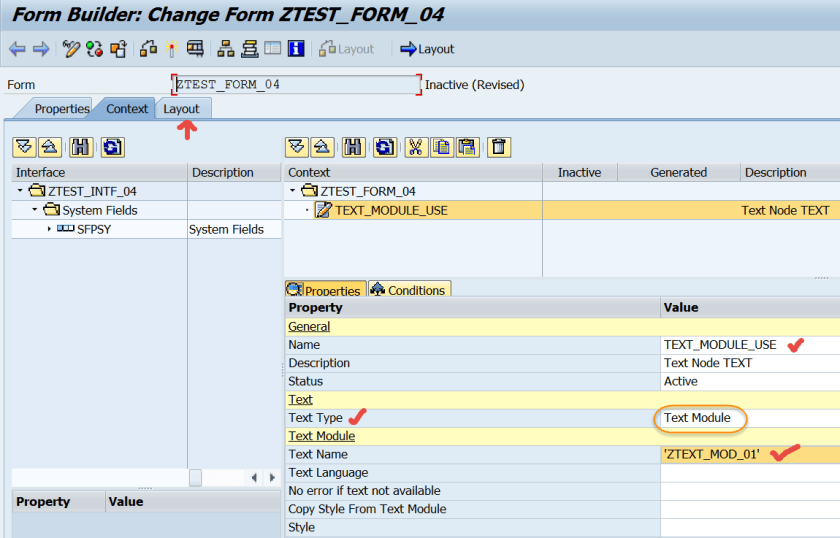

Provide a name, text type should be – Text module, assign the text module name ( get the text module name form the F4 help ). Go to layout tab.

9

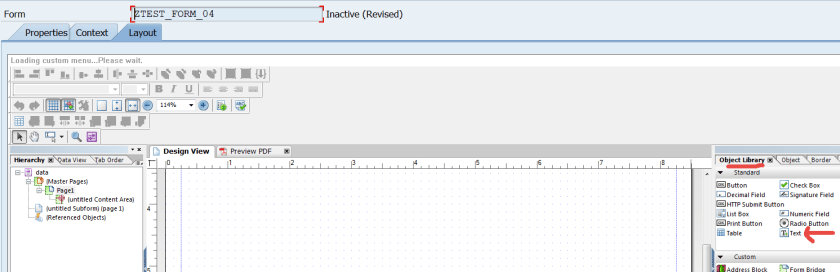

Create a text box , drag & drop on the design view.

10

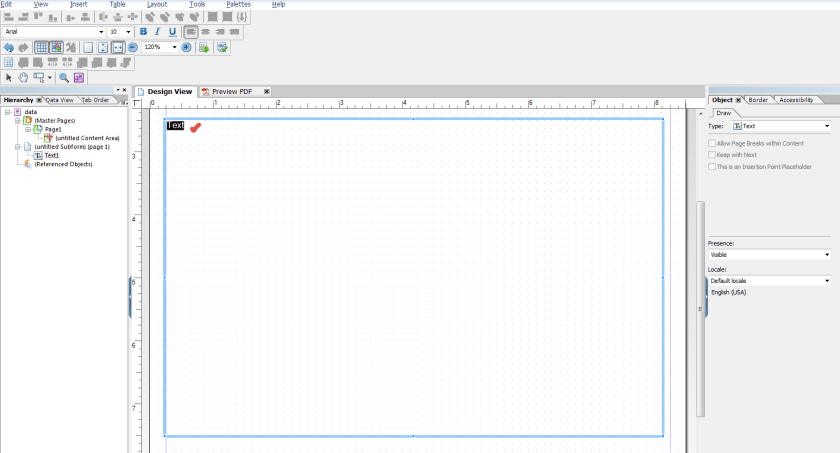

Extend [ height and width] the text box as per needed. Select the text and right click.

11

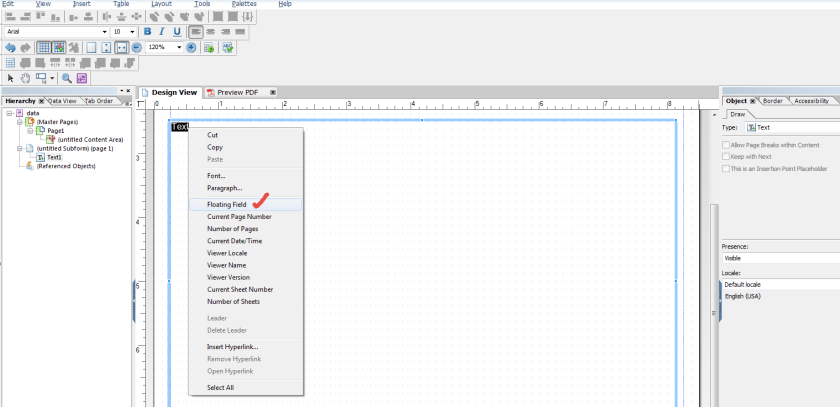

Select the floating field option.

12

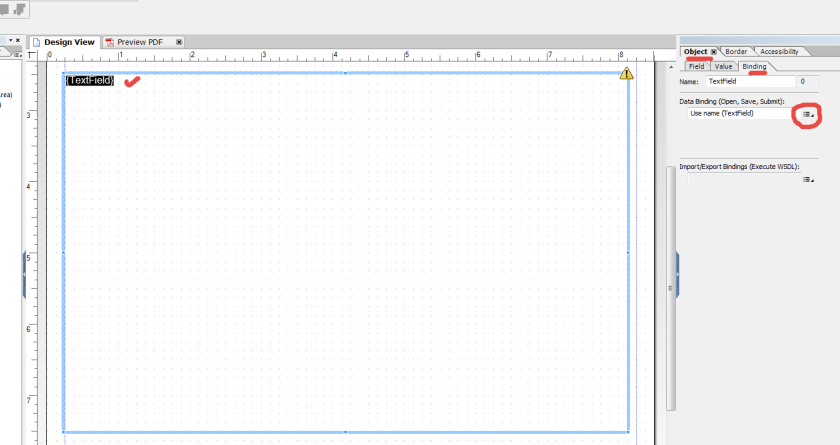

Now we have to bind the text field to the created text module field. So from data binding option, choose below name.

13

Select the name.

14

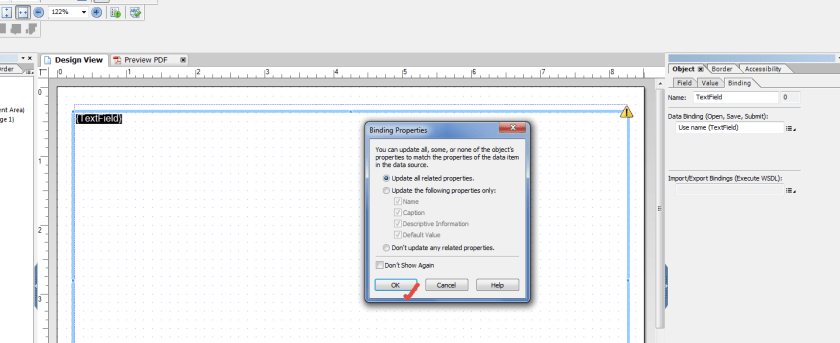

Select ok.

15

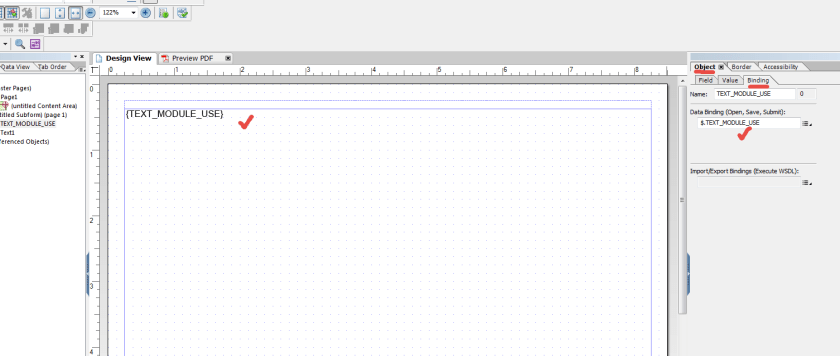

Mapping done.

16

Activate the form and Test.

17

Execute it.

18

Select print preview.

19

So here we have the form.

20
