qRFC with Outbound Queue & Inbound Queue between two different SAP systems – One LUW for Multiple QUEUE Calls




The below post shows how to club multiple QUEUE ( one queue having multiple FM calls) into a single LUW. After calling the TWO queues with their respective FMs , at the end Commit work happens so every thing is put into a single LUW. Execute the program.


REPORT  zoutqueue_inqueue.

DATA ls TYPE scarr.

*** first queue *****

CALL FUNCTION ‘TRFC_SET_QIN_PROPERTIES’

  EXPORTING

    qout_name = ‘OUT_QUEUE1’

    qin_name  = ‘INN_QUEUE1’.

clear ls.

ls-carrid = ‘XX’.

CALL FUNCTION ‘ZCREATE_FLIGHT_REC’

 IN BACKGROUND TASK

 “AS SEPARATE UNIT ” creates a separate luw

 DESTINATION ‘SRC_TO_TGT’

EXPORTING

  is = ls.


CALL FUNCTION ‘TRFC_SET_QIN_PROPERTIES’

  EXPORTING

    qout_name = ‘OUT_QUEUE1’

    qin_name  = ‘INN_QUEUE1’.


CLEAR ls.

ls-carrid = ‘XX’.

ls-carrname = ‘XX AIRLINE’.

CALL FUNCTION ‘ZUPDATE_FLIGHT_REC’

 IN BACKGROUND TASK

 “AS SEPARATE UNIT ” creates a separate luw

 DESTINATION ‘SRC_TO_TGT’

EXPORTING

  is = ls.


*** Second queue ***

CALL FUNCTION ‘TRFC_SET_QIN_PROPERTIES’

  EXPORTING

    qout_name = ‘OUT_QUEUE2’

    qin_name  = ‘INN_QUEUE2’.

clear ls.

ls-carrid = ‘YY’.

CALL FUNCTION ‘ZCREATE_FLIGHT_REC’

 IN BACKGROUND TASK

 “AS SEPARATE UNIT ” creates a separate luw

 DESTINATION ‘SRC_TO_TGT’

EXPORTING

  is = ls.


CALL FUNCTION ‘TRFC_SET_QIN_PROPERTIES’

  EXPORTING

    qout_name = ‘OUT_QUEUE2’

    qin_name  = ‘INN_QUEUE2’.


CLEAR ls.

ls-carrid = ‘YY’.

ls-carrname = ‘YY AIRLINE’.

CALL FUNCTION ‘ZUPDATE_FLIGHT_REC’

 IN BACKGROUND TASK

 “AS SEPARATE UNIT ” creates a separate luw

 DESTINATION ‘SRC_TO_TGT’

EXPORTING

  is = ls.


COMMIT WORK.

WRITE :/ ‘Check outbound queue in source system in Tx- SMQS’.

WRITE :/ ‘Check Inbound queue in target system in Tx- SMQR’.

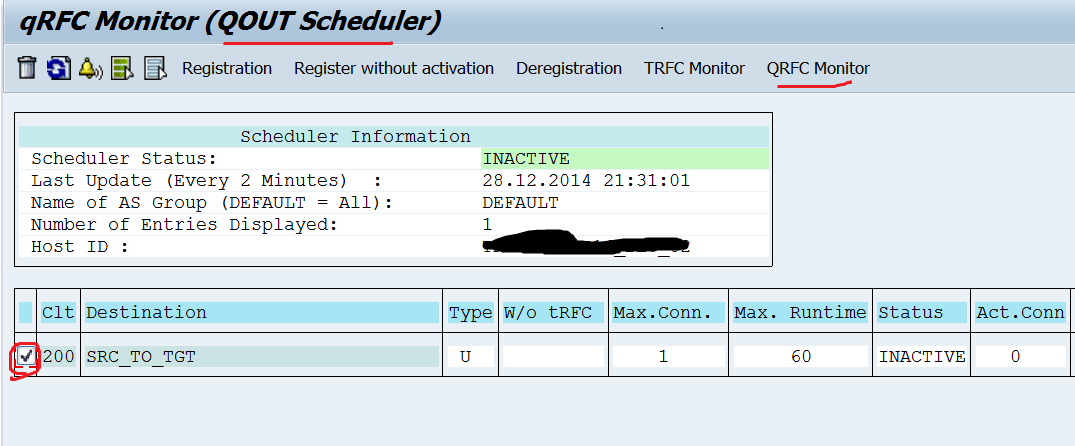

Step1. Source System: Tx- SMQR( out bound scheduler). Select the line and click on the qRFC Monitor button.

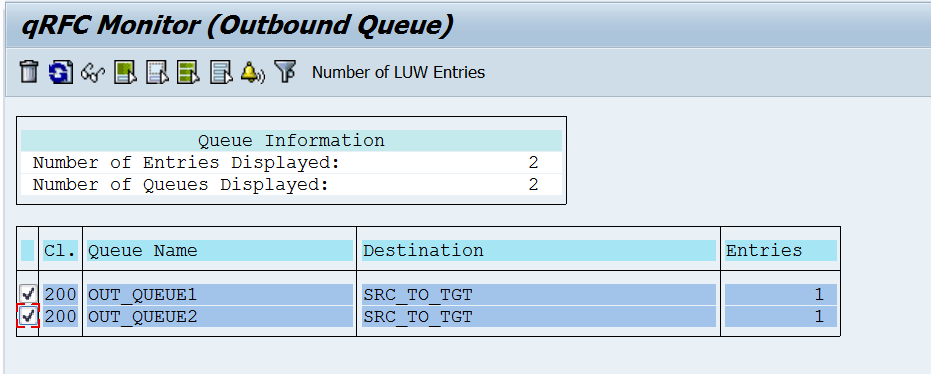

Step2. Source System: Select both the out bound queues and double click on it.

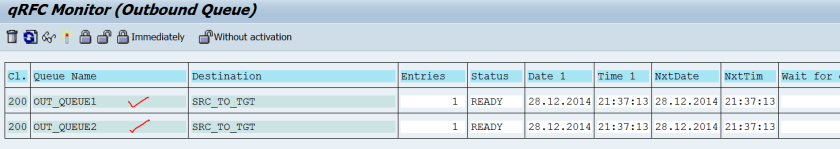

Step3. Source System: Double click on it.

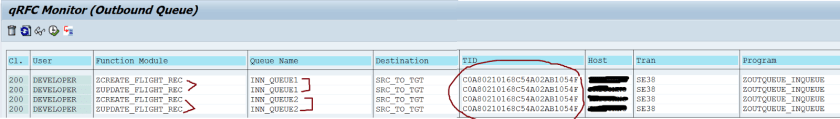

Step4. Source System: So here we have a single TID for all the FM calls that  belongs to two different Queues.  process the out bound queue.

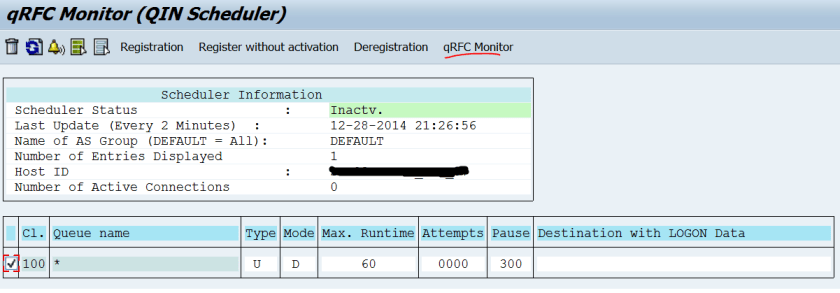

Step5. Target System: Tx- SMQS( Inbound Scheduler): Select the line and click on the qRFC monitor button.

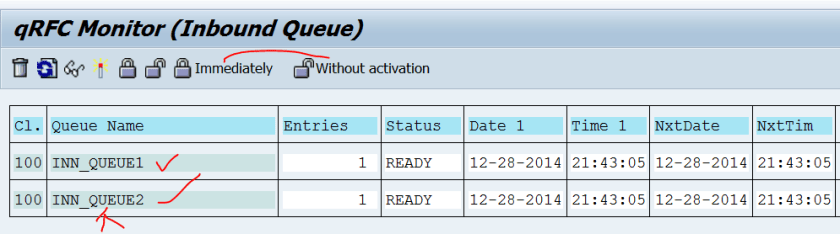

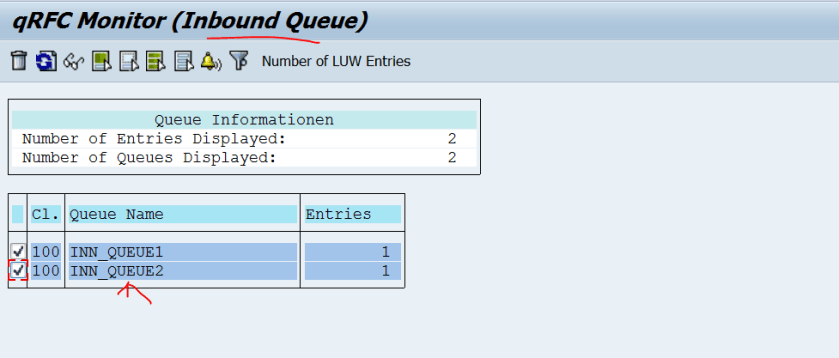

Step6. Target System: Select both the inbound queues. Double click on it.


Step7. Target System: Double click on the queue name.

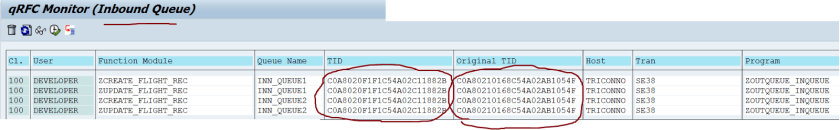

Step8. Target System:: So here we have a single technical ID for all the FM calls that belongs to two different queues.


 See the next post how each queue FM calls are assigned to separated LUWs
