qRFC with Outbound Queue & Inbound Queue between two different SAP systems – One LUW per Queue Call




After calling the RFCs under a queue, the next commit work statement closes the current LUW and opens a new one. Here we have the report.. Execute it.



DATA ls TYPE scarr.

*** first queue *****

CALL FUNCTION ‘TRFC_SET_QIN_PROPERTIES’

  EXPORTING

    qout_name = ‘OUT_QUEUE1’

    qin_name  = ‘INN_QUEUE1’.

clear ls.

ls-carrid = ‘XX’.

CALL FUNCTION ‘ZCREATE_FLIGHT_REC’

 IN BACKGROUND TASK

 “AS SEPARATE UNIT ” creates a separate luw

 DESTINATION ‘SRC_TO_TGT’

EXPORTING

  is = ls.


CALL FUNCTION ‘TRFC_SET_QIN_PROPERTIES’

  EXPORTING

    qout_name = ‘OUT_QUEUE1’

    qin_name  = ‘INN_QUEUE1’.


CLEAR ls.

ls-carrid = ‘XX’.

ls-carrname = ‘XX AIRLINE’.

CALL FUNCTION ‘ZUPDATE_FLIGHT_REC’

 IN BACKGROUND TASK

 “AS SEPARATE UNIT ” creates a separate luw

 DESTINATION ‘SRC_TO_TGT’

EXPORTING

  is = ls.

COMMIT WORK. ” End of first LUW


*** Second queue ***

CALL FUNCTION ‘TRFC_SET_QIN_PROPERTIES’

  EXPORTING

    qout_name = ‘OUT_QUEUE2’

    qin_name  = ‘INN_QUEUE2’.

clear ls.

ls-carrid = ‘YY’.

CALL FUNCTION ‘ZCREATE_FLIGHT_REC’

 IN BACKGROUND TASK

 “AS SEPARATE UNIT ” creates a separate luw

 DESTINATION ‘SRC_TO_TGT’

EXPORTING

  is = ls.


CALL FUNCTION ‘TRFC_SET_QIN_PROPERTIES’

  EXPORTING

    qout_name = ‘OUT_QUEUE2’

    qin_name  = ‘INN_QUEUE2’.


CLEAR ls.

ls-carrid = ‘YY’.

ls-carrname = ‘YY AIRLINE’.

CALL FUNCTION ‘ZUPDATE_FLIGHT_REC’

 IN BACKGROUND TASK

 “AS SEPARATE UNIT ” creates a separate luw

 DESTINATION ‘SRC_TO_TGT’

EXPORTING

  is = ls.


COMMIT WORK. ” end of second LUW

WRITE :/ ‘Check outbound queues in source system in Tx- SMQS’.

WRITE :/ ‘Check Inbound queues in target system in Tx- SMQR’.

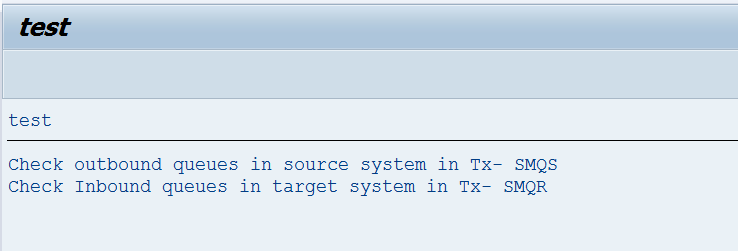

Step2. Here we have the report output.

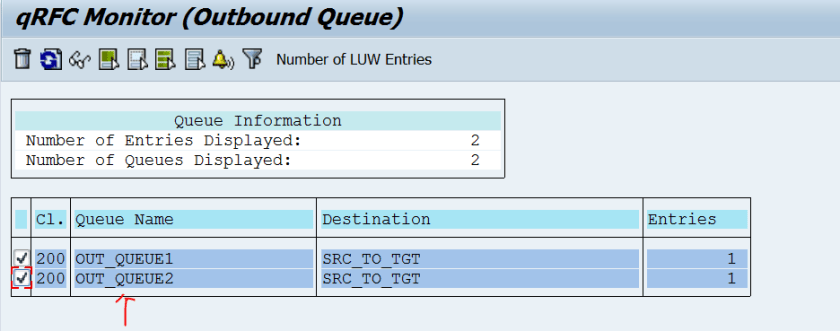

 Step3. Source System: Tx- SMQR( Out Bound Scheduler). Select both the queues and double click on it.

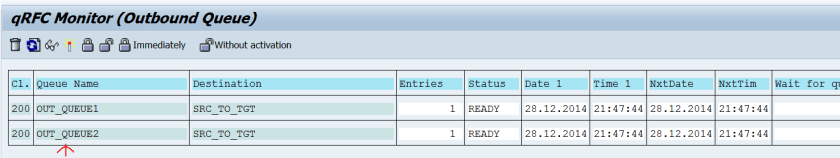

Step4. Source System: Double click on the queue name.

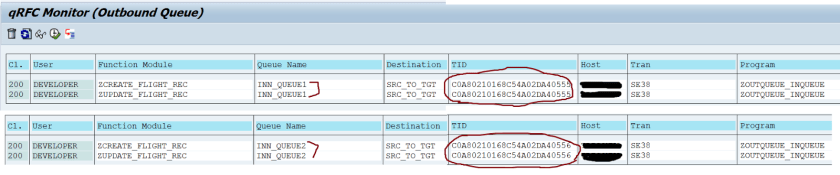

Step5. Source System: So here we have two LUWs for two Queues. Process the queues.

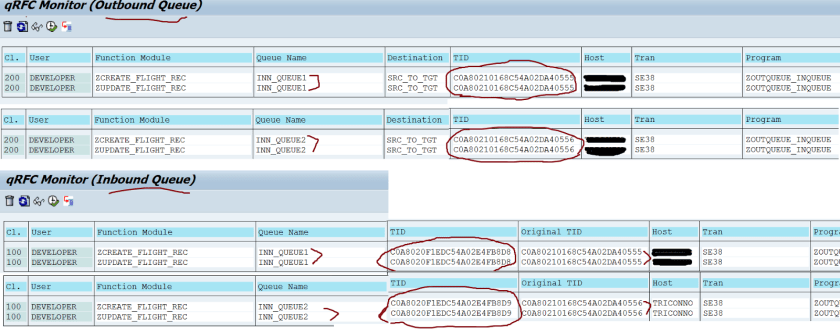

Step6. Target System: Tx- SMQS( Inbound Scheduler). The snap shot of comparison of the TIDs.
