Gateway Project PDF FIle

The below post shows the gateway project data model to get the PDF file data by implementing the GET_STREAM method. The aim is to pass the Smartform Name as an attribute of the entity set and get the PDF file.

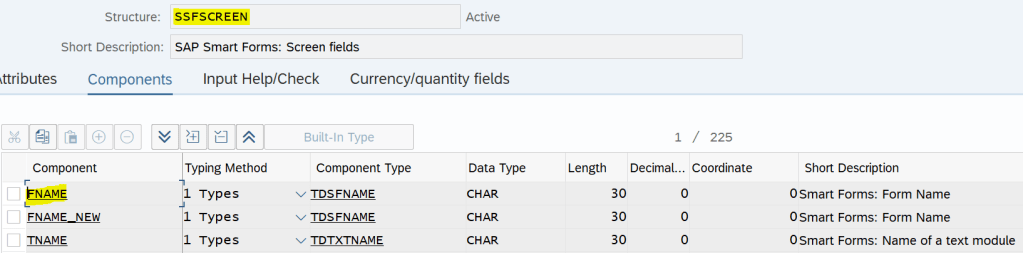

Below structure to be sued as the source of our project data model.

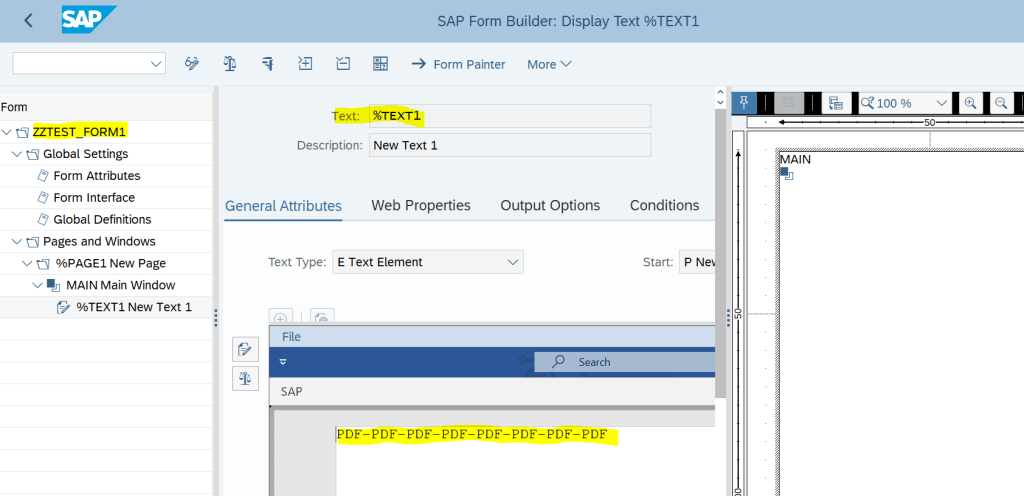

Below are two different smartforms- Very simple forms for the same of demo.

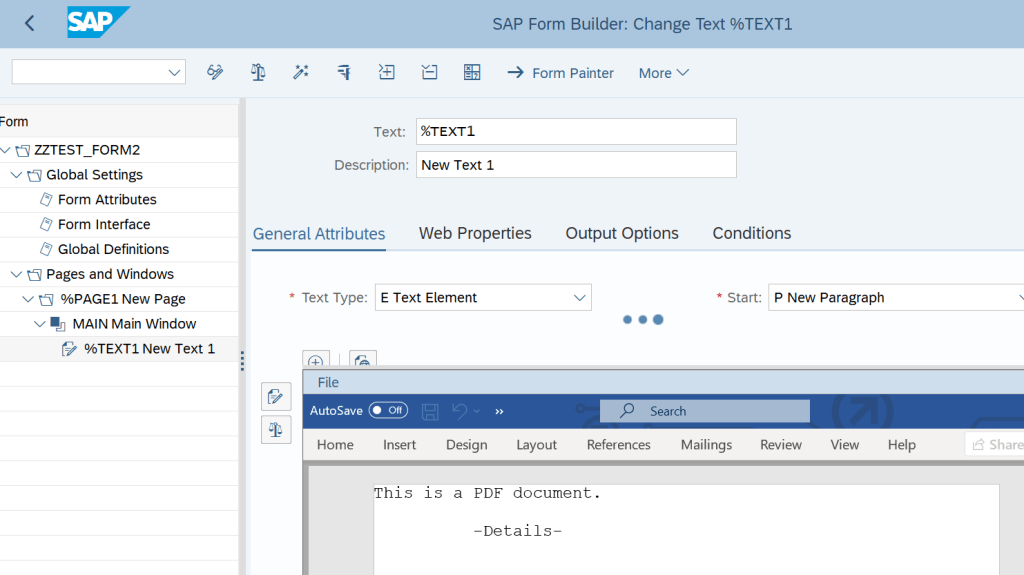

Another Smartform.

The gateway project-

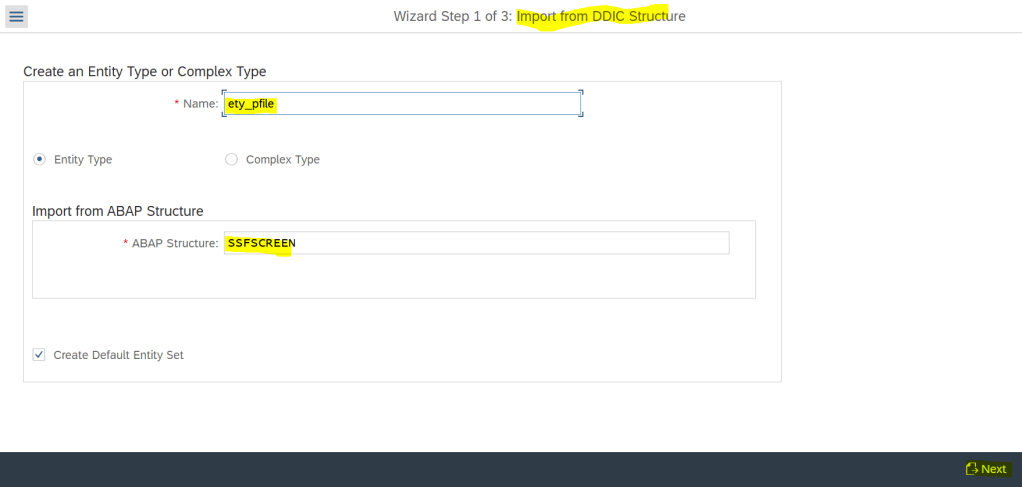

Create data model- by importing from DDIC structure. Provide the structure and entity type name.

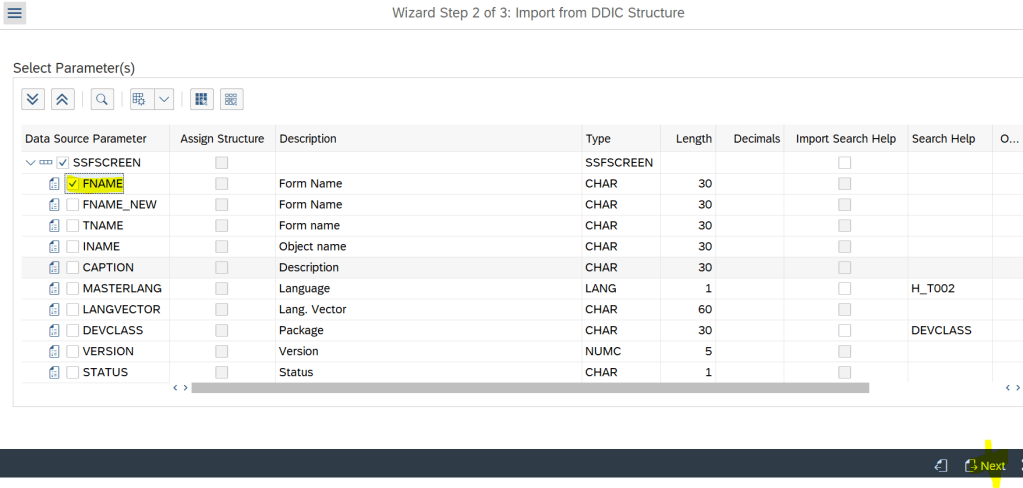

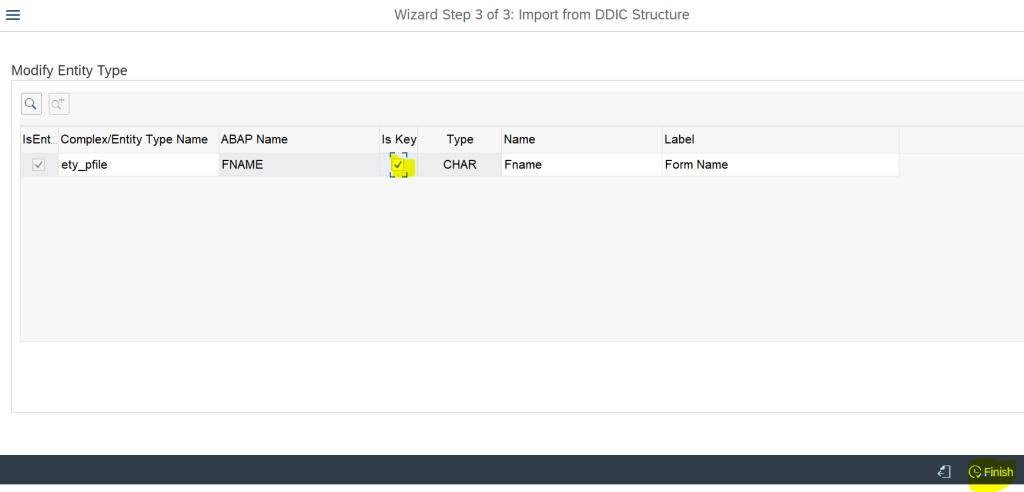

Choose only one attribute to be used as the key input(smartform name).

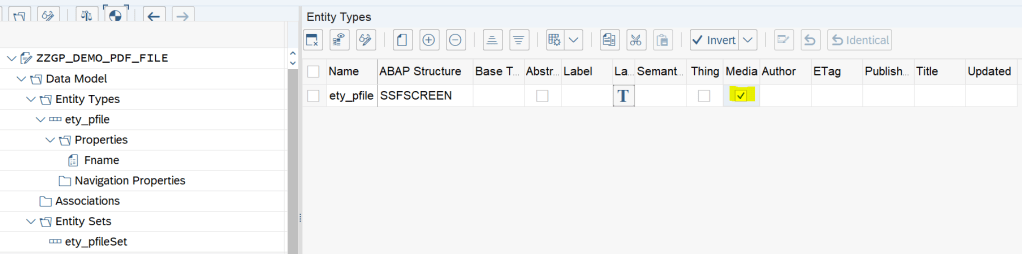

Enable the Media flag for the entity type.

Generate the artifacts and register the service in the gateway service builder.

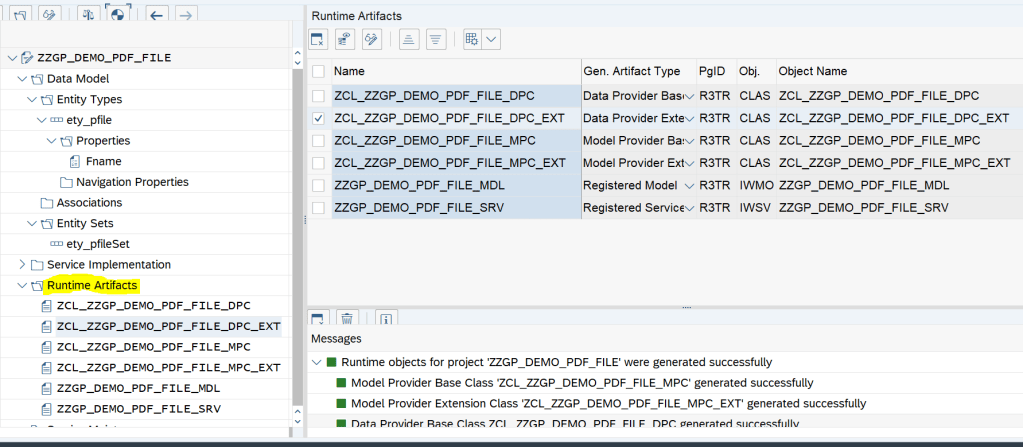

The Runtime artifacts are-

As we already registered the service( /IWFND/MAINT_SERVICE) ,Now test the service in the gateway client(Tx- /IWFND/GW_CLIENT ). The status looks good.

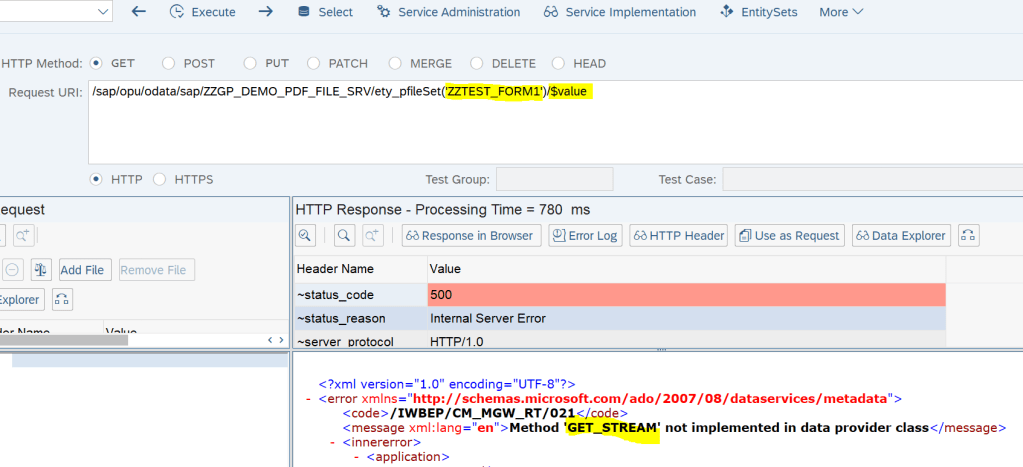

Lets provide the entity set name and pass the smartform name as the key and use addition- $value. As we can see it goes to the GET_STREAM method but it is not yet implemented.

If we see the DPC ent class – Types

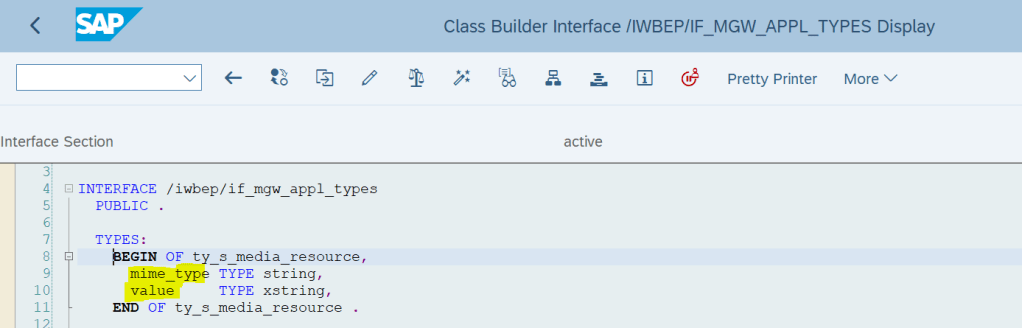

Here we have a media source type and then navigate to the declaration to see it components.

So we have to fill two fields like the mime type and the XSTING value of the PDF inside the GET_STREAM method.

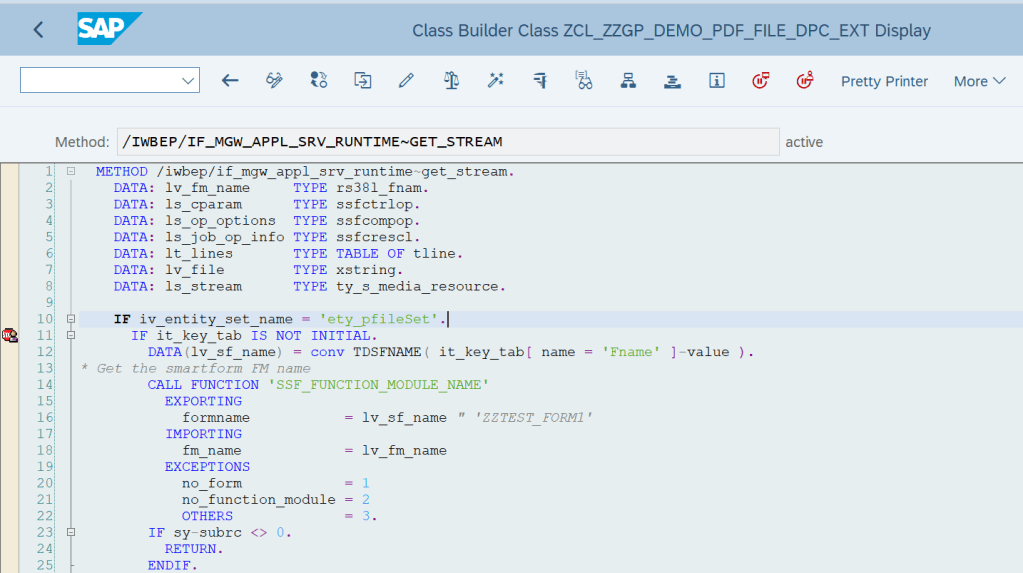

Let’s implement the code inside the GET_STREAM method.


METHOD /iwbep/if_mgw_appl_srv_runtime~get_stream.
DATA: lv_fm_name TYPE rs38l_fnam.
DATA: ls_cparam TYPE ssfctrlop.
DATA: ls_op_options TYPE ssfcompop.
DATA: ls_job_op_info TYPE ssfcrescl.
DATA: lt_lines TYPE TABLE OF tline.
DATA: lv_file TYPE xstring.
DATA: ls_stream TYPE ty_s_media_resource.

IF iv_entity_set_name = 'ety_pfileSet'.
  IF it_key_tab IS NOT INITIAL.
    DATA(lv_sf_name) = conv TDSFNAME( it_key_tab[ name = 'Fname' ]-value ).
  • Get the smartform FM name
    formname = lv_sf_name ” ‘ZZTEST_FORM1’
    fm_name = lv_fm_name
    no_form = 1
    no_function_module = 2
    OTHERS = 3.
    IF sy-subrc <> 0.
    ENDIF. ls_cparam-no_dialog = 'X'. ls_cparam-preview = ' '. ls_cparam-getotf = 'X'. ls_op_options-tddest = 'LP01'.

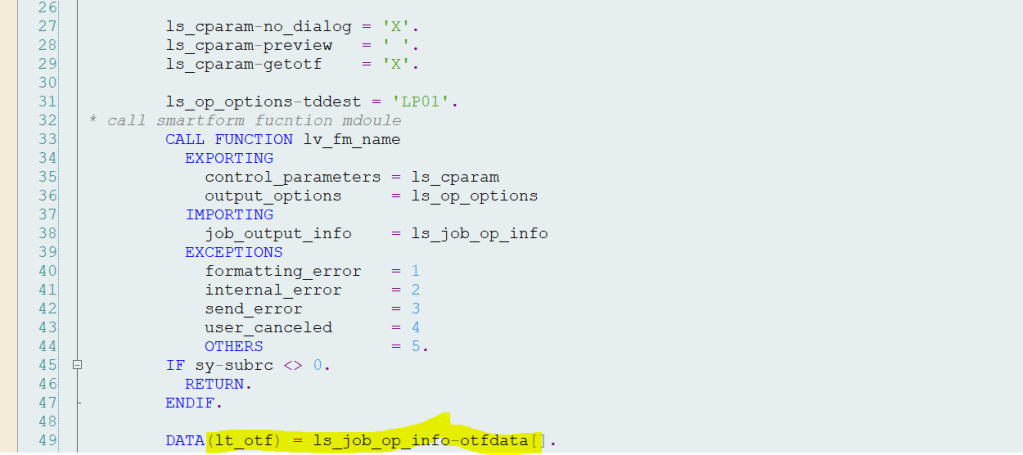

  • call smartform fucntion mdoule
    CALL FUNCTION lv_fm_name
    control_parameters = ls_cparam
    output_options = ls_op_options
    job_output_info = ls_job_op_info
    formatting_error = 1
    internal_error = 2
    send_error = 3
    user_canceled = 4
    OTHERS = 5.
    IF sy-subrc <> 0.
    ENDIF. DATA(lt_otf) = ls_job_op_info-otfdata[].
  • Convert OTF data to PDF –
    format = ‘PDF’
    bin_file = lv_file
    otf = lt_otf
    lines = lt_lines
    err_max_linewidth = 1
    err_format = 2
    err_conv_not_possible = 3
    err_bad_otf = 4
    OTHERS = 5.
    IF sy-subrc <> 0.

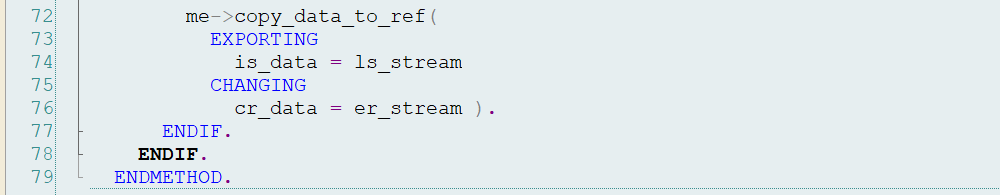

    ENDIF. ls_stream-mime_type = 'application/pdf'. ls_stream-value = lv_file. me->copy_data_to_ref( EXPORTING is_data = ls_stream CHANGING cr_data = er_stream ). ENDIF.

Test-1 Provide the Smartform name and execute

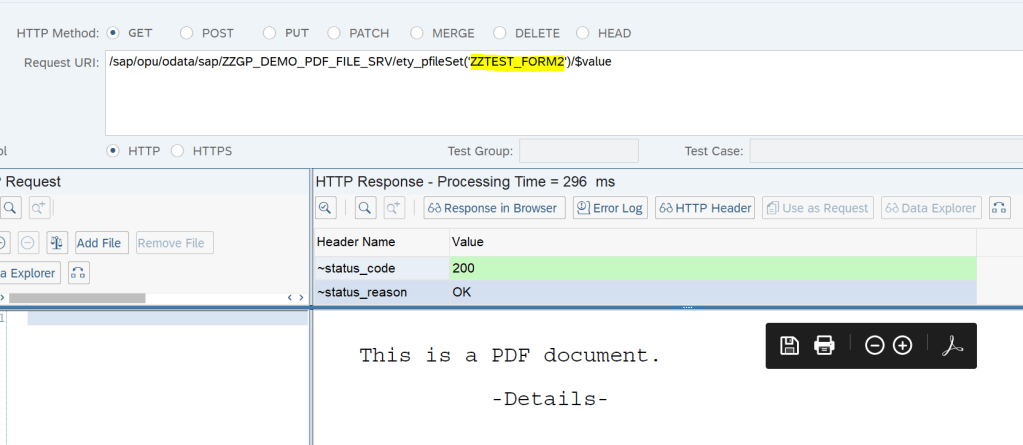

Test-2 Provide another Smartform name and execute

We get the different PDFs based on the smartform input.
