Fiori Element- CDS View with BOPF CRUD(3)

light111Displaying Status Text from the Domain Fixed Value Text


This post is a continuation of the fiori element app described in the post  Fiori Elemnet- CDS View with BOPF CRUD(2) and   Fiori Element- CDS View with BOPF CRUD.

So far we display the order header status as the domain value which is 1 character but for the end user it’s not that meaningful but here we will try to show the relevant domain value text in stead of  domain fixed value. Let’s start-

The Domain fixed value and the language dependent text are stored in DD07L and DD07T tables. We can build a CDS view on these two tables and do the join.

But certainly we already have a database  view DD07V is already available that joins these two tables. So now we have just create a CDS view on the data base view DD07V.

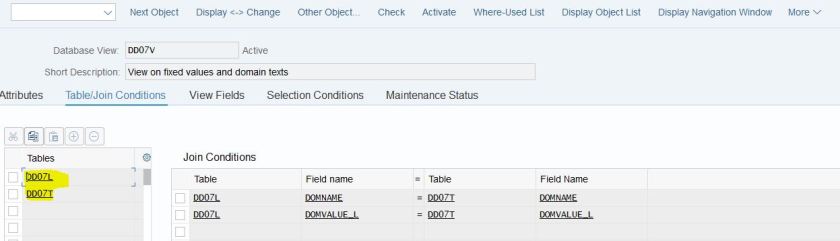

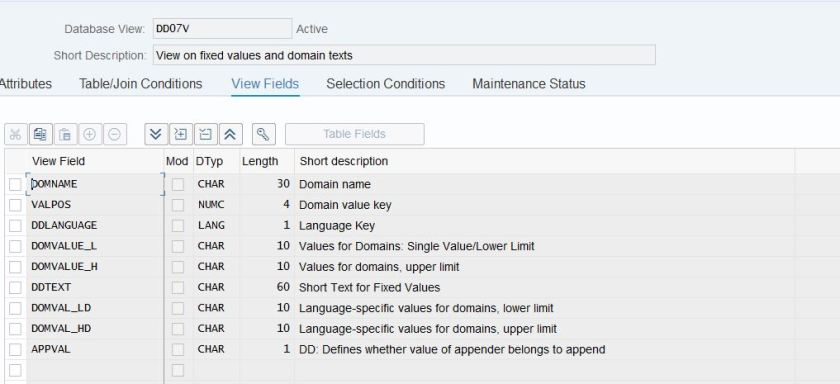

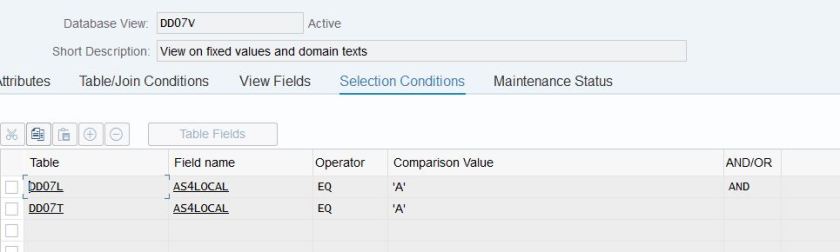

Let’s have a look at the database view(in SE11)-

123

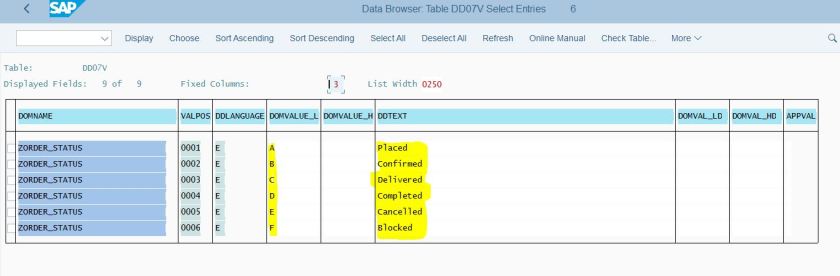

Display the content for the domain-

4

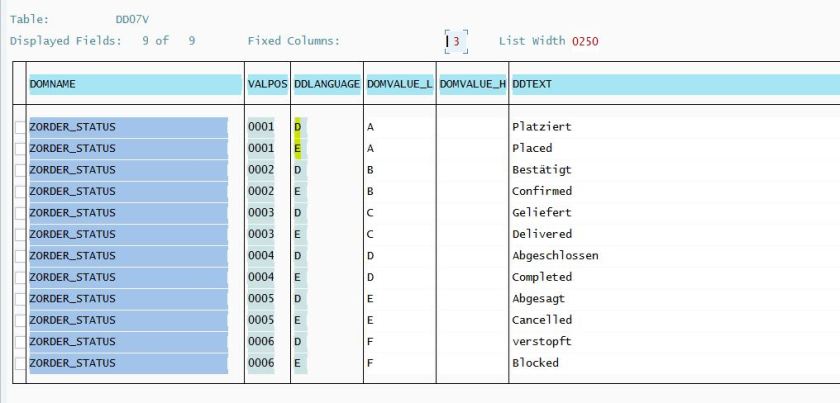

Now i have maintained DE- language for the domain values also.

5

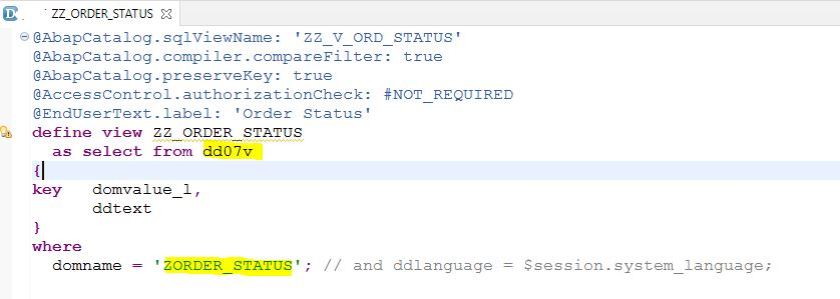

Create below CDS view on the data base view-

6

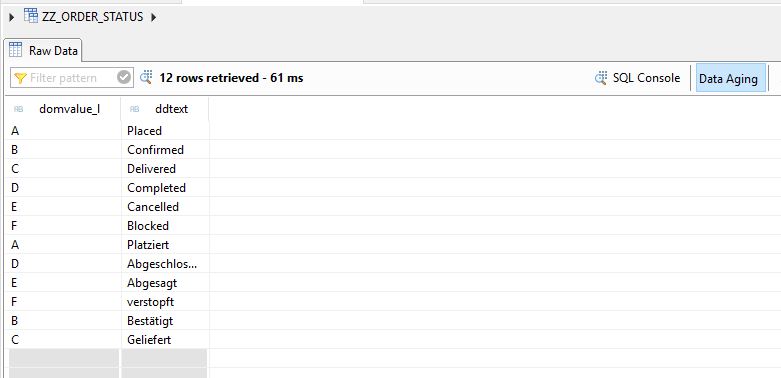

Data Preview-  But we need to get only lang dependent texts.

7

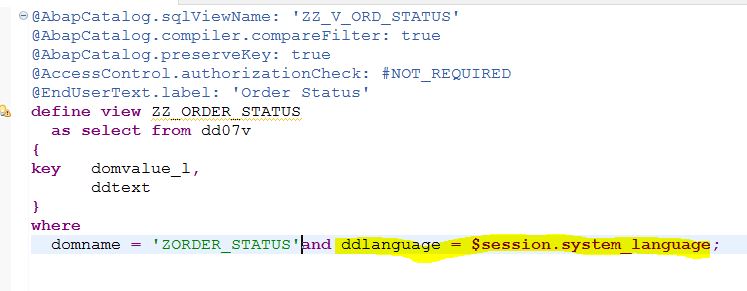

Add the lang join condition.

8

CDS View Data Preview-

9

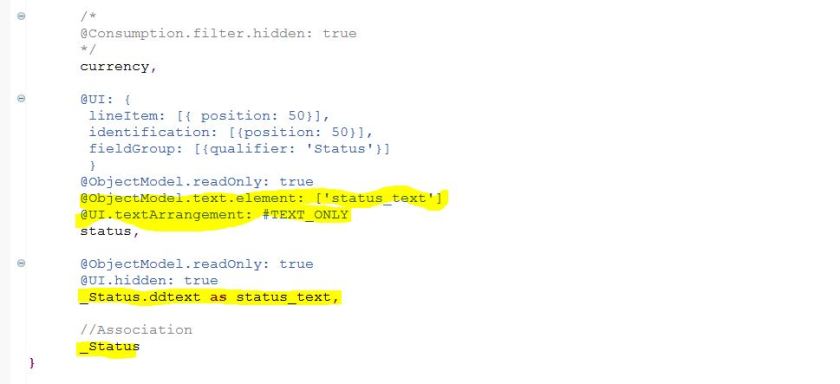

Let’s open our list Report CDS view and make association to the above status text cds view and also expose the fields in the list cds view as shown below.

1011


@AbapCatalog.sqlViewName: ‘ZZ_L_ORDER_HDR’
@AbapCatalog.compiler.compareFilter: true
@AbapCatalog.preserveKey: true
@AccessControl.authorizationCheck: #NOT_REQUIRED
@EndUserText.label: ‘Oder’

@ObjectModel:{
semanticKey: [‘guid’],
transactionalProcessingDelegated: true,
// enable crud
createEnabled: true,
updateEnabled: true,
deleteEnabled: true
}

@UI.headerInfo: {typeName: ‘Order’, typeNamePlural: ‘Orders’, title: {value: ‘id’}}

@OData.publish: true

define view ZZ_ORDER_HDR_LIST
as select from ZZ_ORDER_HDR_TRANS
association [1..1] to ZZ_ORDER_STATUS as _Status on $projection.status = _Status.domvalue_l
{

@UI: {
lineItem: [{ type: #FOR_ACTION, position: 1,
dataAction: ‘BOPF:SET_STATUS_COMPLETE’,
label: ‘Set Complete’ }],
identification: [{type: #FOR_ACTION,
position: 1,
dataAction: ‘BOPF:SET_STATUS_COMPLETE’,
label: ‘Set Complete’ }]
}
//ZZ_ORDER_HDR_TRANS
@UI.hidden: true
key guid,

@UI: {
lineItem: [{ position: 10}],
identification: [{position: 10}],
fieldGroup: [{qualifier: ‘Basic’}]
}
@ObjectModel.mandatory: true
id,

@UI: {
lineItem: [{ position: 20}],
identification: [{position: 20}],
fieldGroup: [{qualifier: ‘Basic’}]
}
order_date,

@UI: {
lineItem: [{ position: 30}],
identification: [{position: 30}],
fieldGroup: [{qualifier: ‘Price’}]
}
@Semantics.amount.currencyCode: ‘Currency’
@Consumption.filter.hidden: true
price,

/
@Consumption.filter.hidden: true
/
currency,

@UI: {
lineItem: [{ position: 50}],
identification: [{position: 50}],
fieldGroup: [{qualifier: ‘Status’}]
}
@ObjectModel.readOnly: true
@ObjectModel.text.element: [‘status_text’]
@UI.textArrangement: #TEXT_ONLY
status,

@ObjectModel.readOnly: true
@UI.hidden: true
_Status.ddtext as status_text,

//Association
_Status
}

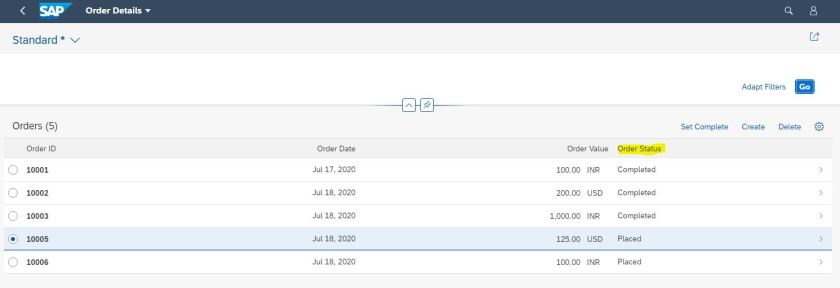

Run the app-[BY default Chrome lang-EN ]

Now we see the domain fixed value text appears instead of the domain fixed values.

12

Object Page-

13

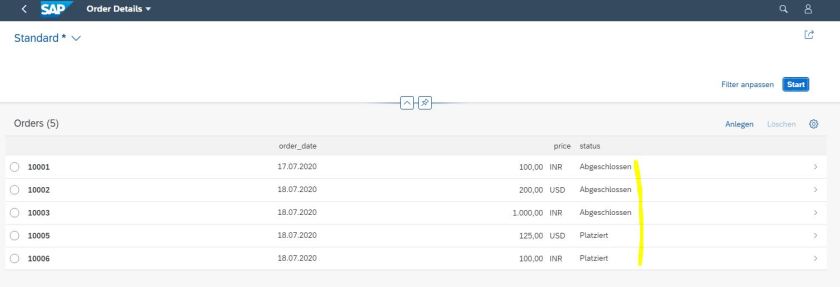

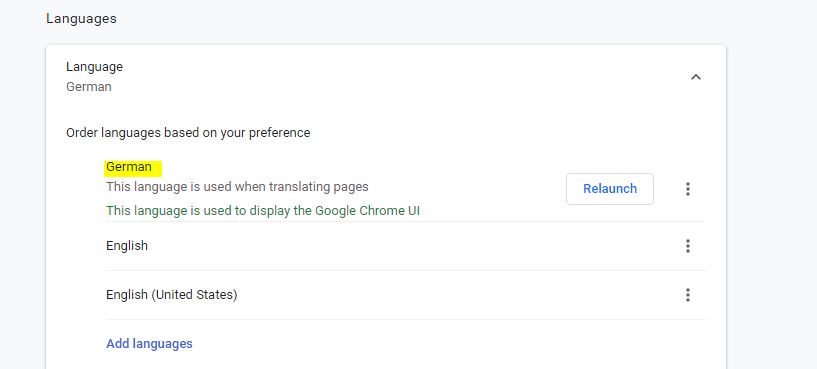

Change the browser language to DE and run the app again.

14

Now the domain fixed value text appears in its relevant lang dependent texts.

15
