Prepaid & Postpaid Payment Group in Hybris Billing

light111Prepaid & Postpaid Payment Group in Hybris Billing


Usually the product used in provider order defines whether it is a prepaid product or postpaid product. The product payment group which is assigned to the product defines prepaid or postpaid.

If the product payment group is  postpaid , the in the CCM[ cross catalog mapping] only charge plan is assigned but if it is a prepaid, then in CCM both charge plan and refill plan is assigned.

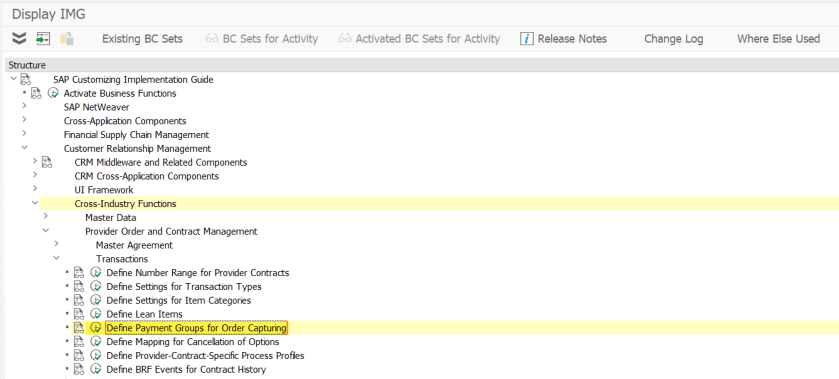

In CRM, below path used to define payment group.

5

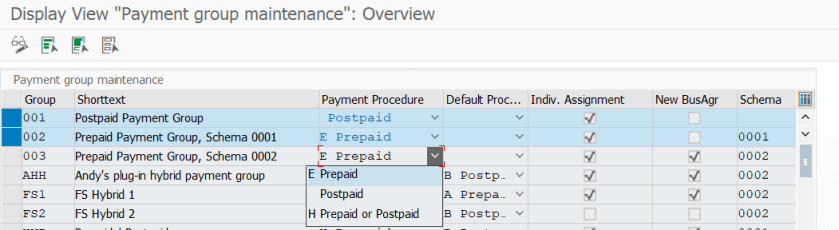

The Group- Payment Procedure can be prepaid/postpaid. The associated schema defines further rules in prepaid case..

6

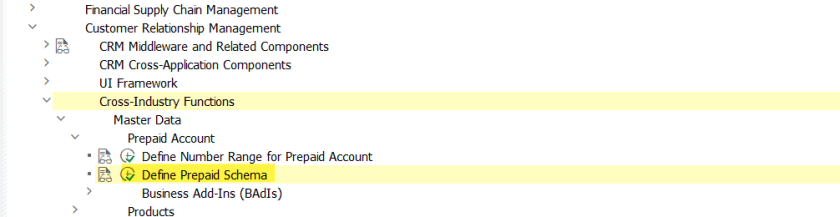

Below path can be used to define prepaid schema.

7

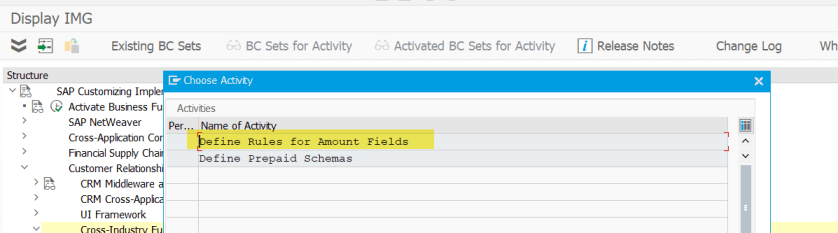

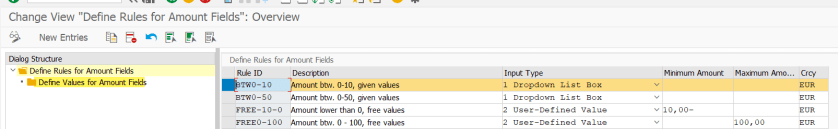

Choose Rules for amount fields.

8



10

11


Choose- Define Prepaid schema.

9

12

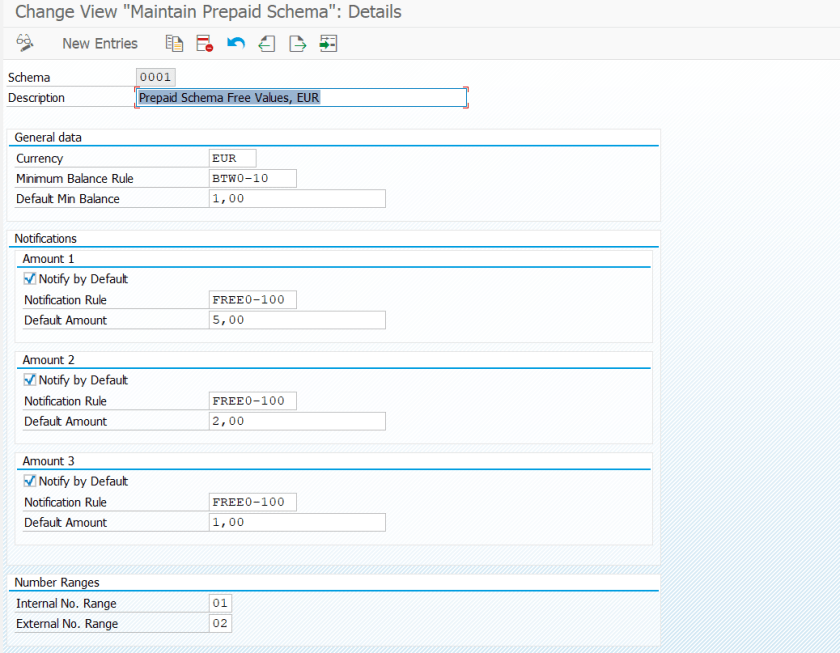

In schema the prepaid rules assigned.

13


Now in CRM , create a Rate Plan Service. and assign a payment group of type prepaid.

3

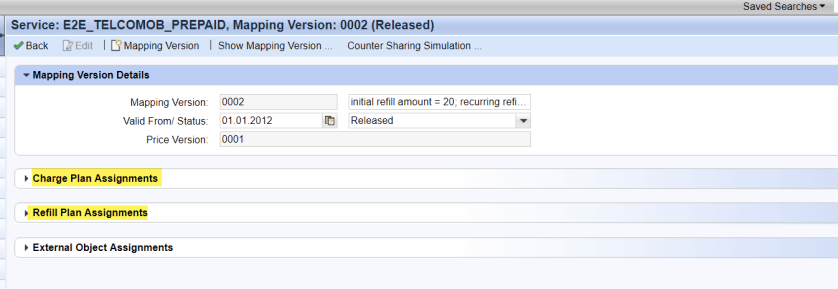

In the CCM – Mapping version , both Charge Plan and Refill Plan assignment section appears.

1


create a Rate Plan Service. and assign a payment group of type postpaid.

4

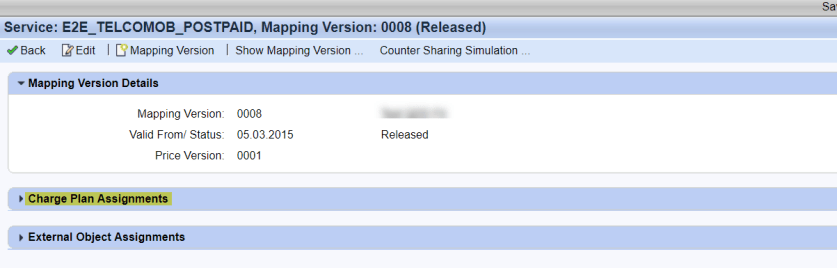

Only Charge Plan assignment is available.

2
