AREA MENU

light111Area Menu Create

We have some demo programs like below:  ZDEMO1, ZDEMO2 ,….., ZDEMO5

14

13

Tcodes created for each report that we can be found from TSTC table.

1


To create Area Menu use Tx- SE43

2

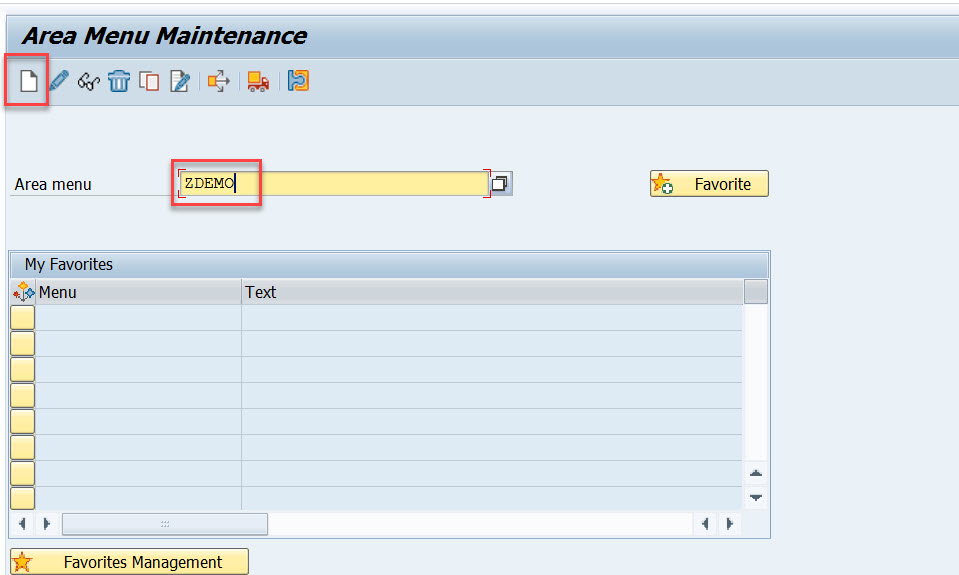

Provide area menu Name and select create button.

3

Provide menu description and select Create Area Menu button.

4

Select the description and click on the button to create node below level.

5

Provide text and transaction code names for two and in the third just provide text  only so that in the next step we can add some nodes under  this. Select Continue.

6

Select the Line text and  select the highlighted button to add nodes under this.

7

Add the appropriate text and provide transaction code names and finally select continue.

8

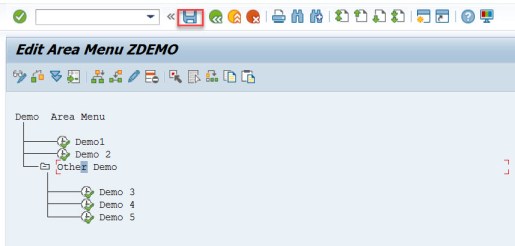

Save area menu.

9

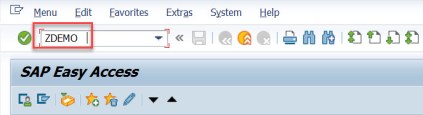

Now in the command box provide the area menu name and execute.

10

It appears under the sap menu. Double click on may node to execute the relevant transaction code.

11

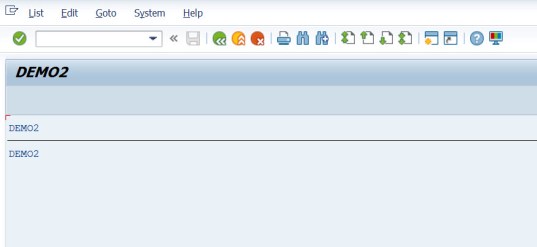

Here we have the o/p.

12
