SAP HANA Multi-tenant Database Containers(MDC)

light11What is SAP HANA Multi-tenant Database Container?







Down the history of HANA:

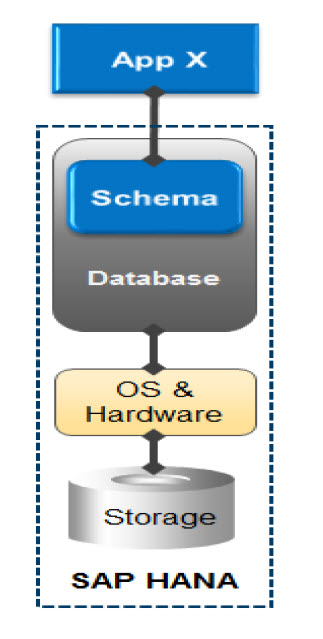

  1. One DMBS, One database, One Schema, One Application

         ( Schema is a data base container for database objects )

1

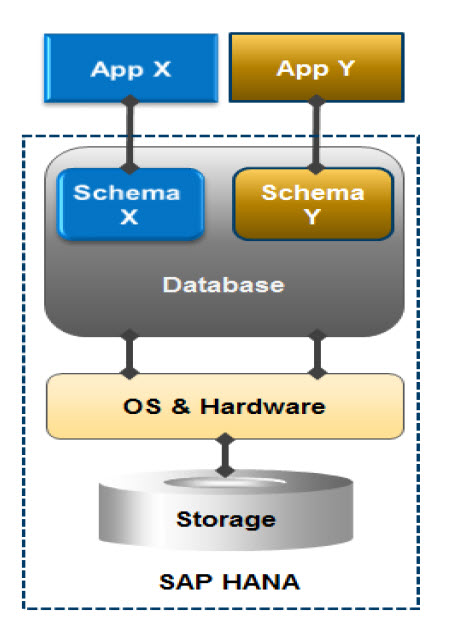

2. One DMBS, One database, Multiple Schemas, Multiple Applications

2


3. Multiple DMBS with one database for each, Multiple Schemas, Multiple Applications

3

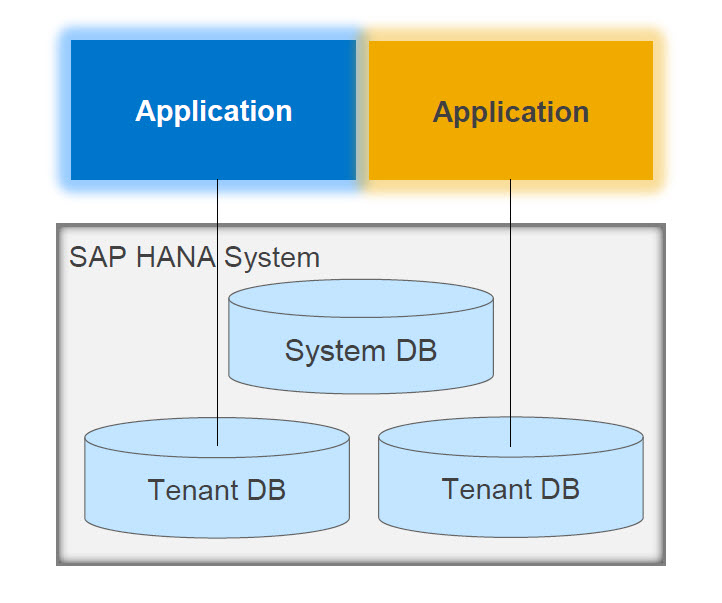

4. Multi-tenant database, Multiple Applications

Here we can run multiple applications( lets say one is ERP and another is BW system) accessing two different tenant databases which is not possible in a single tenant DB system.

The advantage is complete data isolation between two different tenant databases and user separation.  Backup and recovery can be performed on tenant level.

4

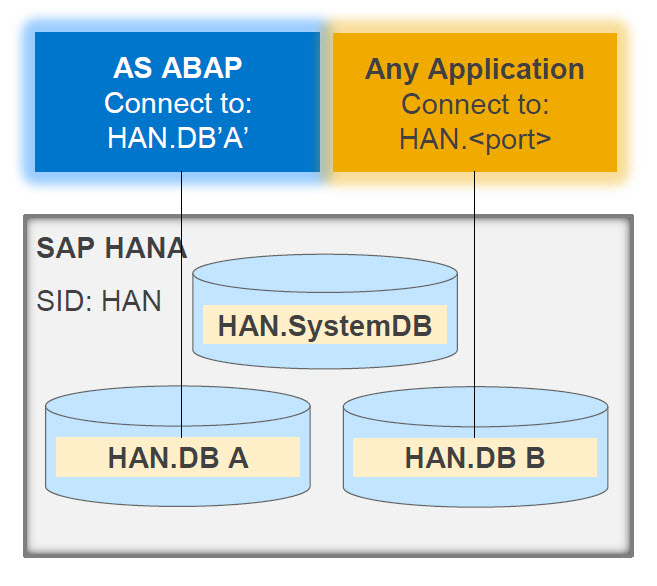

Each HANA system having a ID: HAN and each tenant database is identified with system ID and database name.

5


The administration can be performed in each tenant DB level.

6
