oData(Part3)- Query Operation

light

Query Operation with GET_ENTITYSET.





The post describes how to implement the data provider extension class for the Query operation. [ Check the link oData(Part2)- Read Operation  for the Read Operation]

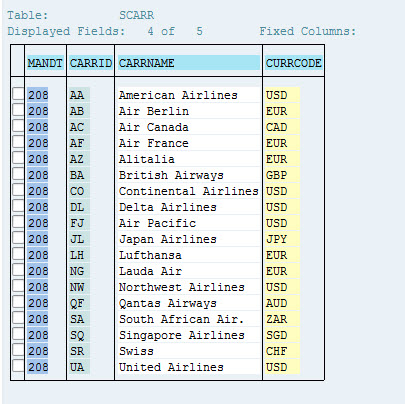

The SCARR table entries.

2

Go to the data provider extension class- ZCL_ZSCARR_DEMO_DPC_EXT. Right click on it and choose Go to ABAP workbench.

12

Select change mode, select the method SCARRS_GET_ENTITYSET and select redefine button.

3

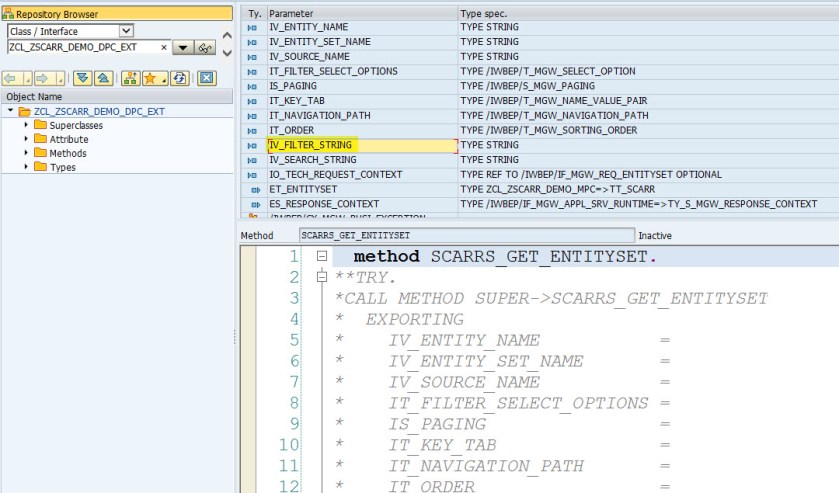

Depending upon different url parameters different import parameters are filled.

4

Now just put a select query and fill the ET_ENTITYSET table.

5

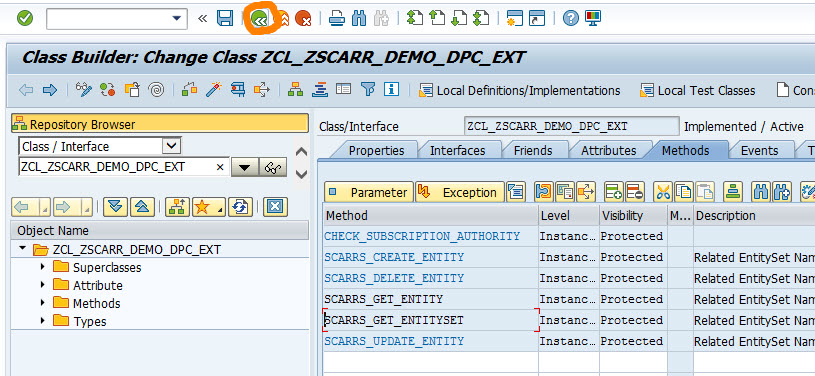

Activate and go back

6

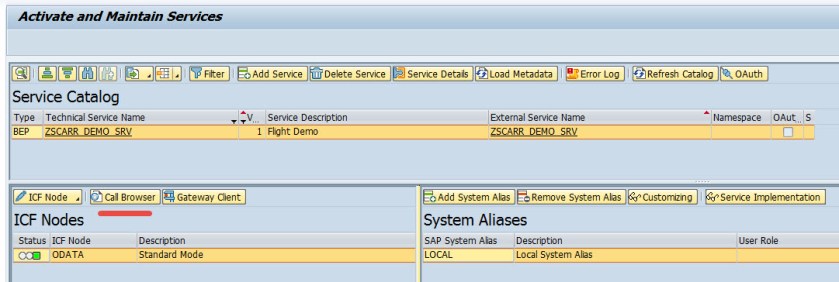

From the Service Maintenance , select Maintain buttn.

7

Choose Call Browser.

8

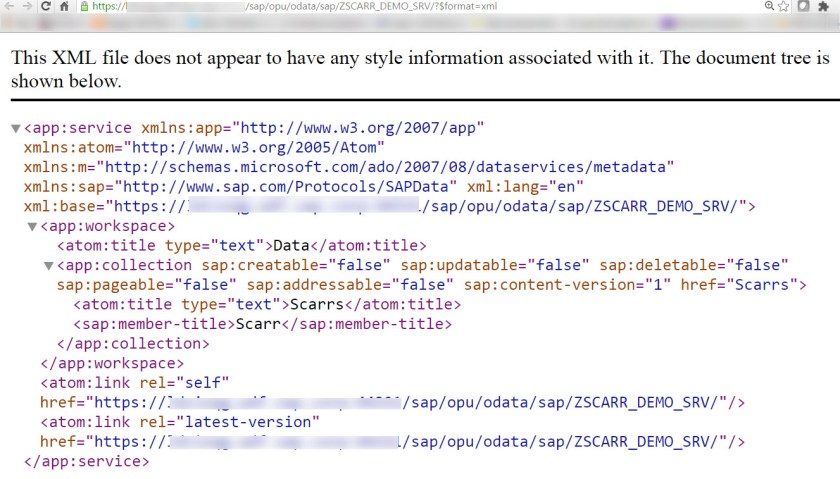

The XML format is displayed.

9

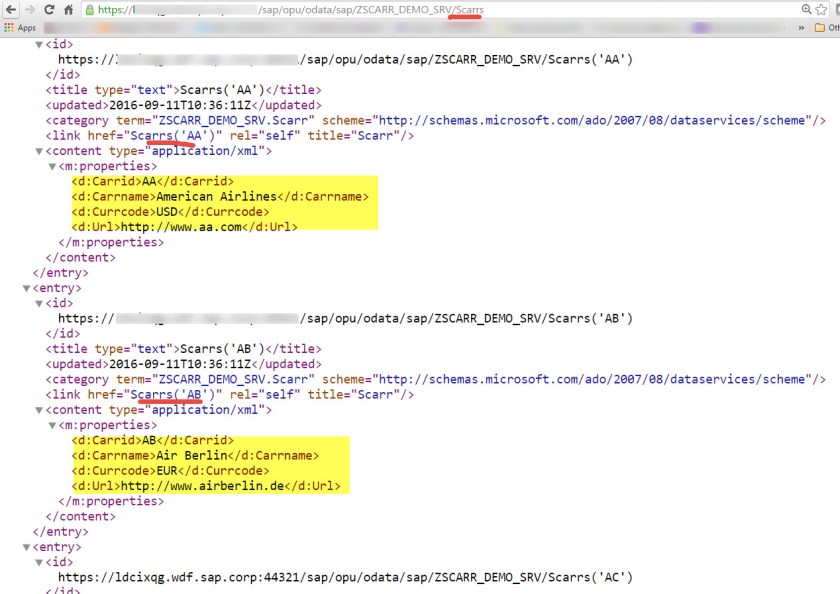

Now lets get all the records by the URL:

https://server address/sap/opu/odata/sap/ZSCARR_DEMO_SRV/Scarrs

10

we can set the url that uses filter

https://server address/sap/opu/odata/sap/ZSCARR_DEMO_SRV/Scarrs?$filter=Carrid eq ‘LH’

For that lets change the method accordingly.

11

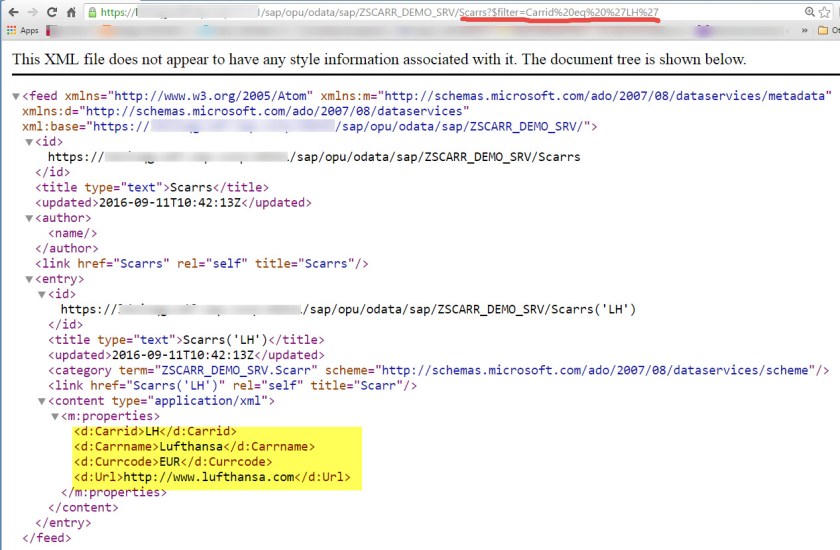

https://server address/sap/opu/odata/sap/ZSCARR_DEMO_SRV/Scarrs?$filter=Carrid eq ‘LH’

12

https://server address/sap/opu/odata/sap/ZSCARR_DEMO_SRV/Scarrs?$filter=(Carrid eq ‘LH’ or Carrid eq ‘AC’)

URL with multiple Carrid .

13
