Read Operation with GET_ENTITY .





The post describes how to implement the data provider extension class for the READ operation. [ Check the link oData- Part1   to create the entity type, entity set and runtime artifatcs.]

The SCARR table entries.

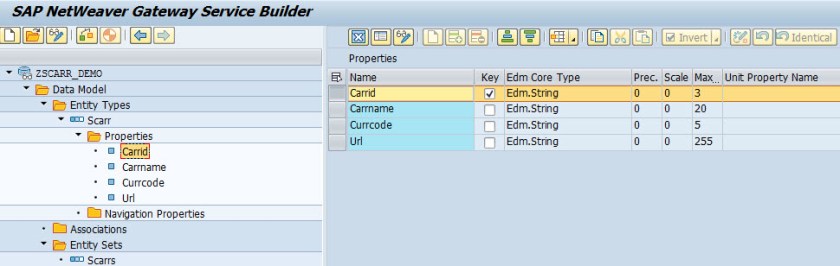

We have the project. In the entity data model ‘Carrid’ is the only key.

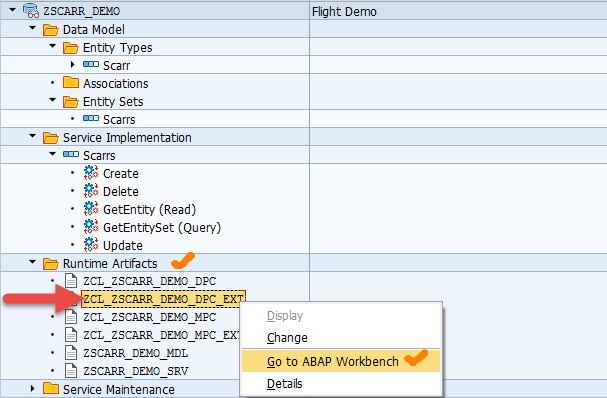

Go to the data provider extension class- ZCL_ZSCARR_DEMO_DPC_EXT. Right click on it and choose Go to ABAP workbench.

1

Select  change mode. Select the method: SCARRS_GET_ENTITY and click on the redefine button.

2

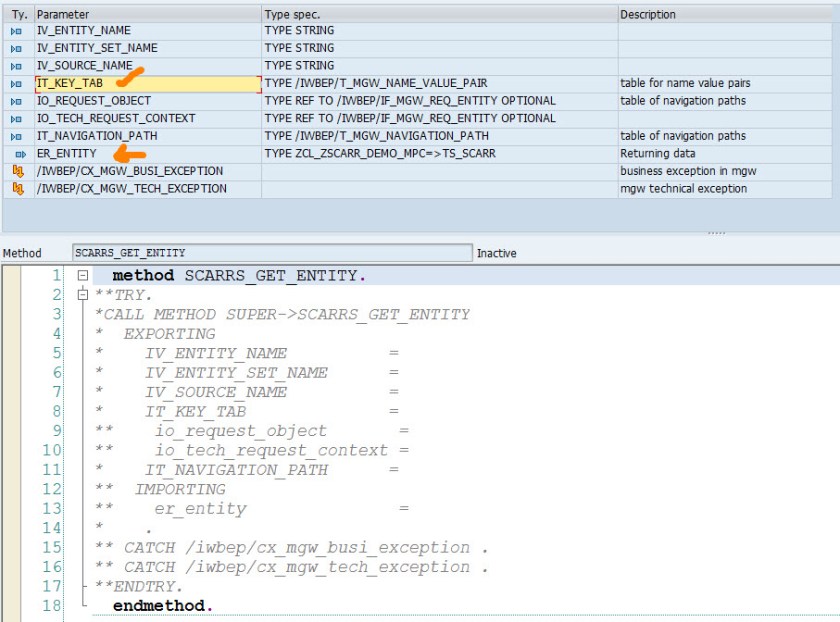

Now when we request with the URL

https://server address/sap/opu/odata/sap/ZSCARR_DEMO_SRV/Scarrs(‘AA’), the IT_KEY_TAB is filed with the key value pair and return as a structure ER_ENTITY.



3

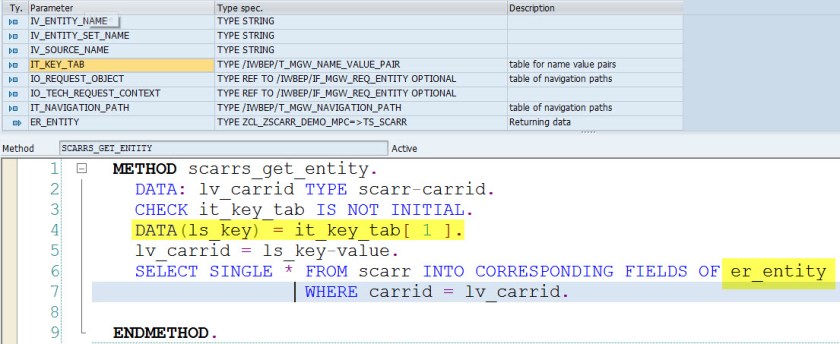

Put the below code:

    DATAlv_carrid TYPE scarrcarrid.
    CHECK it_key_tab IS NOT INITIAL.
    DATA(ls_keyit_key_tab[ ].
    lv_carrid ls_keyvalue.
    SELECT SINGLE FROM scarr INTO CORRESPONDING FIELDS OF er_entity
                    WHERE carrid lv_carrid

4

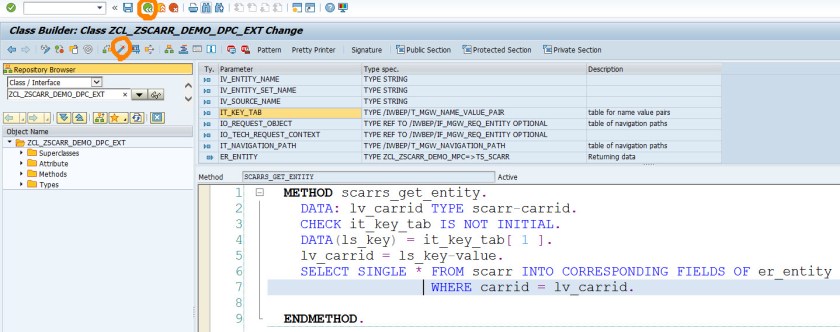

Activate the code and go back.

5

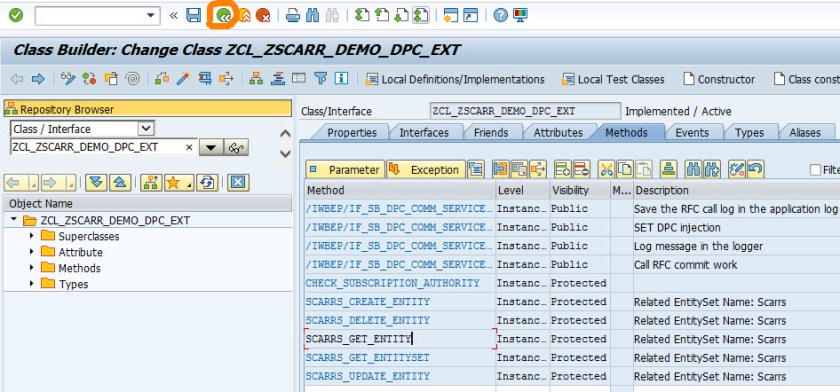

Go Back.

6

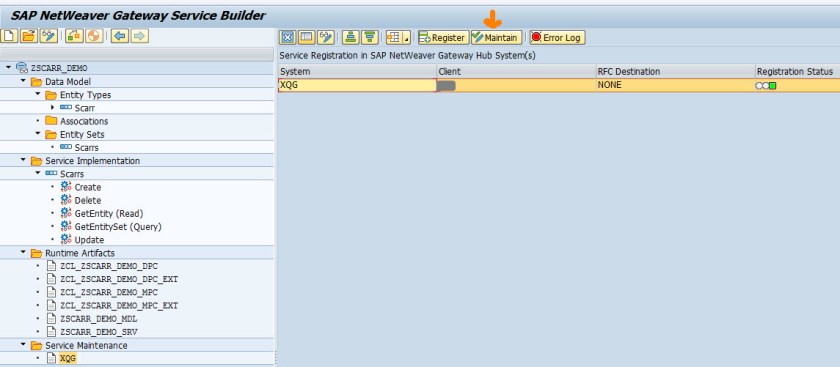

From the Service Implementation , choose Maintain.

7

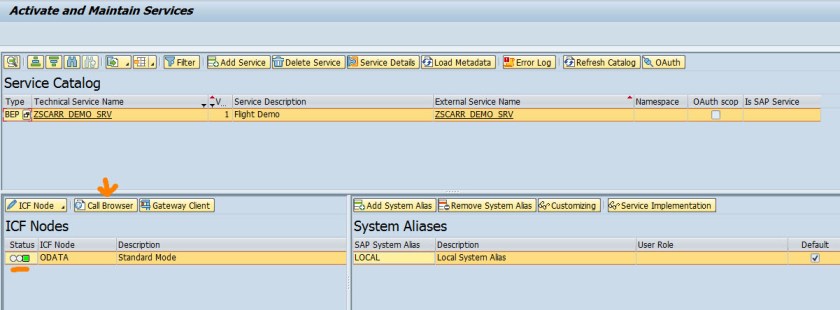

Choose Call Browser.

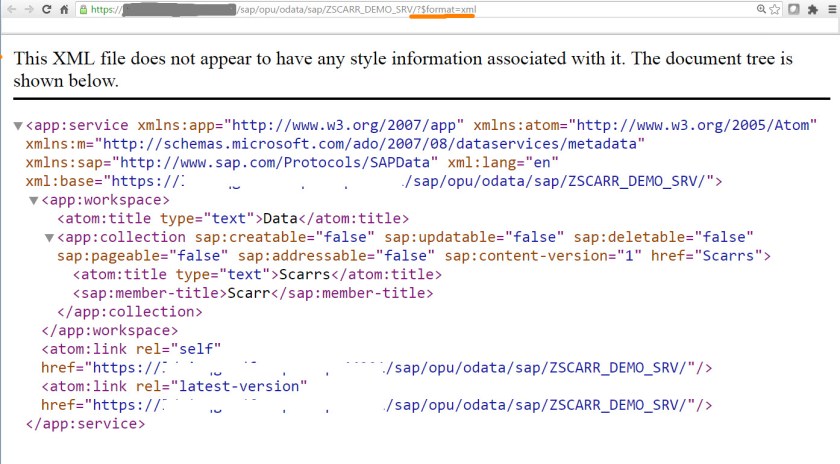

Well, here we have the XML format.



8

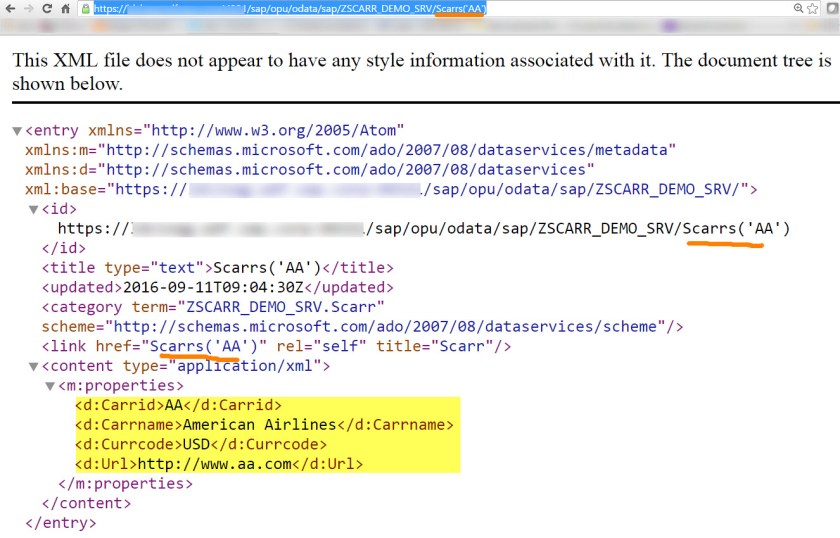

Now we have to form the url to read details with the key ‘Carrid’.

https://server address/sap/opu/odata/sap/ZSCARR_DEMO_SRV/Scarrs(‘AA’)

9

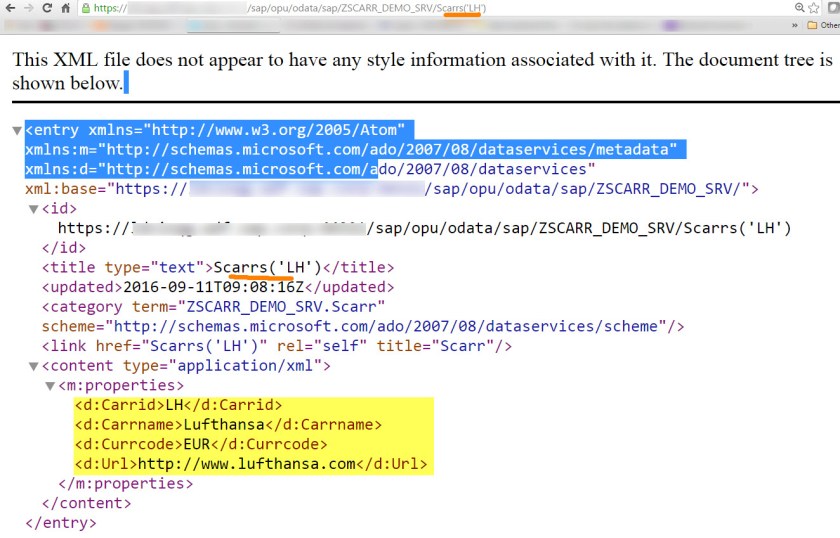

https://server address/sap/opu/odata/sap/ZSCARR_DEMO_SRV/Scarrs(‘LH’)

10

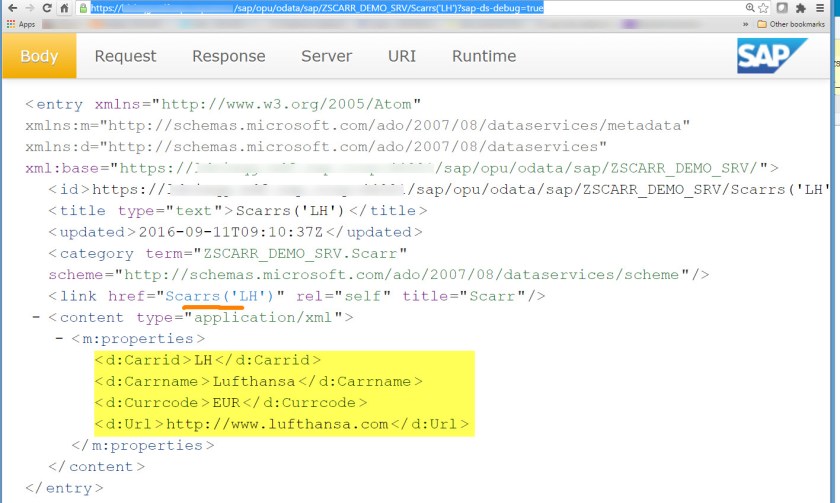

To check the html format we can use the below url as

https://server address/sap/opu/odata/sap/ZSCARR_DEMO_SRV/Scarrs(‘LH’)?sap-ds-debug=true

11
