Embedding an FPM application in Web Dynpro application

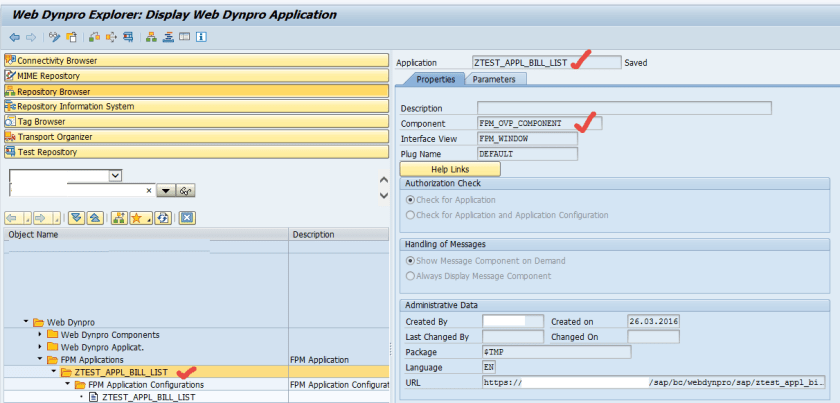

The post describes about how to embed a FPM application in Webdynrpo applictaion. Already we have a FPM OVP application ZTEST_APPL_BILL_LIST. This is an OVP application. In fact we can embed any FPM application whether OVP, OIF or GAF .

1

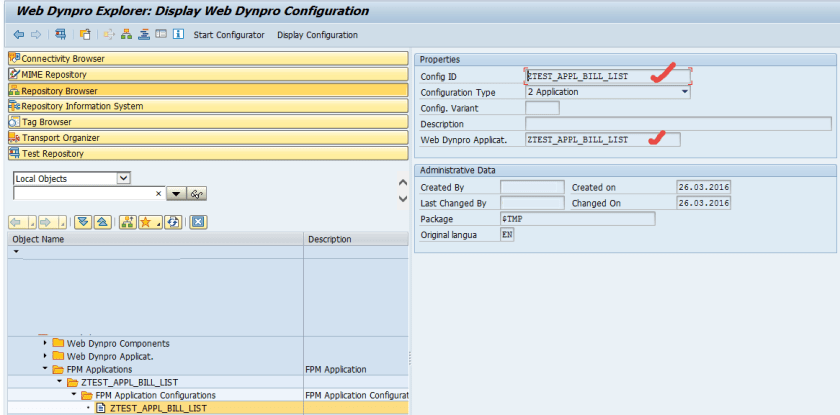

The FPM OVP configuration ID is ZTEST_APPL_BILL_LIST. Here both the OVP application and configuration ID name is same. we need the configuration ID to embed it in webdynpro.   Test the FPM application.

2

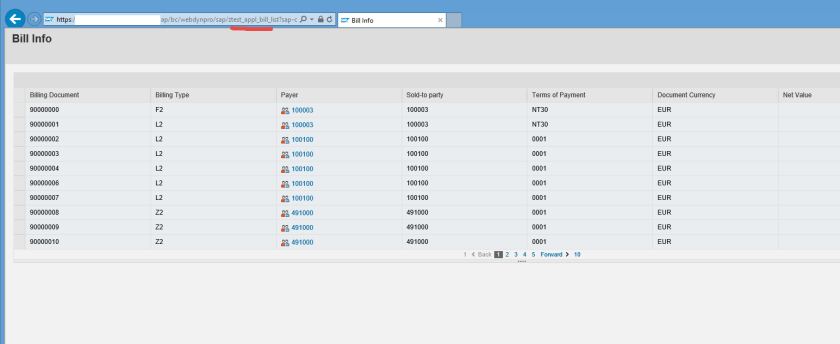

So the FPM OVP application looks like this.

0

Now we have to create a web dynpro component. Create in Tx- SE80 & provide used component as –  BILL_LIST as component use and component as – FPM_OVP_COMPONENT.

3

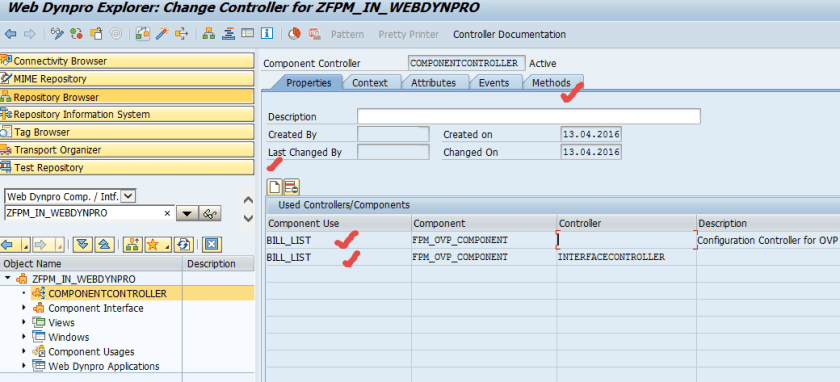

Go to component controller and add the Used Components. Go to the Methods tab.

4

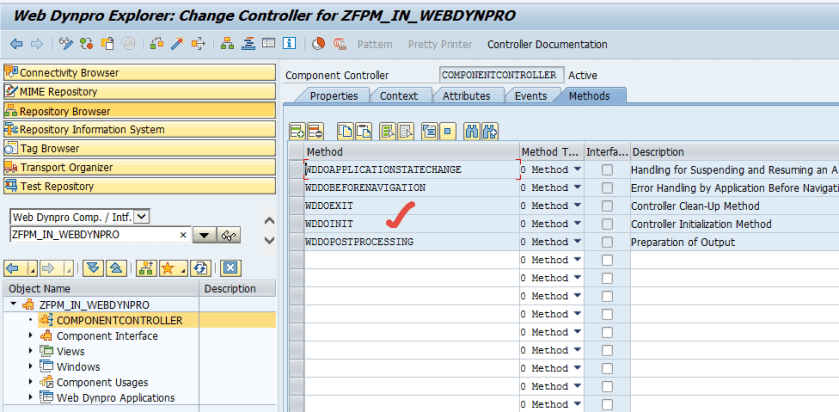

Go to the WDDOINIT method.

5

Provide the below code as shown.

6

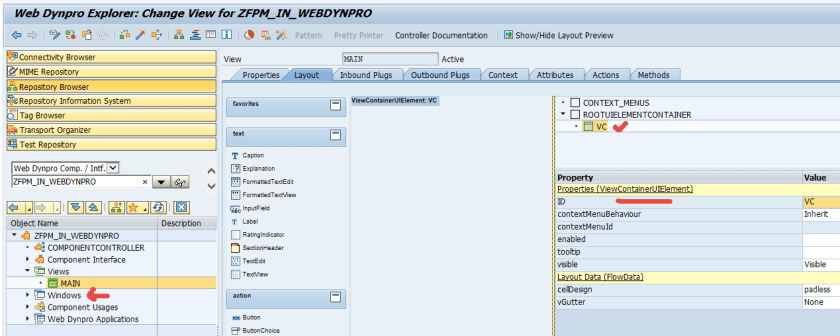

Go to the view and add a view container UI element and name it as VC.

7

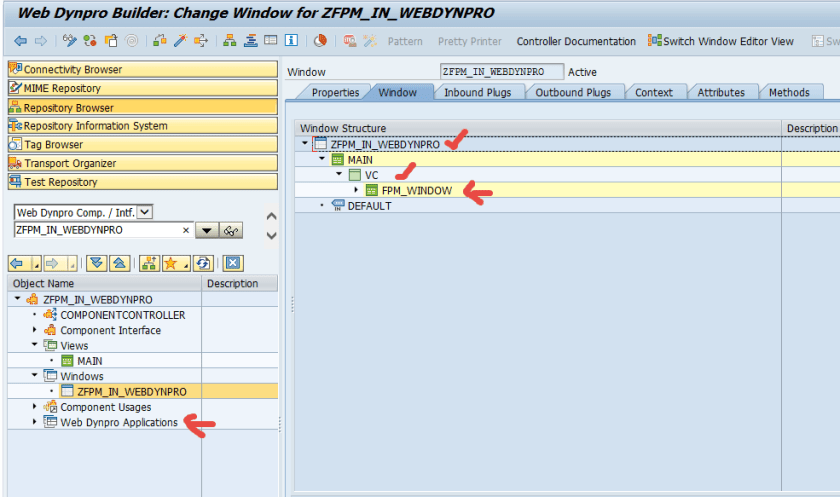

Go to the Window and Embed VIEW as FPM_WINDOW in the VC.

8

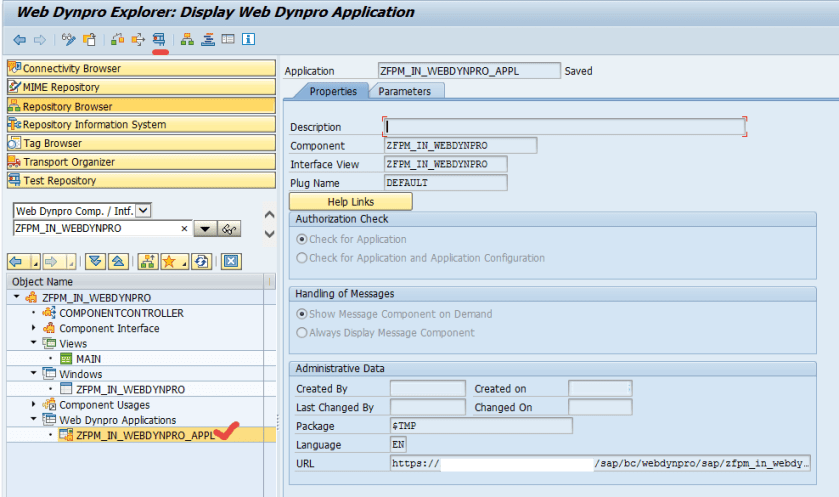

Create an application and test.

9

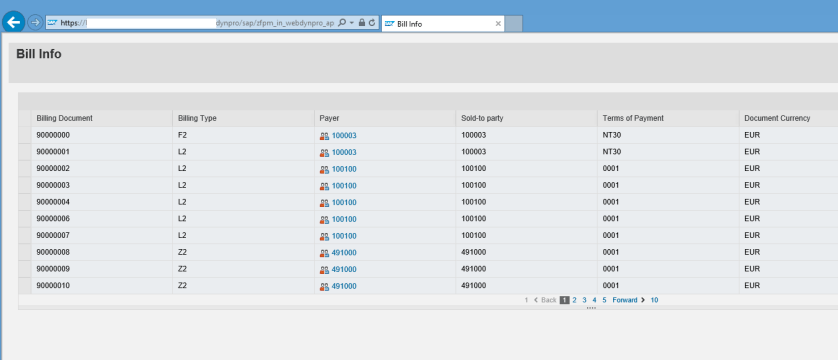

So here the FPM OVP configuration called in the webdynpro application.

10
