Displaying MIME picture in Adobe Form

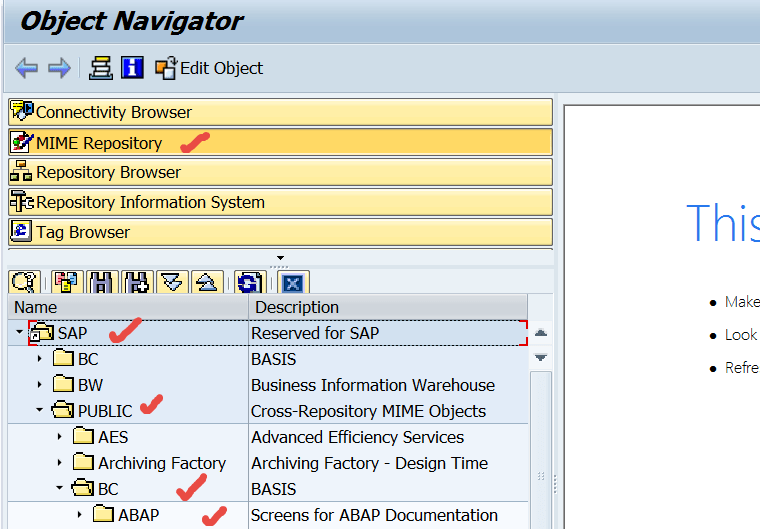

 Go to Tx- SE80 and here we have the MIME repository. We have a picture  along the path  ‘SAP/PUBLIC/BC/ABAP/ABDOC_DEEP_STRUCTURE_EN.GIF’

0

1

Go to Tx- SFP and create an interface.

2

Go to Global data.

3

Create two variables LOGO and MIME_TYPE.

4

Go to Code initialization and provide below code, which reads MIME picture from the MIME repository and prepares XSTRING data. Activate the interface and go back.




CALL METHOD CL_MIME_REPOSITORY_API=>IF_MR_API~GET_API
  RECEIVING
    R_MR_API DATA(LR_MR_API).    ” MIME REPOSITORY API

CALL METHOD LR_MR_API->GET
  EXPORTING
    I_URL ‘SAP/PUBLIC/BC/ABAP/ABDOC_DEEP_STRUCTURE_EN.GIF’    ” OBJECT URL
  IMPORTING
    E_CONTENT              =  LOGO        ” OBJECT CONTENTS
    E_MIME_TYPE            =  MIME_TYPE   ” MIME TYPE
  EXCEPTIONS
    PARAMETER_MISSING      1
    ERROR_OCCURED          2
    NOT_FOUND              3
    PERMISSION_FAILURE     4
    OTHERS                 5.




5

Create a form and assign the form interface.

6

7

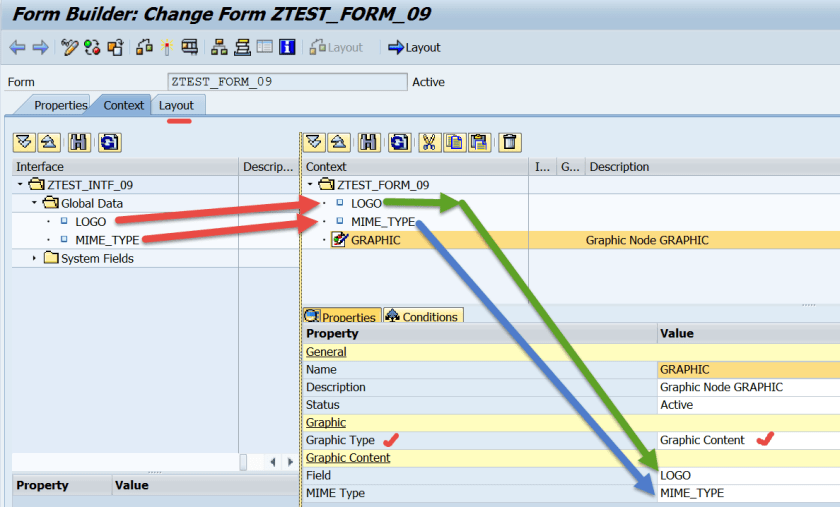

Map the interface global data to the form content area. Additionally create one GRAPHIC field in the form content area  and choose Graphic_type as Graphic Content and assign the field and mime type. Go to Form Layout.

8

Drag&drop Image field to the page design view.

9

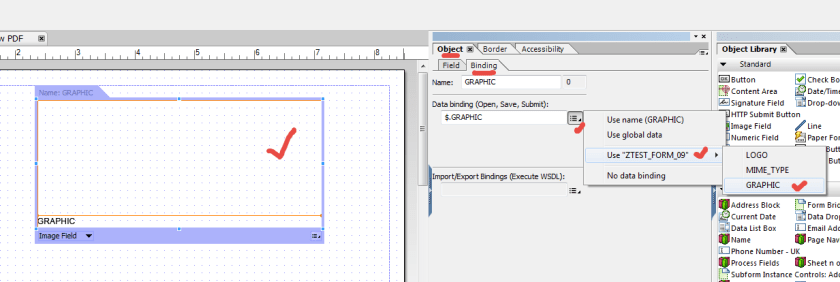

Make the binding.

10

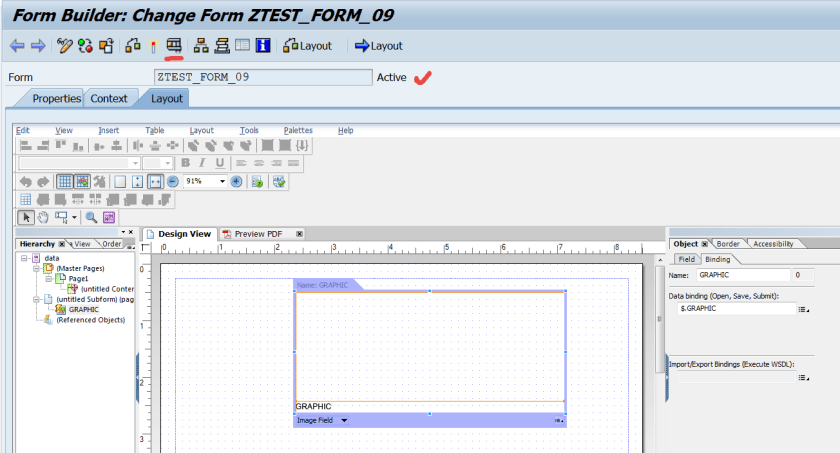

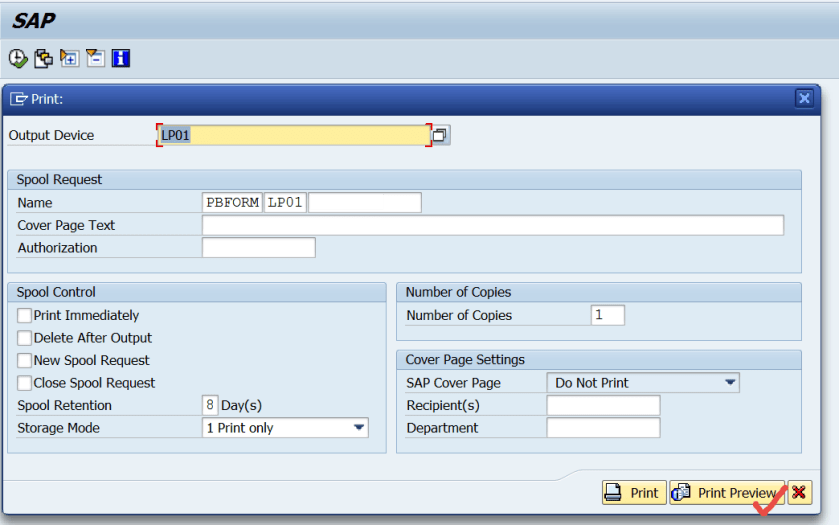

Activate and test the form.

11

12

13

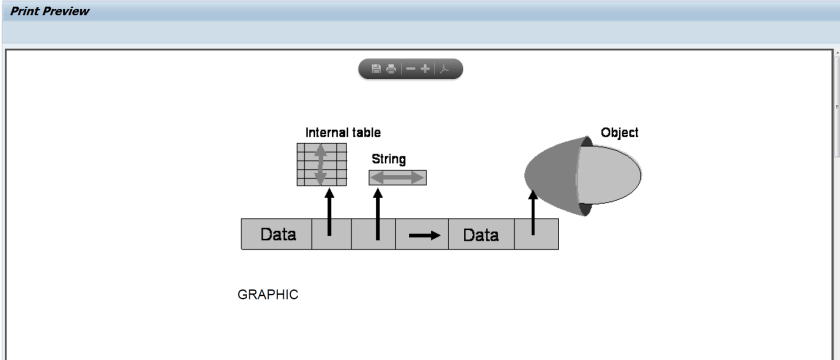

So here we have the form preview.

14
