Dynamic creation of UI element and Context attribute in Web Dynpro



In this post UI elements like a Label and an input field is created dynamically and the input field is bound a context attribute created dynamically.

Create a web dynpro component.

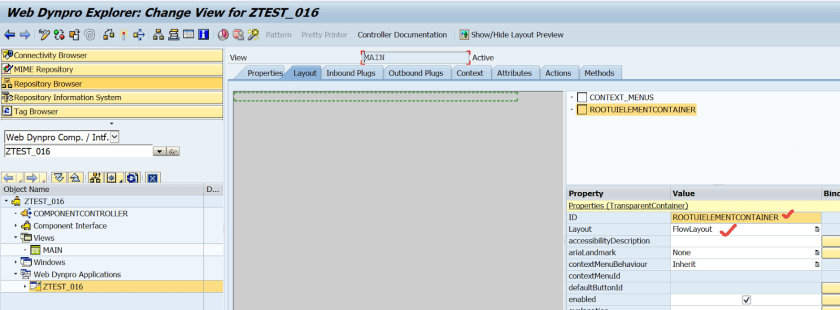

 Layout set is flow layout.

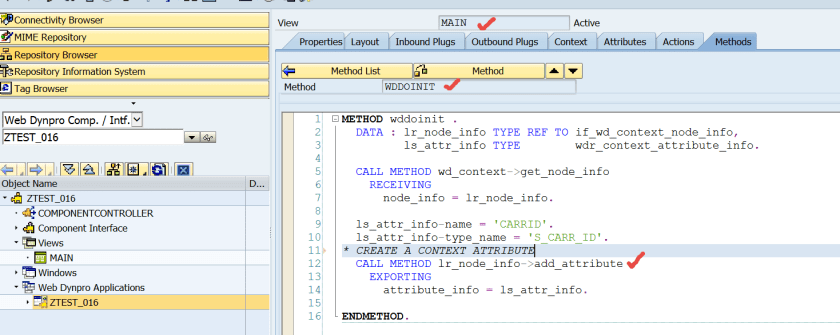

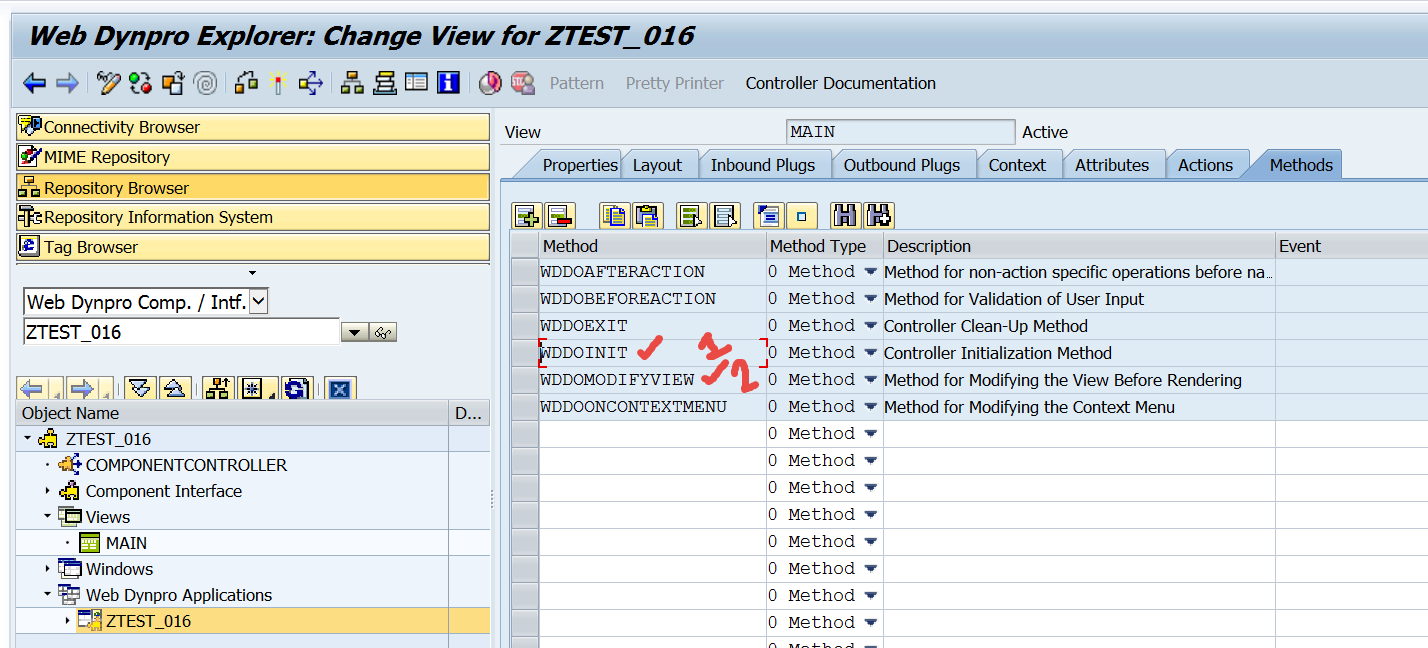

 Go to the WDDOINIT method to create a context attribute dynamically.

Put the below code to create context attribute dynamically.

—————————————————————

METHOD wddoinit .
DATA :

     lr_node_info TYPE REF TO if_wd_context_node_info,
ls_attr_info TYPE        wdr_context_attribute_info.

CALL METHOD wd_context->get_node_info
RECEIVING
node_info lr_node_info.

ls_attr_infoname ‘CARRID’.
ls_attr_infotype_name ‘S_CARR_ID’.
* CREATE A CONTEXT ATTRIBUTE
CALL METHOD lr_node_info->add_attribute
EXPORTING
attribute_info ls_attr_info.

ENDMETHOD.

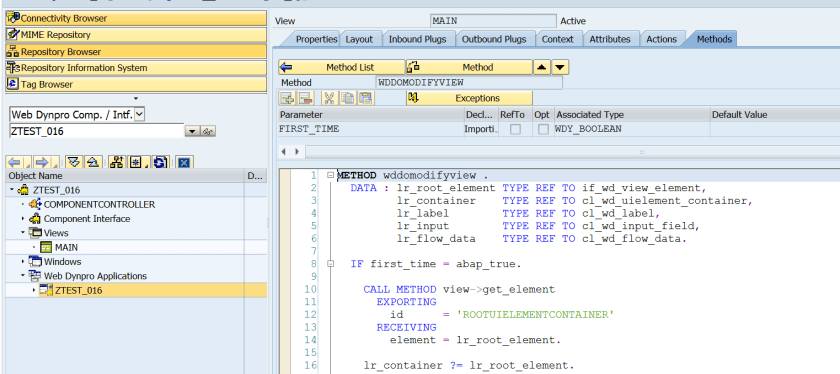

To create dynamic UI element put the below code in WDDOMODIFYVIEW.


METHOD wddomodifyview .

  DATA : lr_root_element TYPE REF TO if_wd_view_element,

         lr_container    TYPE REF TO cl_wd_uielement_container,

         lr_label        TYPE REF TO cl_wd_label,

         lr_input        TYPE REF TO cl_wd_input_field,

         lr_flow_data    TYPE REF TO cl_wd_flow_data.

  IF first_time = abap_true.

    CALL METHOD view->get_element

      EXPORTING

        id      = ‘ROOTUIELEMENTCONTAINER’

      RECEIVING

        element = lr_root_element.

    lr_container ?= lr_root_element.

    CALL METHOD cl_wd_label=>new_label

      EXPORTING

        id        = ‘L_FLIGHT_CODE’

        label_for = ‘FLIGHT_CODE’

      RECEIVING

        control   = lr_label.

    CALL METHOD cl_wd_flow_data=>new_flow_data

      EXPORTING

        element = lr_label

      RECEIVING

        control = lr_flow_data.

    CALL METHOD lr_label->set_layout_data

      EXPORTING

        the_layout_data = lr_flow_data.

    CALL METHOD lr_container->add_child

      EXPORTING

       ” index     = 1

        the_child = lr_label.

    CALL METHOD cl_wd_input_field=>new_input_field

      EXPORTING

        bind_value = ‘CARRID’

        id         = ‘FLIGHT_CODE’

      RECEIVING

        control    = lr_input.

    CALL METHOD cl_wd_flow_data=>new_flow_data

      EXPORTING

        element = lr_input

      RECEIVING

        control = lr_flow_data.

    CALL METHOD lr_input->set_layout_data

      EXPORTING

        the_layout_data = lr_flow_data.

    CALL METHOD lr_container->add_child

      EXPORTING

     ”   index     = 2

        the_child = lr_input.

  ENDIF.

ENDMETHOD.

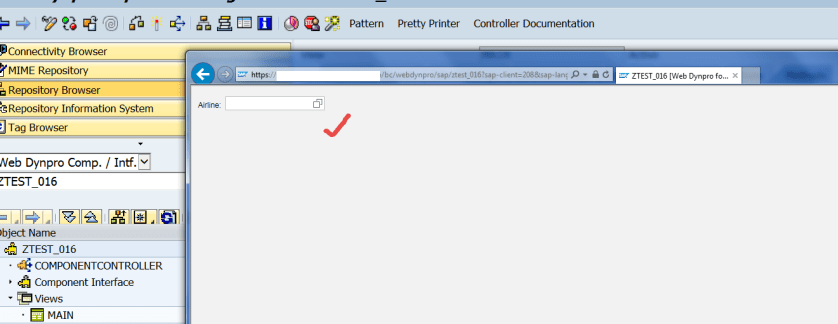

Create an application and test.
