Dynamic creation of UI element and Context attribute in Web Dynpro 2




Post Details- This post shows how to create a context attribute and node dynamically.

After that creating UI elements like Label, Input Field, Button and Table dynamically.

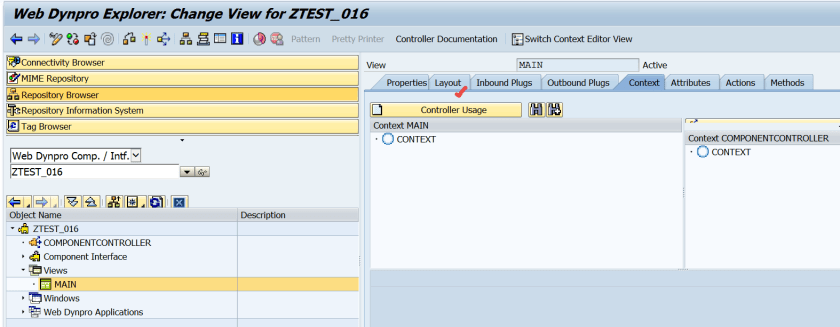

Create a web dynpro component.

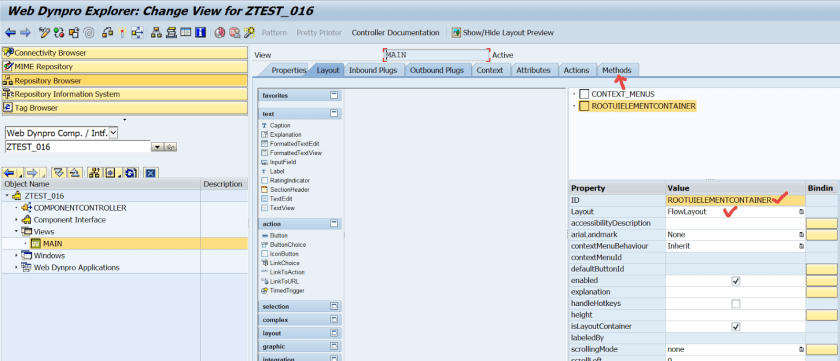

 Layout set is flow layout.

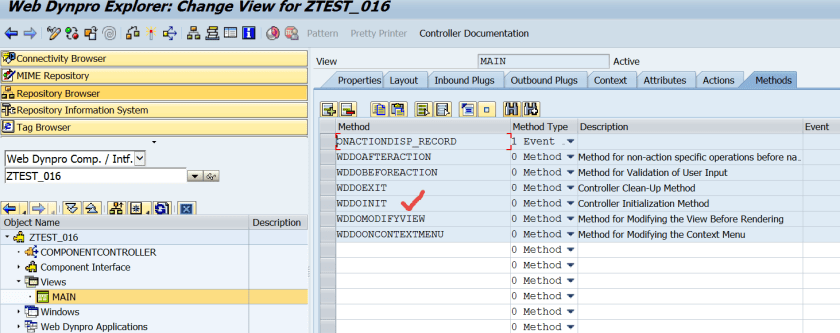

 To create a context attribute and a context node, change the WDDOINIT method.

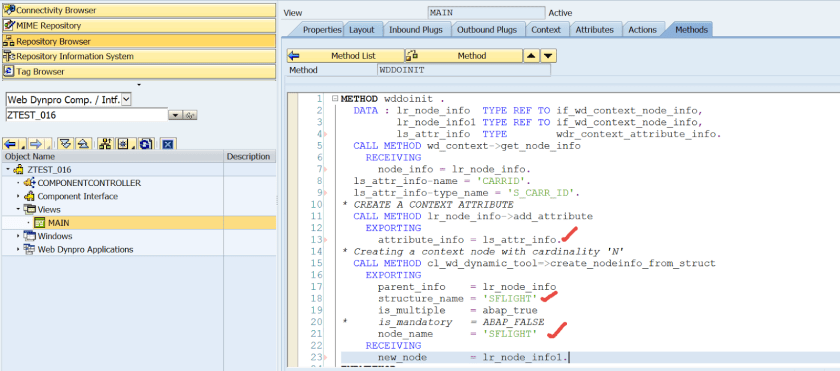

Put the below code to create an attribute and Node dynamically.


METHOD wddoinit .

  DATA :

         lr_node_info  TYPE REF TO if_wd_context_node_info,

         lr_node_info1 TYPE REF TO if_wd_context_node_info,

         ls_attr_info  TYPE        wdr_context_attribute_info.

  CALL METHOD wd_context->get_node_info

    RECEIVING

      node_info = lr_node_info.

  ls_attr_info-name = ‘CARRID’.

  ls_attr_info-type_name = ‘S_CARR_ID’.

* CREATE A CONTEXT ATTRIBUTE

  CALL METHOD lr_node_info->add_attribute

    EXPORTING

      attribute_info = ls_attr_info.

* Creating a context node with cardinality ‘N’

  CALL METHOD cl_wd_dynamic_tool=>create_nodeinfo_from_struct

    EXPORTING

      parent_info    = lr_node_info

      structure_name = ‘SFLIGHT’

      is_multiple    = abap_true

*     is_mandatory   = ABAP_FALSE

      node_name      = ‘SFLIGHT’

    RECEIVING

      new_node       = lr_node_info1.

ENDMETHOD.

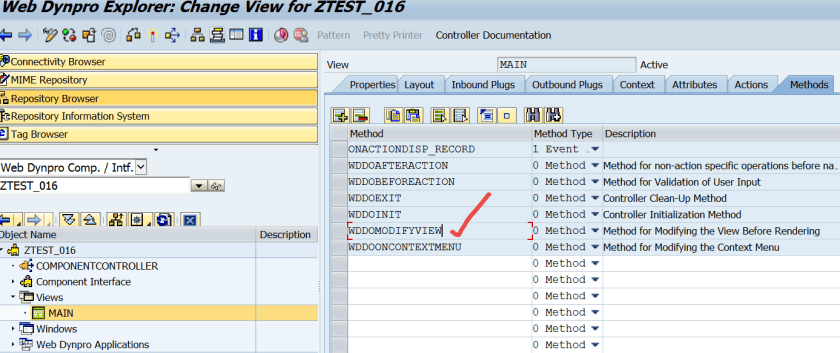

To Build UI element Dynamically change the WDDOMODIFYVIEW method.


METHOD wddomodifyview .

  DATA :

         lr_root_element TYPE REF TO if_wd_view_element,

         lr_container    TYPE REF TO cl_wd_uielement_container,

         lr_label        TYPE REF TO cl_wd_label,

         lr_input        TYPE REF TO cl_wd_input_field,

         lr_button       TYPE REF TO cl_wd_button,

         lr_table        TYPE REF TO cl_wd_table,

         lr_flow_data    TYPE REF TO cl_wd_flow_data,

         lr_node1        TYPE REF TO if_wd_context_node.

  IF first_time = abap_true.

    CALL METHOD view->get_element

      EXPORTING

        id      = ‘ROOTUIELEMENTCONTAINER’

      RECEIVING

        element = lr_root_element.

    lr_container ?= lr_root_element.

* create a label

    CALL METHOD cl_wd_label=>new_label

      EXPORTING

        id        = ‘L_FLIGHT_CODE’

        label_for = ‘FLIGHT_CODE’

      RECEIVING

        control   = lr_label.

    CALL METHOD cl_wd_flow_data=>new_flow_data

      EXPORTING

        element = lr_label

      RECEIVING

        control = lr_flow_data.

    CALL METHOD lr_label->set_layout_data

      EXPORTING

        the_layout_data = lr_flow_data.

    CALL METHOD lr_container->add_child

      EXPORTING

        ” index     = 1

        the_child = lr_label.

* Create an input field

    CALL METHOD cl_wd_input_field=>new_input_field

      EXPORTING

        bind_value = ‘CARRID’

        id         = ‘FLIGHT_CODE’

      RECEIVING

        control    = lr_input.

    CALL METHOD cl_wd_flow_data=>new_flow_data

      EXPORTING

        element = lr_input

      RECEIVING

        control = lr_flow_data.

    CALL METHOD lr_input->set_layout_data

      EXPORTING

        the_layout_data = lr_flow_data.

    CALL METHOD lr_container->add_child

      EXPORTING

        ”   index     = 2

        the_child = lr_input.

* Creating a button

    CALL METHOD cl_wd_button=>new_button

      EXPORTING

        enabled   = ‘X’

        id        = ‘BTN’

        on_action = ‘DISP_RECORD’

        text      = ‘Display’

      RECEIVING

        control   = lr_button.

    CALL METHOD cl_wd_flow_data=>new_flow_data

      EXPORTING

        element = lr_button

      RECEIVING

        control = lr_flow_data.

    CALL METHOD lr_button->set_layout_data

      EXPORTING

        the_layout_data = lr_flow_data.

    CALL METHOD lr_container->add_child

      EXPORTING

*       index     = 3

        the_child = lr_button.

* Creating a table

    CALL METHOD wd_context->get_child_node

      EXPORTING

        name       = ‘SFLIGHT’

      RECEIVING

        child_node = lr_node1.

    CALL METHOD cl_wd_dynamic_tool=>create_table_from_node

      EXPORTING

        ui_parent = lr_container

        table_id  = ‘TAB1’

        node      = lr_node1

      RECEIVING

        table     = lr_table.

  ENDIF.

ENDMETHOD.

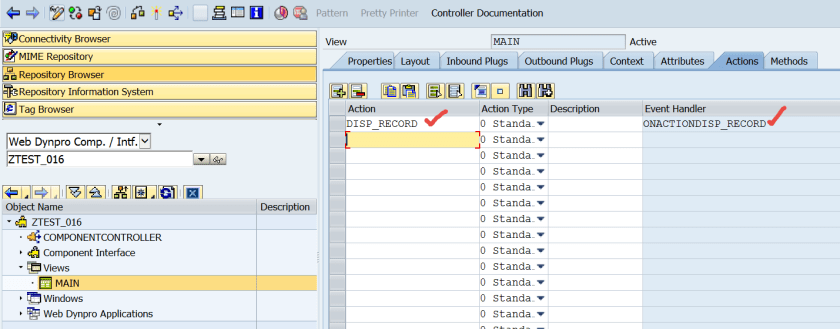

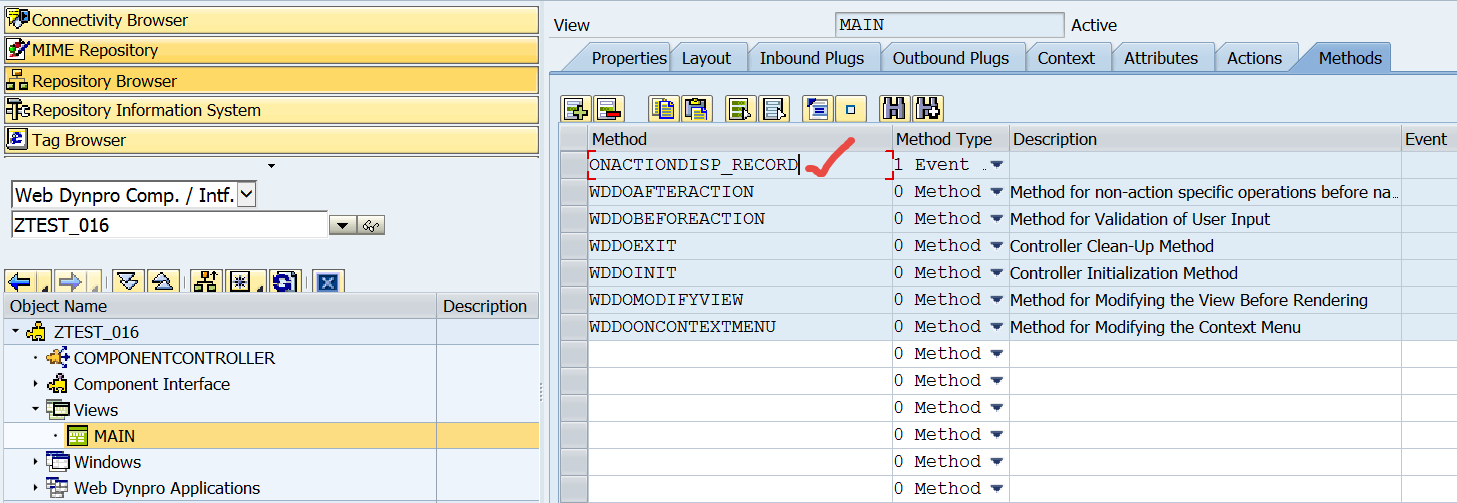

For the button the action is given as DISP_RECORD’ . So create an action and change the event handler method.

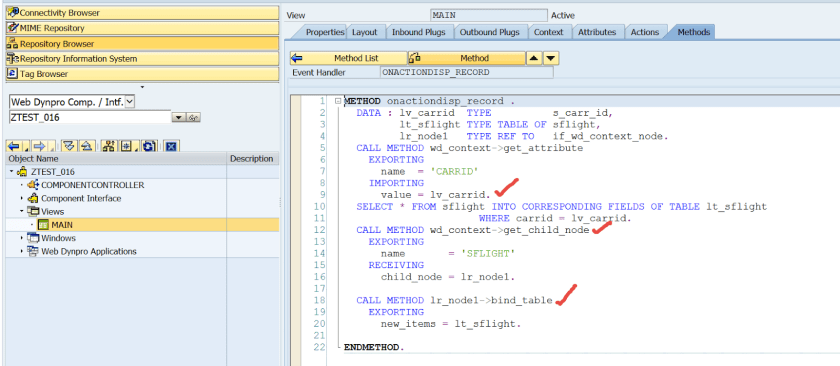

 Put the code to read the attribute value and bind the table.


METHOD onactiondisp_record .

  DATA :

        lv_carrid  TYPE          s_carr_id,

         lt_sflight TYPE TABLE OF sflight,

         lr_node1   TYPE REF TO   if_wd_context_node.

  CALL METHOD wd_context->get_attribute

    EXPORTING

      name  = ‘CARRID’

    IMPORTING

      value = lv_carrid.

  SELECT * FROM sflight INTO CORRESPONDING FIELDS OF TABLE lt_sflight

                      WHERE carrid = lv_carrid.

  CALL METHOD wd_context->get_child_node

    EXPORTING

      name       = ‘SFLIGHT’

    RECEIVING

      child_node = lr_node1.


  CALL METHOD lr_node1->bind_table

    EXPORTING

      new_items = lt_sflight.


ENDMETHOD.

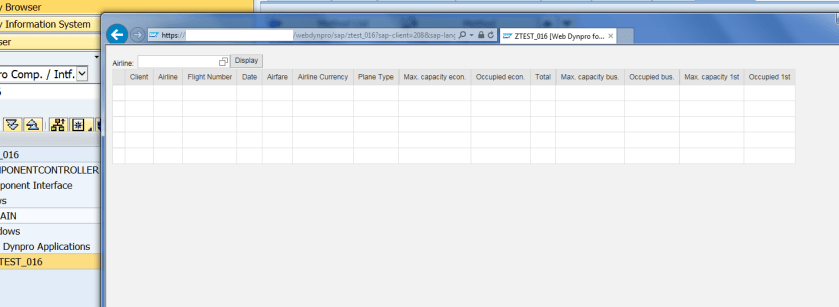

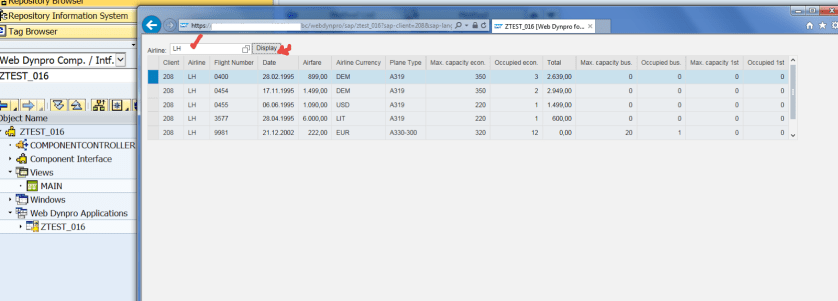

Create an application and test.
