Text Element in Window




Creating a simple smartform and using text element in the smartform window.

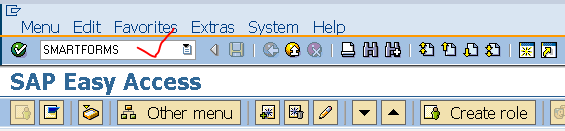

Step1. Go to Tcode- SMARTFORMS

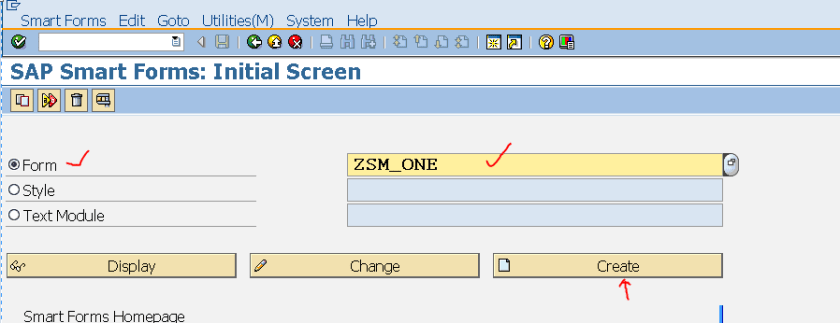

Step2. Provide a smartform name and then click on create button.

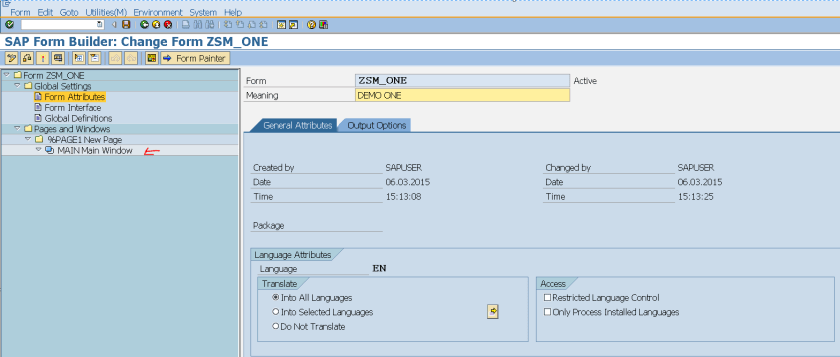

Step3. Now under the Pages and Windows option, double click on MAIN Main Window.

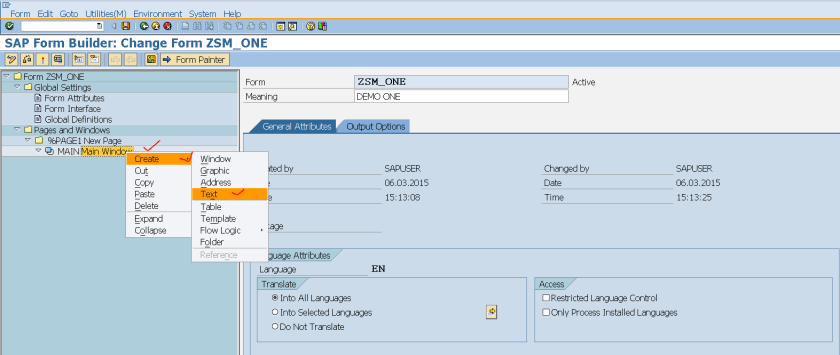

Step4. Right click on Main Window and navigate Create->Text.

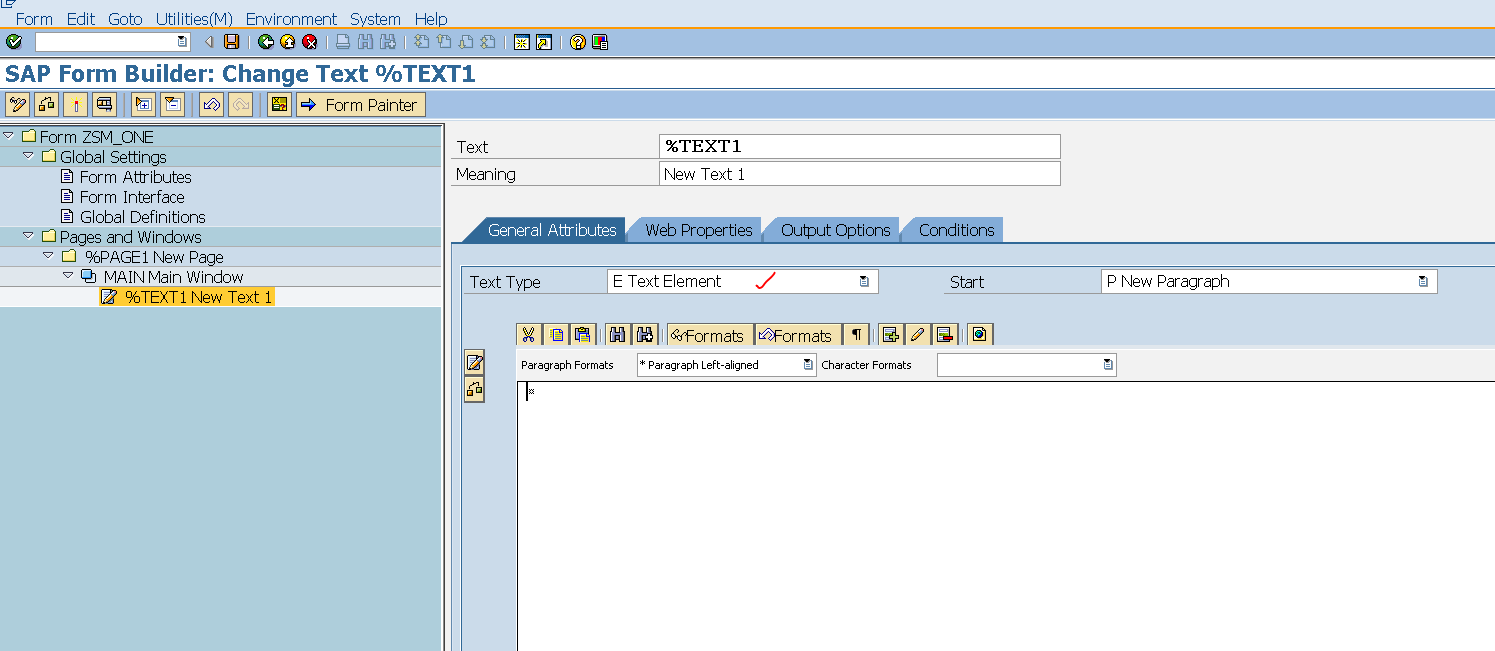

Step5. Choose Text Type as – E Text Element.

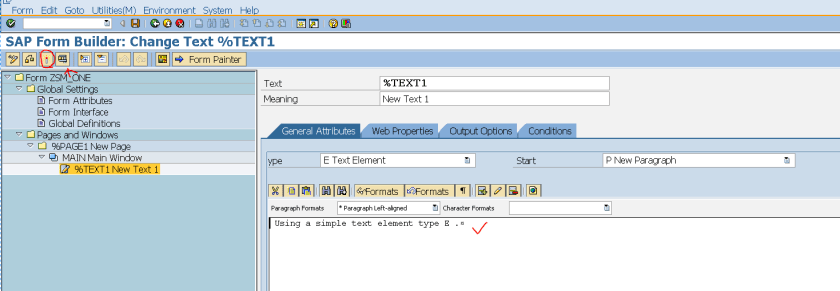

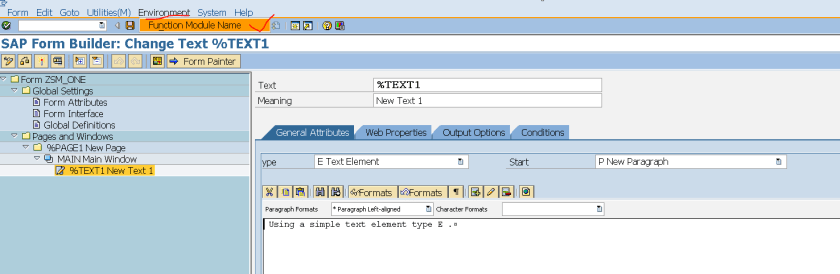

Step6. Then in the Editor screen provide some meaningful text as needed. Save and activate the smartform.

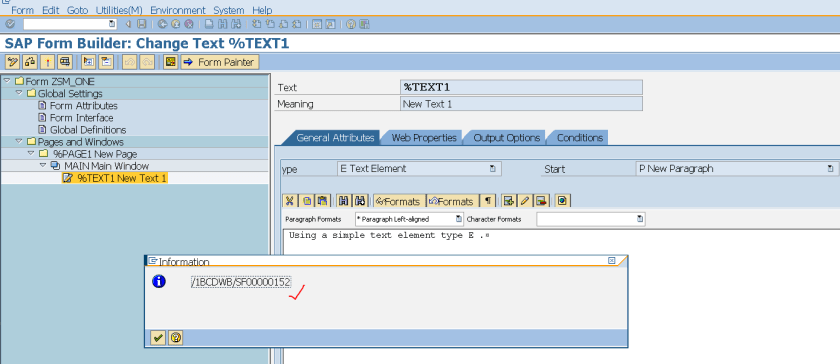

Step7. When smartform is activated one function module is generated which can be seen from Environment – Function module name.

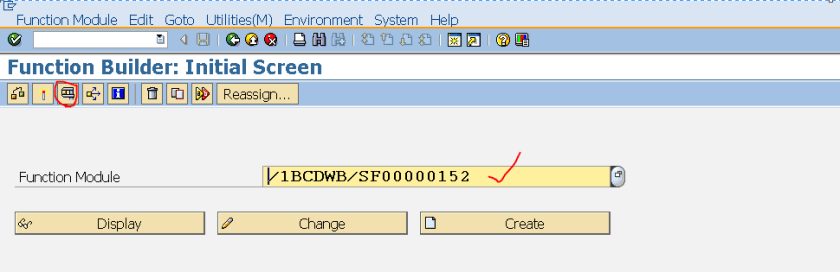

Step8. Here the function module generated for this smartform is shown in the popup screen. Continue and click on the Test button.

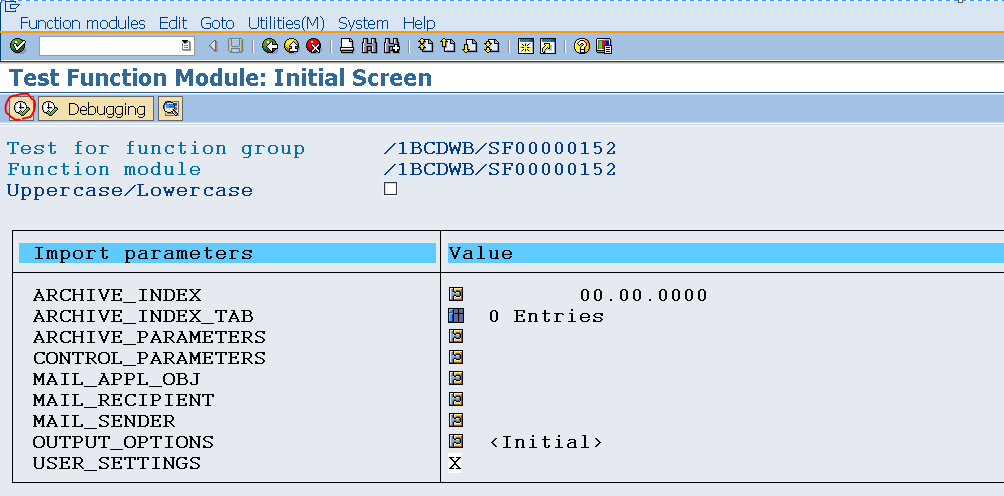

Step9.  The function module is called. Now choose Test button.

Step10. Choose Execute button.

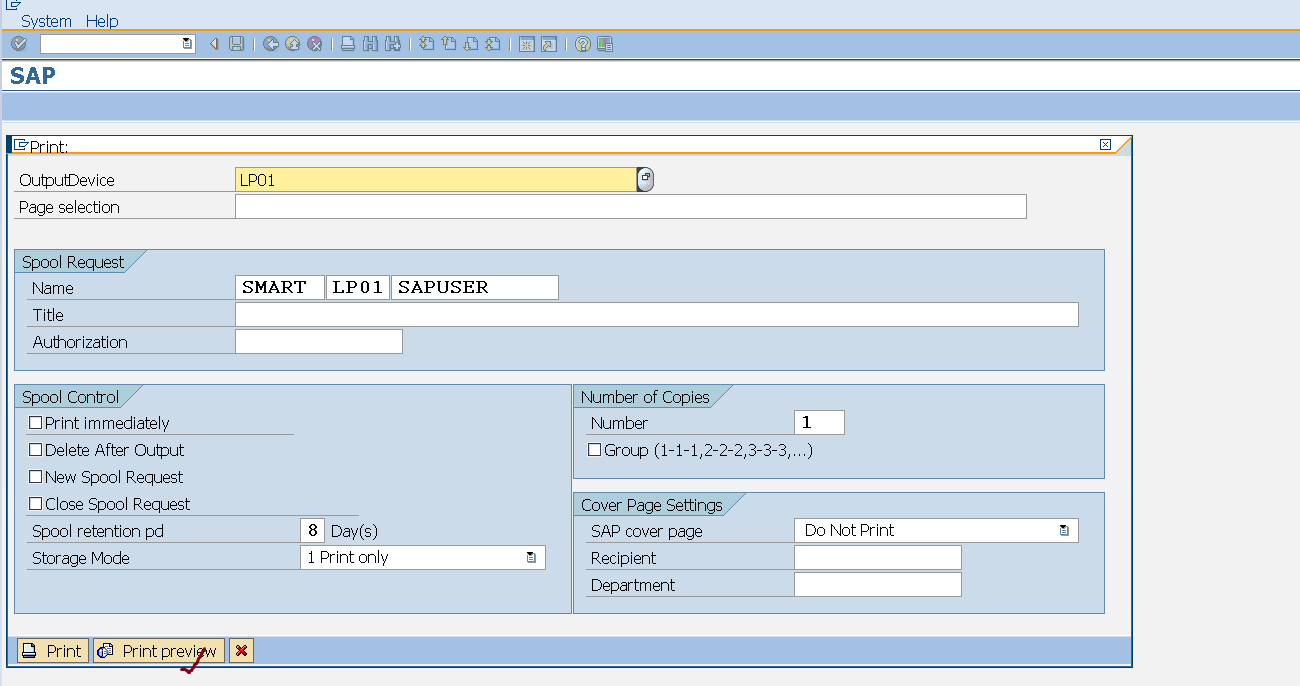

Step11. Choose print preview.

Step12. So here the text element appeared in the smartform window.
