oDATA Vs SOAP

light111oDATA Vs SOAP


A comparison between oDATA and SOAP

oData

SOAP

Resource Based:

 Customer, Product, Purchase Order or Sales order  every thing is considered as a resource

Action Based:

 Here we use Action – getCustomer, getProduct, getPurchaseorder, getSalesorder

Can be represnted in XML or JSON (JAVA SCRIPT OBJECT NOATION) format

Can be represented in XML format.

JSON is a light-weitht data format easy to read,write and machines to parse. Where as XML is heavyweight as compared to JSON. When some application you want to view on mobile device, then JSON is the preferred format over XML for many mobile and web application. JSON doesn’t use tag , it is quicker and shorter and uses array.


A simple employee array representation with JSON and XML:

JSON:

{“employees”:[
    { “firstName”:”John”, “lastName”:”Doe” },
    { “firstName”:”Anna”, “lastName”:”Smith” },
    { “firstName”:”Peter”, “lastName”:”Jones” }
]}


XML:

<employees>
    <employee>
        <firstName>John</firstName> <lastName>Doe</lastName>
    </employee>
    <employee>
        <firstName>Anna</firstName> <lastName>Smith</lastName>
    </employee>
    <employee>
        <firstName>Peter</firstName> <lastName>Jones</lastName>
    </employee>
</employees>

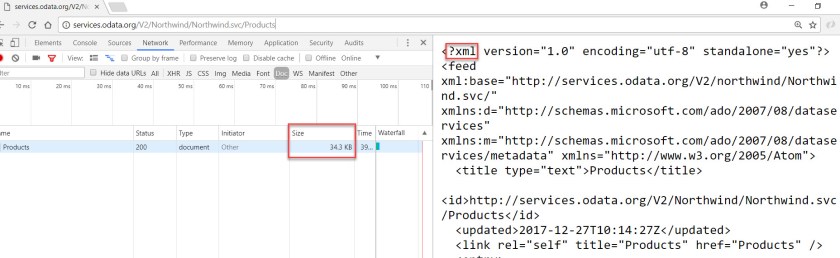

Open the below URL in chrome browser and open the developer tool.

http://services.odata.org/V2/Northwind/Northwind.svc/Products

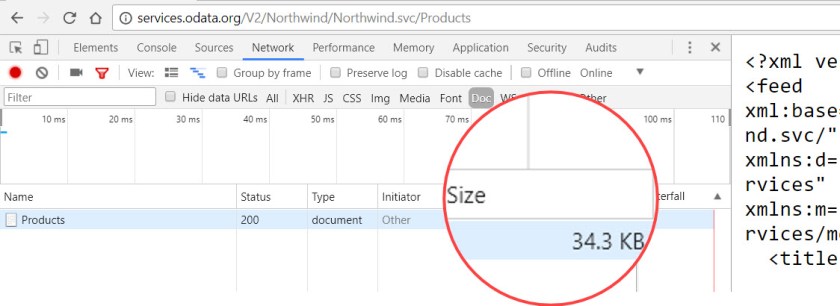

The service opens the PRODUCTS entity set in XML format and size is 34.3 KB.

3

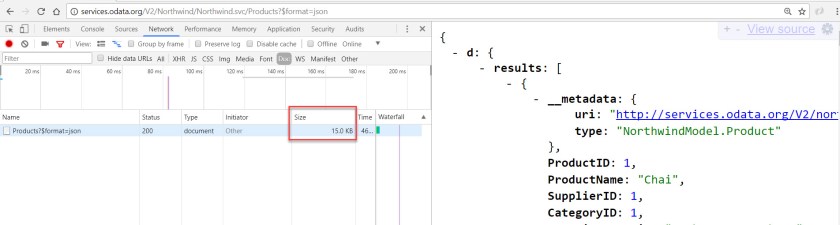

http://services.odata.org/V2/Northwind/Northwind.svc/Products?$format=json

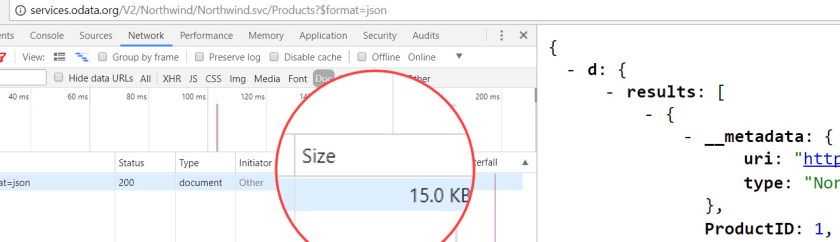

Open the same service PRODUCTS entity set in JSON format, the size is 15KB.

4
