ABAP CDS Table Function Implemented by AMDP

light111ABAP CDS Table Function Implemented by AMDP

ABAP CDS Table Function defines table function which are native to the database.

 ->The CDS table function has a set of    input parameters and a set of return  parameters . The result is  is a TABULAR format with return fields.

->Actual implementation happens in a     AMDP method with a return value

-> Calling CDS Table Function to get the  result

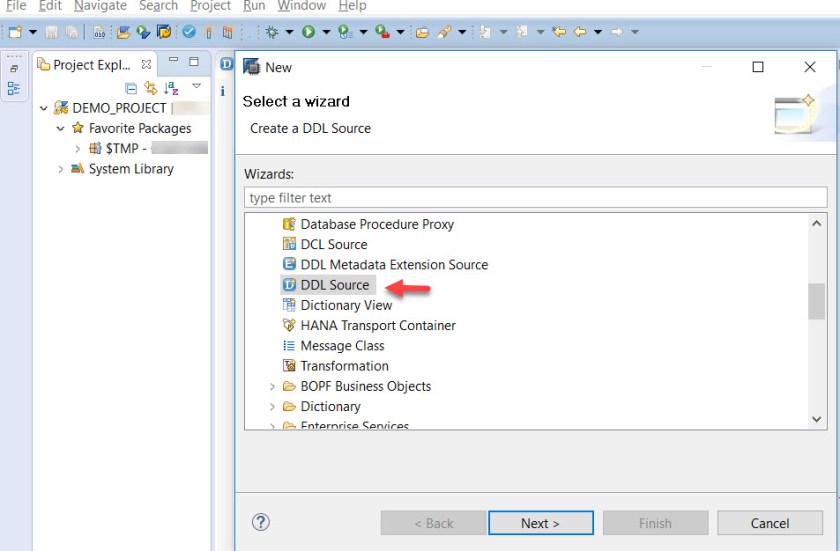

Step1. Create a DDL Source.

1

. . . . .

Select Define Table Function with Parameters.

2

-> Provide the Input parameter list

-> Provide the return field list

->Provide the [ AMDP ] CLASS=>METHOD that implements  it.

->Activate it.

3


 @EndUserText.label: 'Flight CDS with Table Function'
 define table function zdemo_flight_cds_tf
 with parameters iv_carrid: s_carr_id
 returns
{
mandt: s_mandt;
 carrid: s_carr_id;
 connid: s_conn_id;
 countryfr: land1;
 cityfrom: s_from_cit;
 airpfrom: s_fromairp;
 countryto: land1;
 cityto: s_to_city;
 airpto: s_toairp;
 }
implemented by method zcl_demo_flight_calculation=>get_details;




->The method must specify for which TABLE FUNCTION it is used.

->Implement the AMDP method with RETURN.

4


 CLASS zcl_demo_flight_calculation DEFINITION PUBLIC FINAL CREATE PUBLIC .
 PUBLIC SECTION.
 INTERFACES: if_amdp_marker_hdb.
 CLASS-METHODS: get_details FOR TABLE FUNCTION ZDEMO_FLIGHT_CDS_TF.
 PROTECTED SECTION.
 PRIVATE SECTION.
 ENDCLASS.

 CLASS zcl_demo_flight_calculation IMPLEMENTATION.
 METHOD get_details BY DATABASE FUNCTION
                    FOR HDB
                   LANGUAGE SQLSCRIPT
                   OPTIONS READ-ONLY
                   USING spfli.
 RETURN
     SELECT mandt, carrid, connid,
            countryfr, cityfrom, airpfrom,
            countryto, cityto, airpto
           FROM spfli WHERE carrid = iv_carrid;
ENDMETHOD.
ENDCLASS.

Calling the CDS Table Function from PROGRAM/METHOD with addition :

##db_feature_mode[amdp_table_function]

5


 SELECT *
         FROM zdemo_flight_cds_tf( iv_carrid = 'LH' )
          INTO TABLE @DATA(lt_flight)
         ##db_feature_mode[amdp_table_function].
cl_demo_output=>display_data( EXPORTING value = lt_flight ).

Output:

6
