First Simple UI5 Application

lightFirst Simple UI5 Application






The prerequisite is – You have installed the eclipse and SAPUI5.

From the menu choose, File->New->Other..

1


Select Application Project Under SAPUI5 Application Development and select Next.

2


Provide a Project name and in library section Choose  sap.ui.commons and un-check the check box for Create an Initial View and choose Finish.

3


A project created with Index.HTML file with a sample code.

4


The demo is to create a simple BUTTON on the HTML BODY. This can be done in simple 3 steps as highlighted with comments for each step.

5




 Inside script start and end tag put below code:

// Instantiate a new button
oBtn = new sap.ui.commons.Button(“btn1”);
// set button text with object
oBtn.setText(“I am a Button”);
// add button to the body
oBtn.placeAt(“content”);




Then save the file.

6

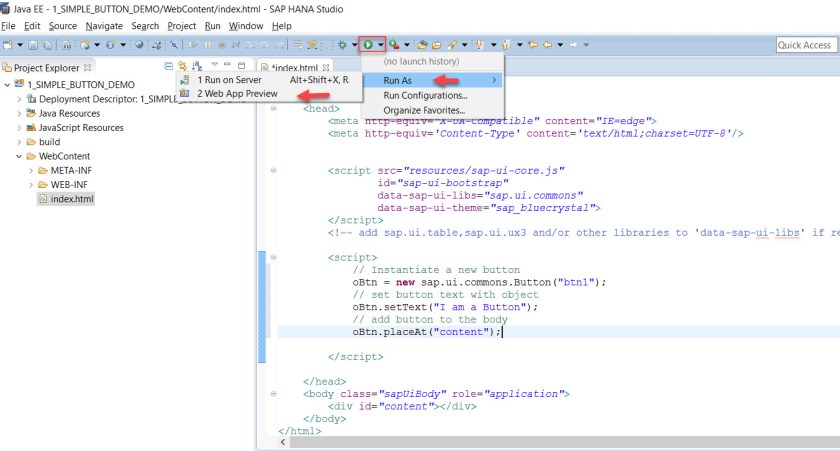

Run and choose “Web App Preview”.

7


The button appears on the screen.

8


If u want to see it in web browser, then choose the highlighted button or simply copy the URL from ecplise and paste it in browser.9

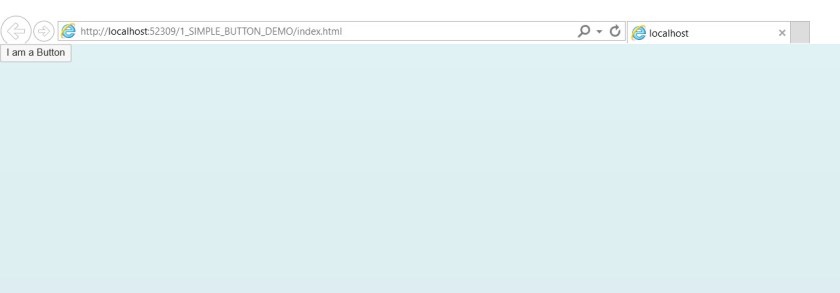

App in browser.

10
