ALV with IDA(ALV on HANA)-4

alv-idaControlling field catalog display.

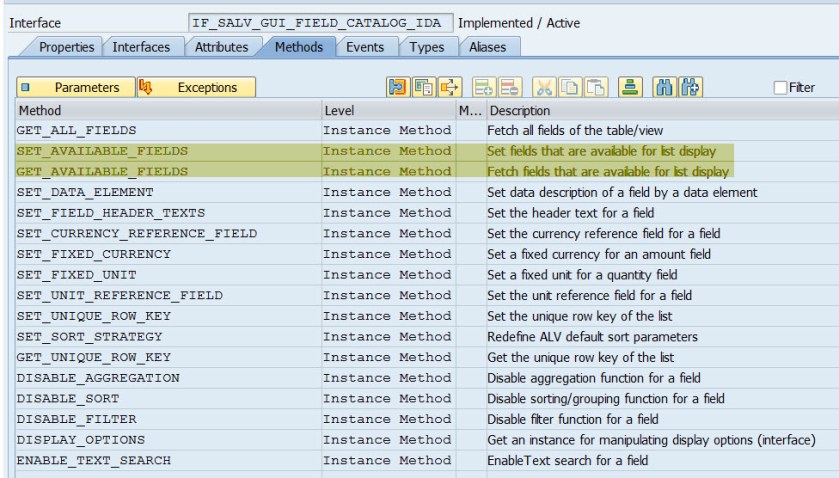

The interface IF_SALV_GUI_FIELD_CATALOG_IDA provides few methods to controls the display of alv.1.jpg

Code:


DATAlr_salv TYPE REF TO if_salv_gui_table_ida.
DATAlr_fcat TYPE REF TO if_salv_gui_field_catalog_ida.
TRY.
cl_salv_gui_table_ida=>create(
  EXPORTING
    iv_table_name       =  ‘SFLIGHT’
  RECEIVING
    ro_alv_gui_table_ida lr_salv ).
  CATCH cx_salv_db_connection.
  CATCH cx_salv_db_table_not_supported.
  CATCH cx_salv_ida_contract_violation.
ENDTRY.
* Get the field catalog reference
lr_fcat lr_salv->field_catalog).
* Get all the fields
lr_fcat->get_available_fields(
  IMPORTING
    ets_field_names DATA(lt_field).
* Delete few fields as needed
LOOP AT lt_field ASSIGNING FIELDSYMBOL(<fs_field>).
IF <fs_field> ‘SEATSMAX_B’  OR <fs_field> ‘SEATSOCC_B’
OR <fs_field> ‘SEATSMAX_F’  OR <fs_field> ‘SEATSOCC_F’.
DELETE lt_field INDEX sytabix.
ENDIF.
ENDLOOP.
* Set back the fields to be displayed
TRY.
lr_fcat->set_available_fieldsits_field_names lt_field ).
  CATCH cx_salv_ida_unknown_name.
ENDTRY.
* Set maximun rows to display
TRY.
lr_salv->set_maximum_number_of_rows(
  EXPORTING
    iv_number_of_rows 10 ).
  CATCH cx_salv_param_out_of_bounds.
ENDTRY.
* Display ALV
lr_salv->fullscreen)->display).

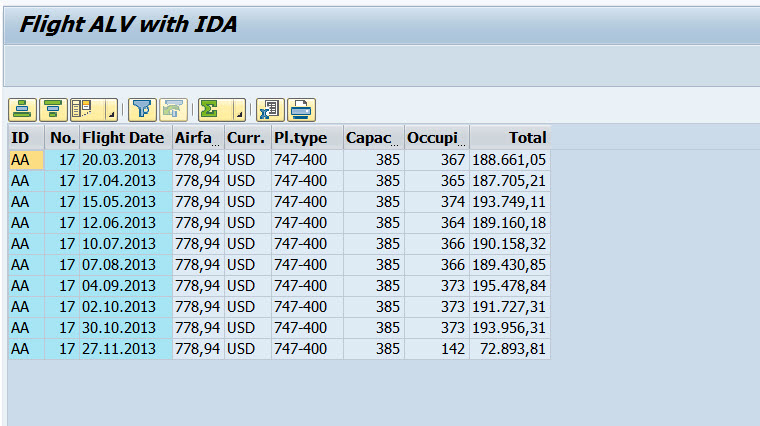

Output:  Few fields deleted.2.jpg

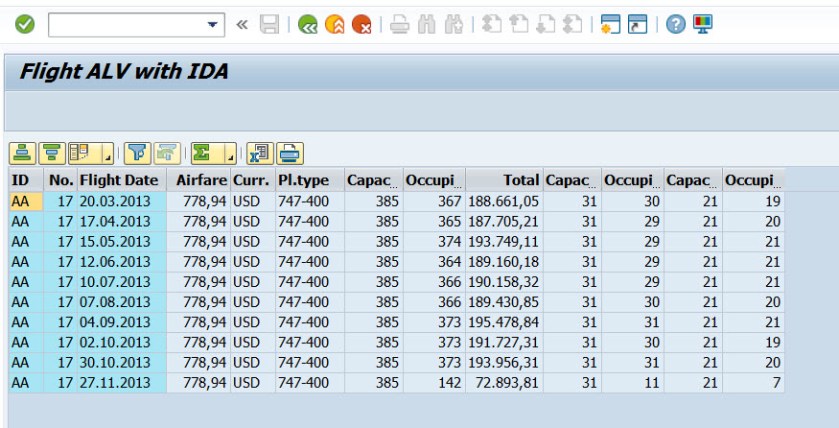

Output with all fields:2
