FPM POUP Screen Different Button Set

popup buttonFPM allows to set different buttons on the popup or dialog box screen …………………

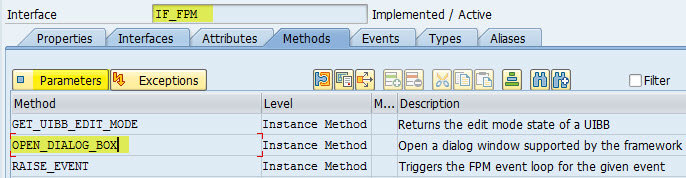

In FPM, OPEN_DIALOG_BOX  method is used to call a popup page as a popup screen. Check the method  parameter.

2

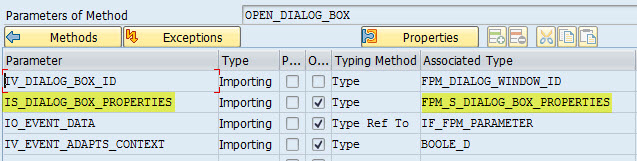

check the structure FPM_S_DIALOG_BOX_PROPERTIES of the parameter IS_DIALOG_BOX_PROPERTIES.

3

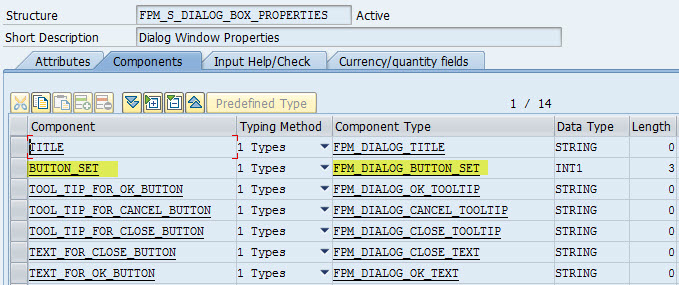

Check the data element /domain FPM_DIALOG_BUTTON_SET for the field BUTTON_SET.

4

The fixed values controls different buttons on the popup fpm screen.

5

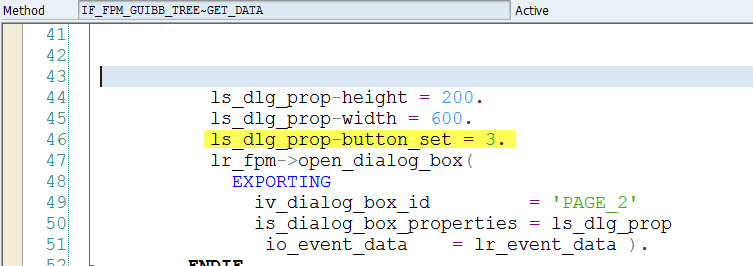

Here the code piece calls the FPM POP screen and BUTTON_SET  as 3.

0

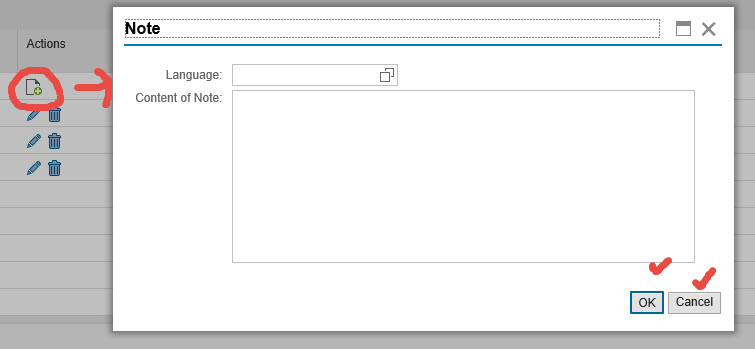

POP up Displays YES & CANCEL button.

1

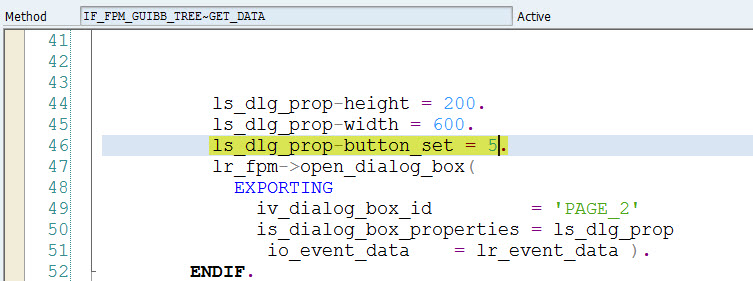

BUTTON SET as 5.

6

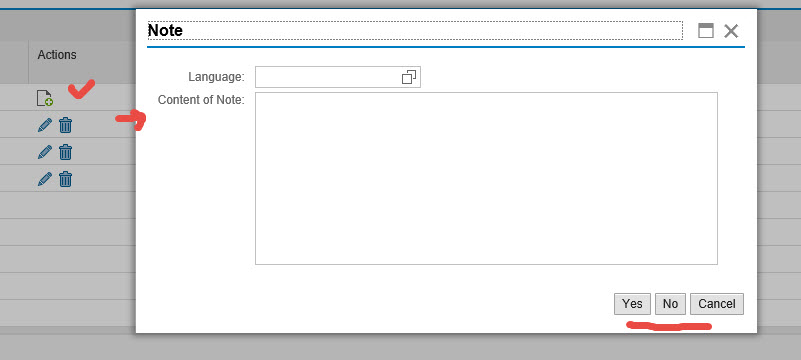

POP up Displays YES, NO & CANCEL button

7
