SD Copy Control Use – Part1

37

The post describes what is the importance of copy control in SD process.



Any sales order type which is created in Tx- VOV8 is assigned to a billing type( billing type is created in Tx- VOFA ). Now when you bill a sales order of a particular type, it doesn’t create billing document with the billing type until unless a copy control is maintained between the sales order type and billing type with the correct item category in Tx- VTFA. The post describes the importance of copy control in SD process from sales order creation to billing.

We have a sales order type defined in tx- VOV8

29

Order types as – ORB. Double click on the row for details.

30

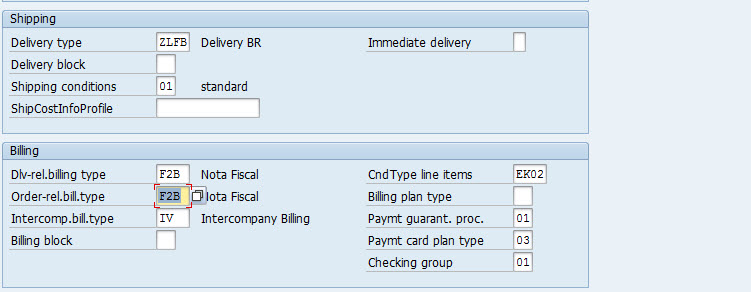

Sales Order type – ORB detailed screen. Here we have maintained billing type is – F2B

3132

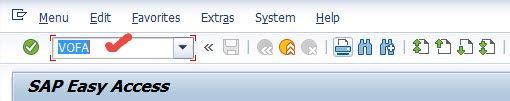

We have a billing type defined in tx- VOFA

33

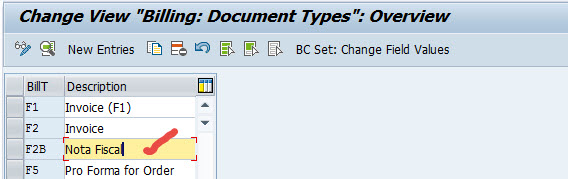

Choose F2B and double click on it.

34

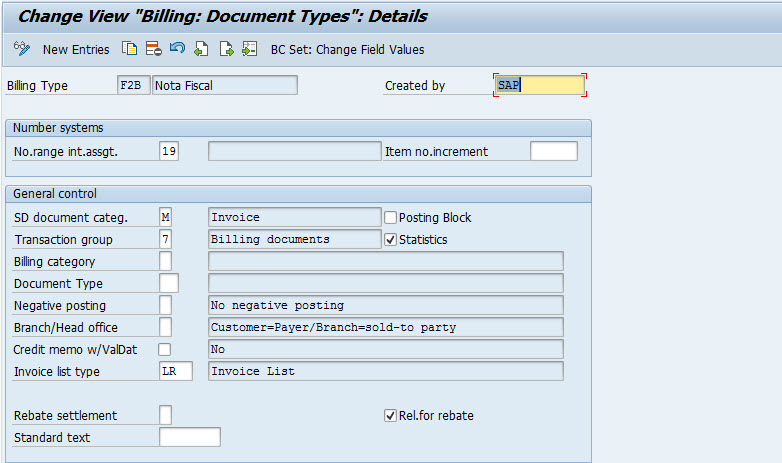

The detailed screen of billing type – F2B

35


We have Item category type defined in tx- VOV7

25

Choose Item category as – TAD & Double click on it.

26

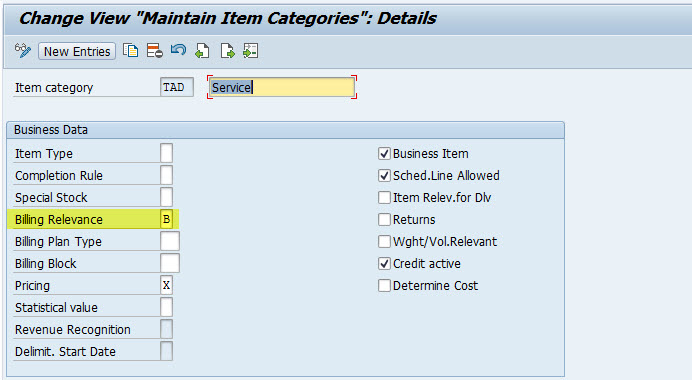

The billing relevance is B and the F4 options tells that we B – is a order related billing not a delivery relevant billing.

2728


The test is we have to create a sales order of type ORB with a material having item category TAD and then we will  bill it and the billing type is F2B( till now we have not defined the copy control between the F2B and ORB with item category as TAD.

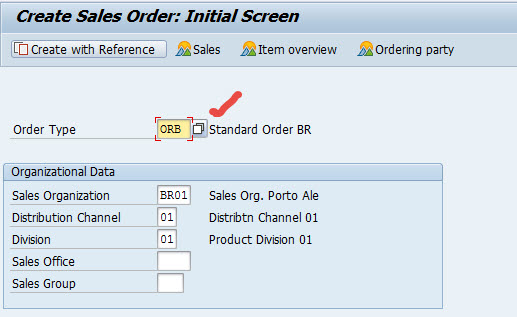

Go to Tx- VA01 and provide the sales order type as ORB

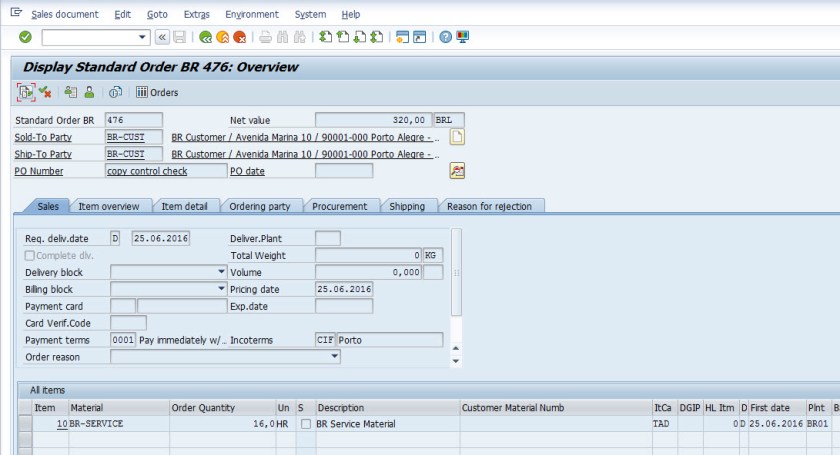

provided a sold to party and material whose item category is TAD and sales order 476 is created. Now bill it( as the item category says it is a order related billing not delivery related billing, so no need to create a delivery).

20

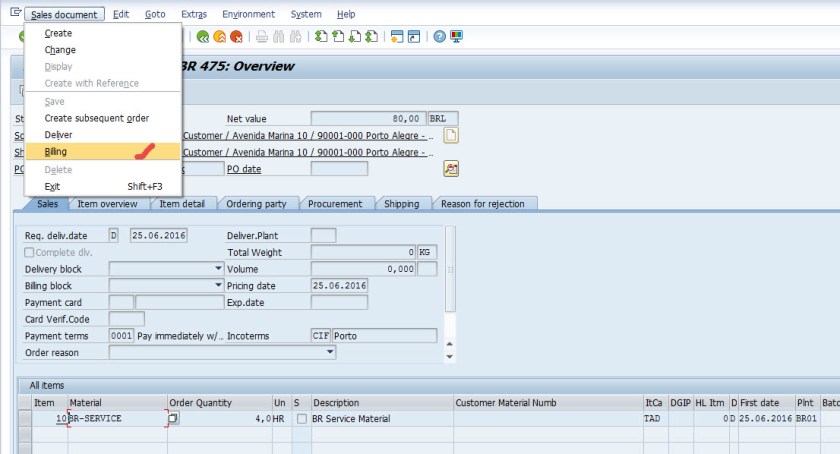

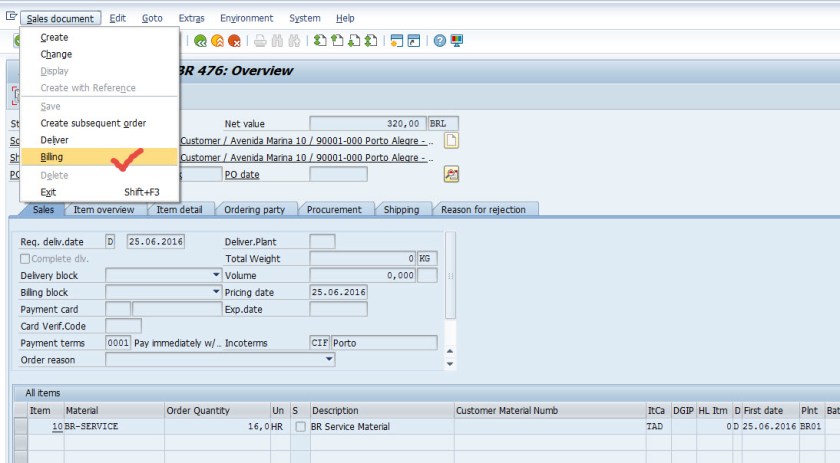

Create billing for the sales order.

21

Opps. The billing initial screen shows processing status as INCORRECT and the status message says to see the log.

22

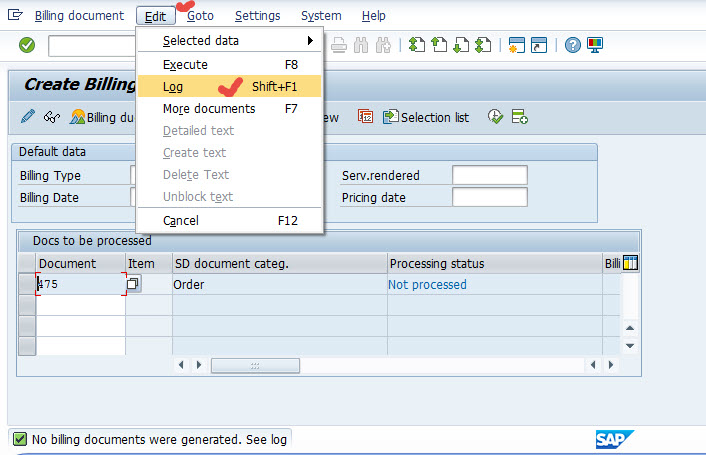

Check the Log from EDIT menu.

23

So the error says ” sales document type ORB can’t be invoiced with billing type  F2B”. The error meaning is quite simple we have not maintained Copy Control for billing type F2B & sales order type- ORB

24

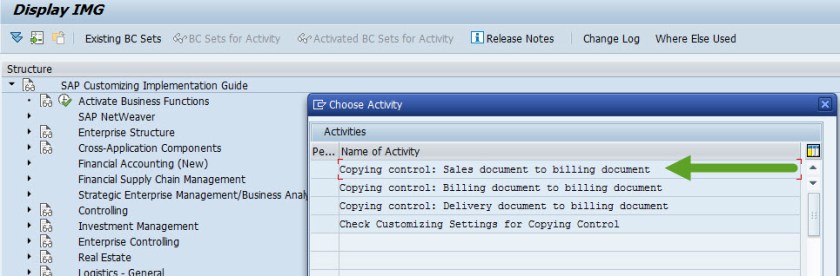

Go to Tx- SPRO and navigate along the highlighted path.

1

Choose – Copying Control: Sales Document to Billing Document

2

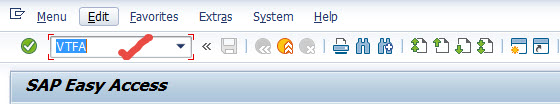

Or directly go to Tx- VTFA

36

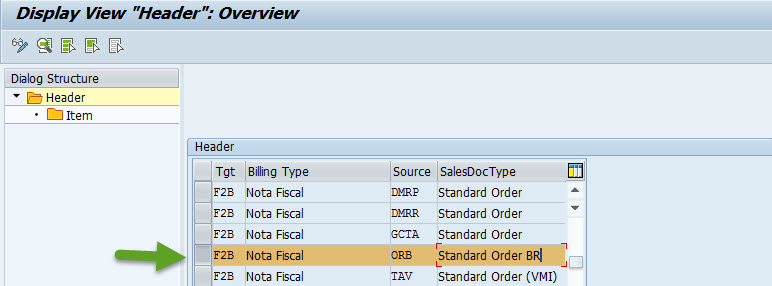

Create a new entry here. target as F2B and source as ORB

3

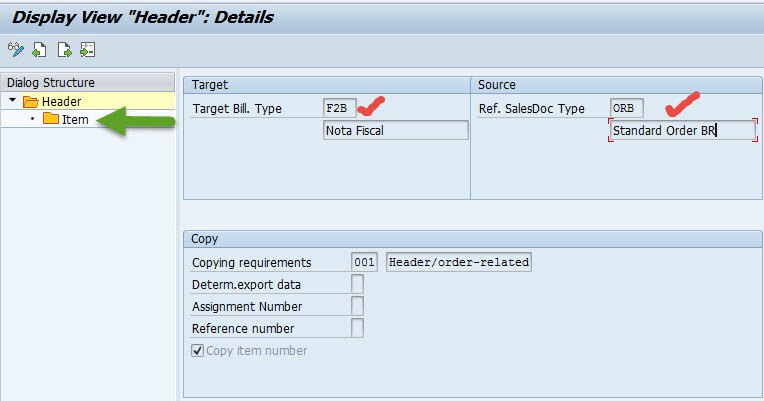

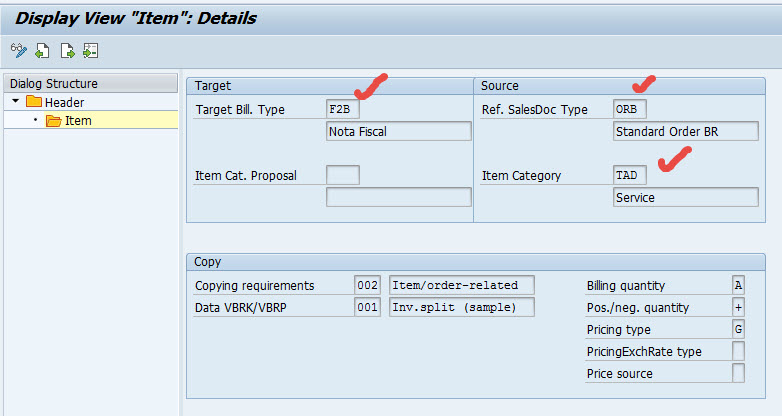

Provide below details as shown and go to items.

4

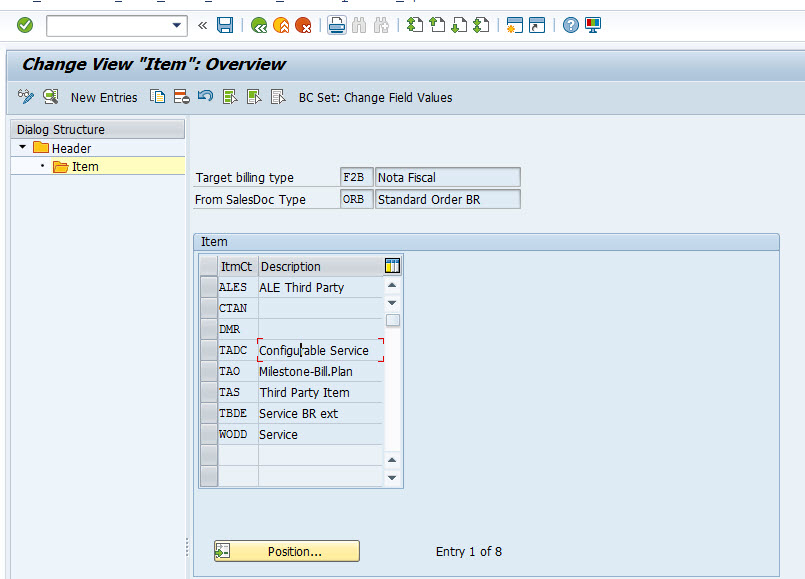

Maintain some item categories: don’t maintain TAD item category.

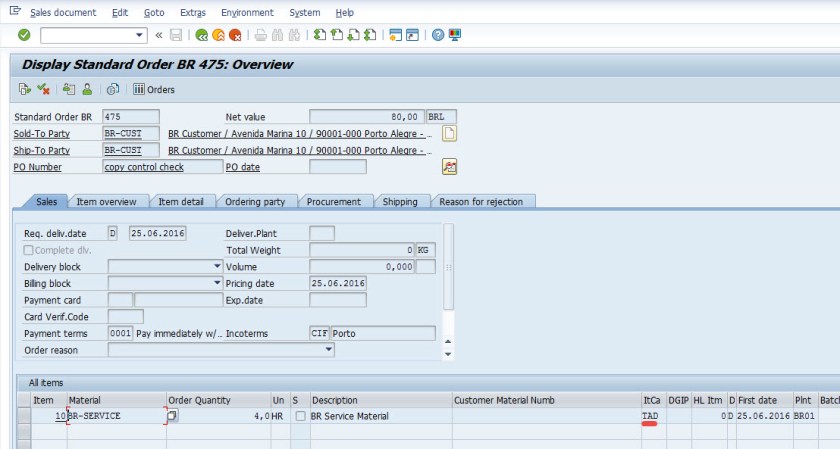

Now create a sales order and bill it.

61415

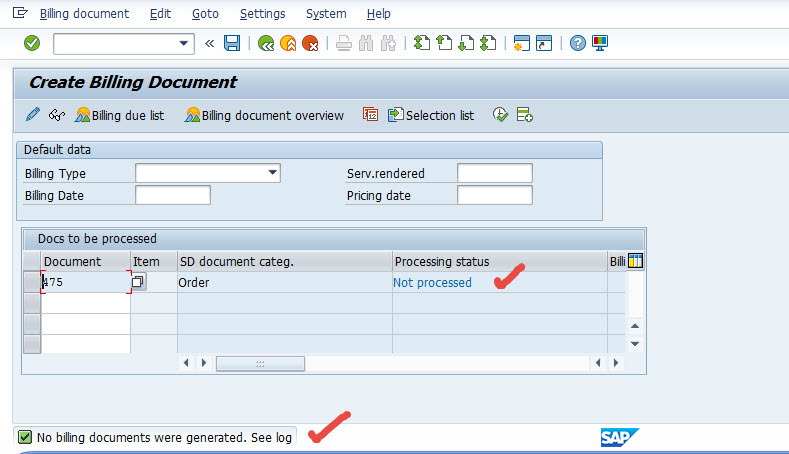

Still we have the error in billing creation. Check the log.

1617

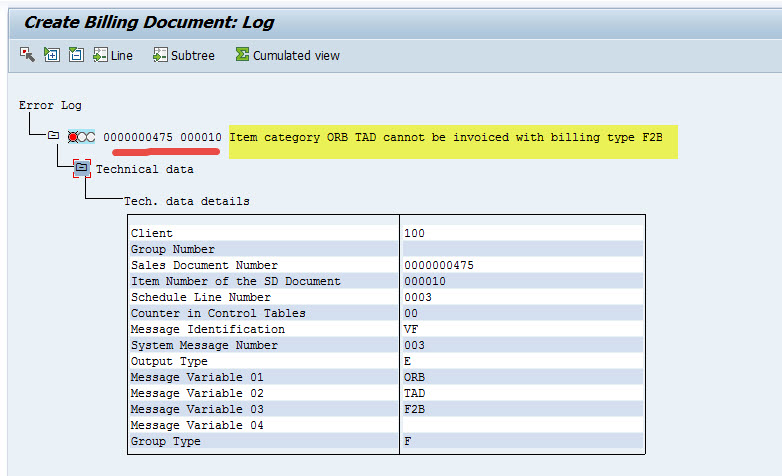

Now this time it is able to create a billing type F2B for the order type ORB but the item category is not allowed (TAD) as this is not  maintained in the copy control.

18

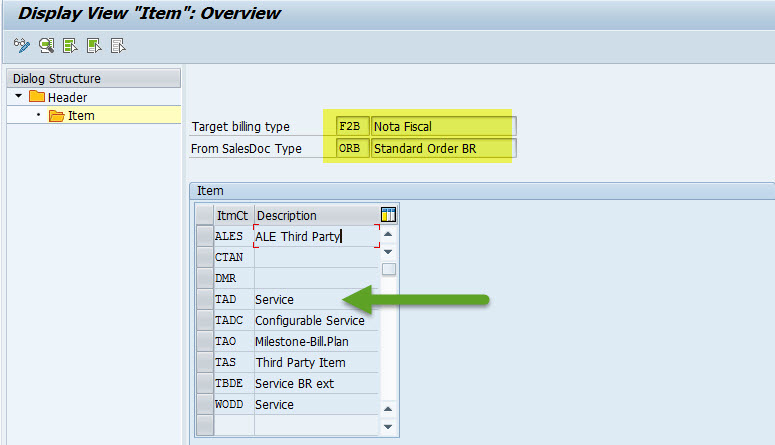

In in the copy control add the item category TAD.

34

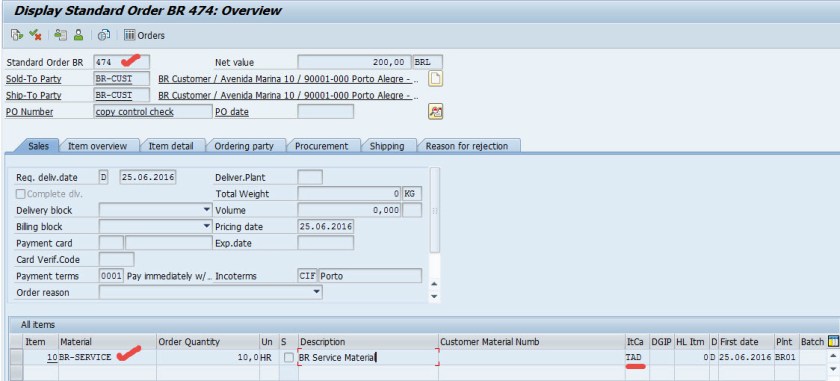

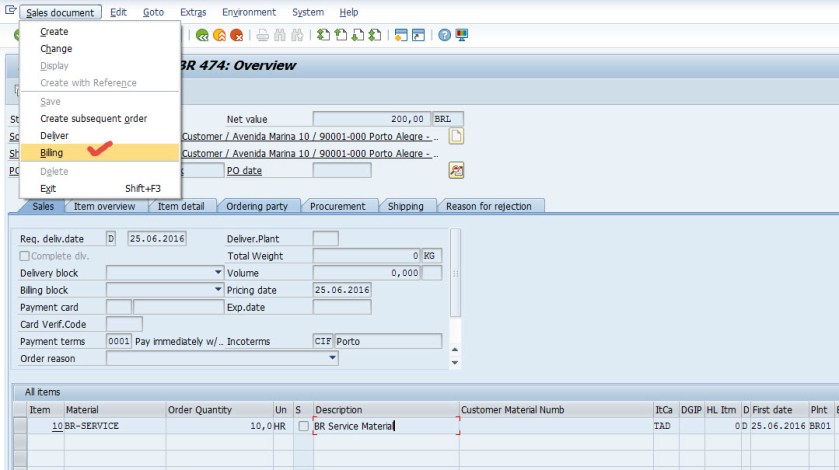

Now create sales order and bill it.

6789

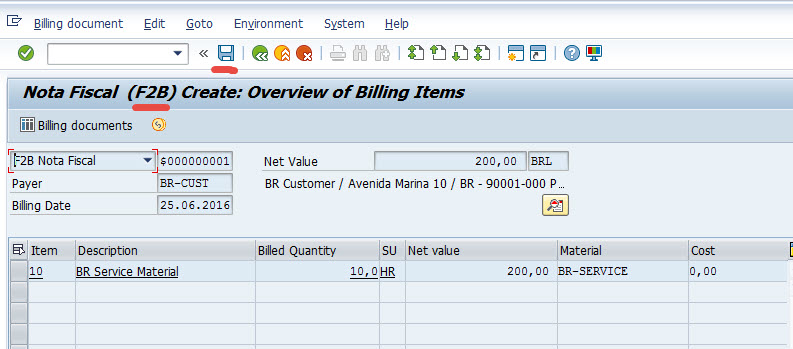

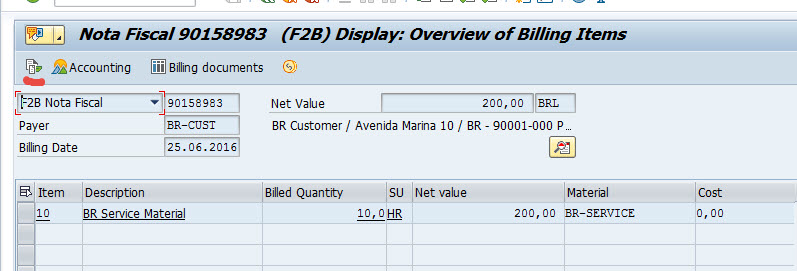

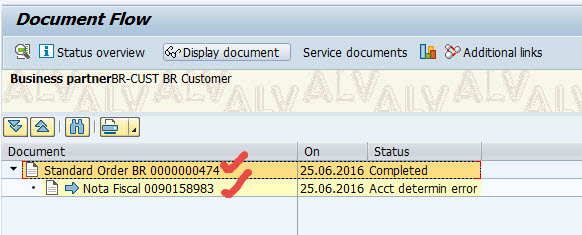

The billing document is created without any error.

1011
