Enable multiple view option in list UIBB

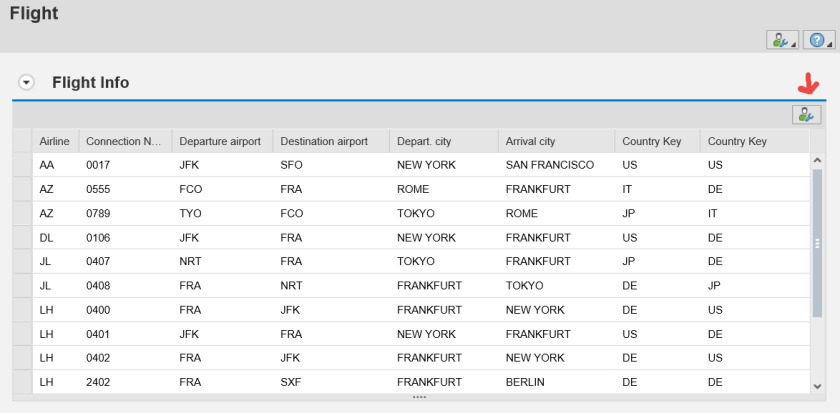

Here we have the list UIBB displayed in an OVP FPM application containing the personalization button.

1

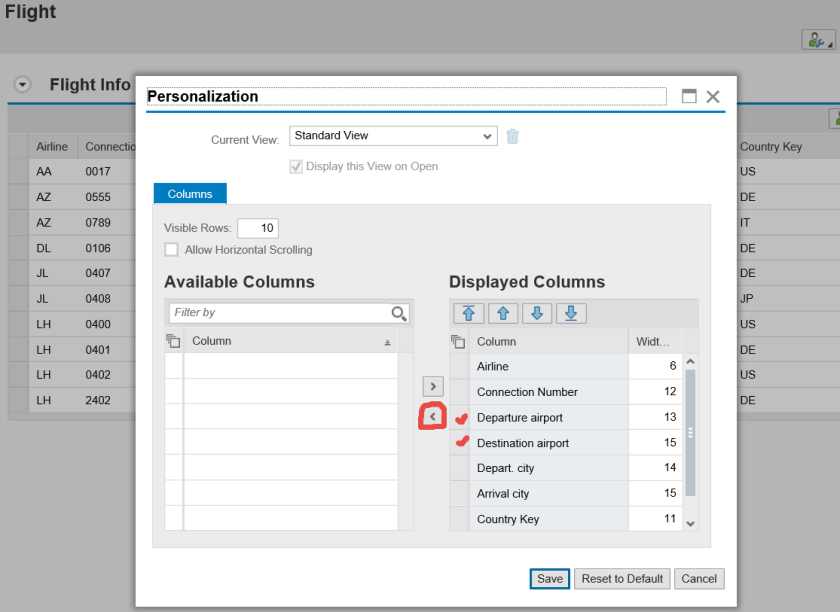

In personalization, here only one view Standard view is given. Here the user can add or remove the fields and Save the standard view and accordingly the list fields will be displayed/hidden. But the user can’t create multiple view what we call different layouts in the ALV grid.

2

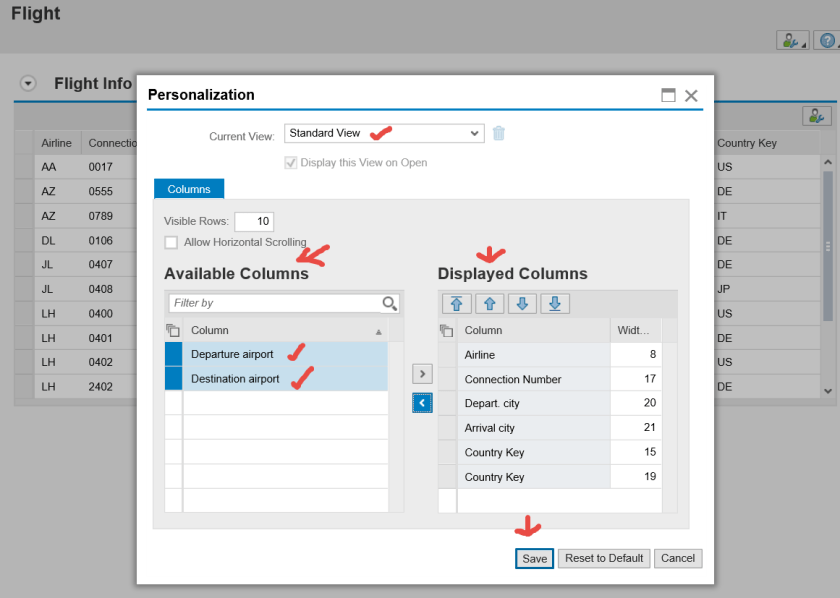

User can move selected fields from displayed column section to Available column section . And Save the standard view.

3

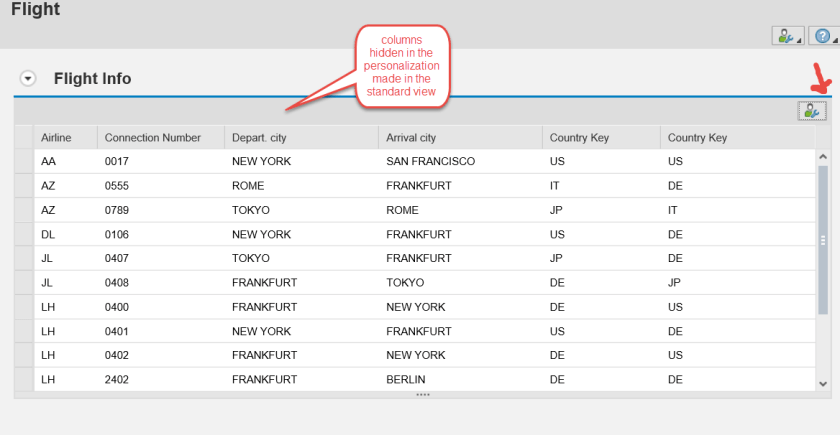

Accordingly list uibb columns appeared.

4

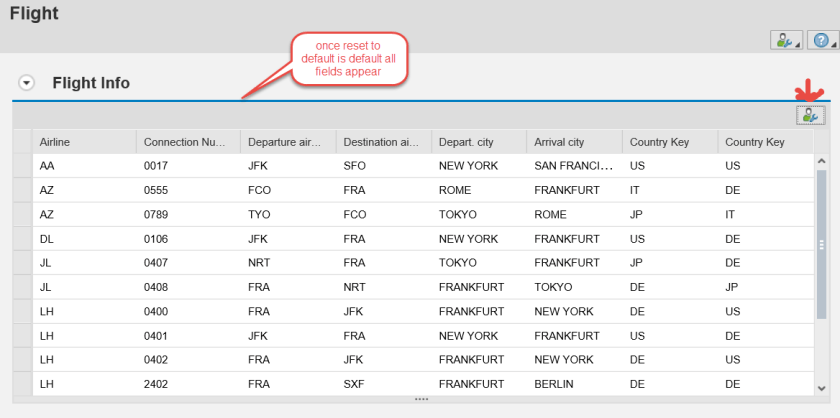

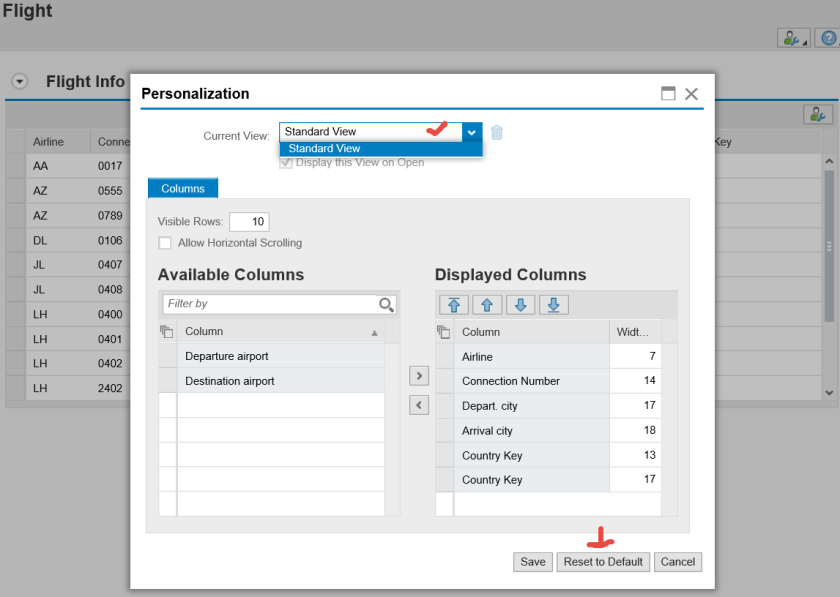

Once reset to default, it takes the original standard view settings.

56

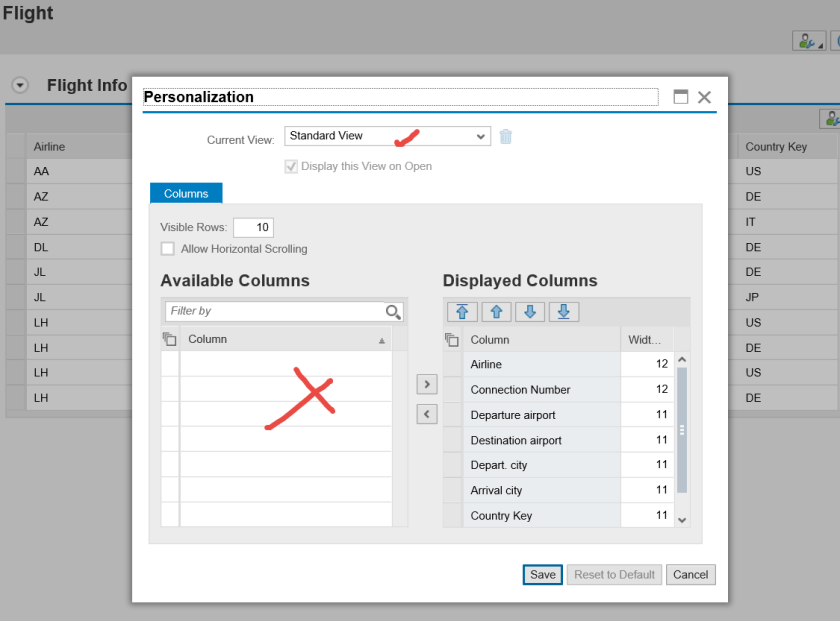

Now here the user just adds or removes fields to the existing standard view but can’t create a new view. But it is quite possible to create new view(s) which should be allowed in the list uibb configuration general settings.

7

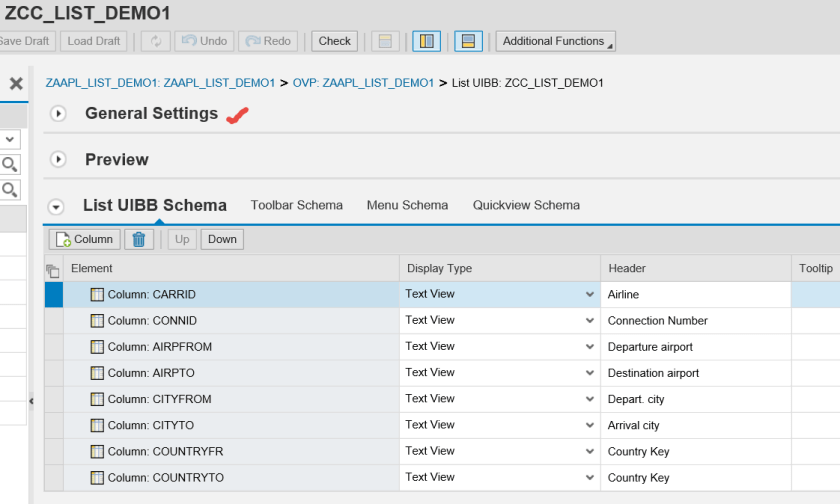

Open the list UIBB general settings section.

8

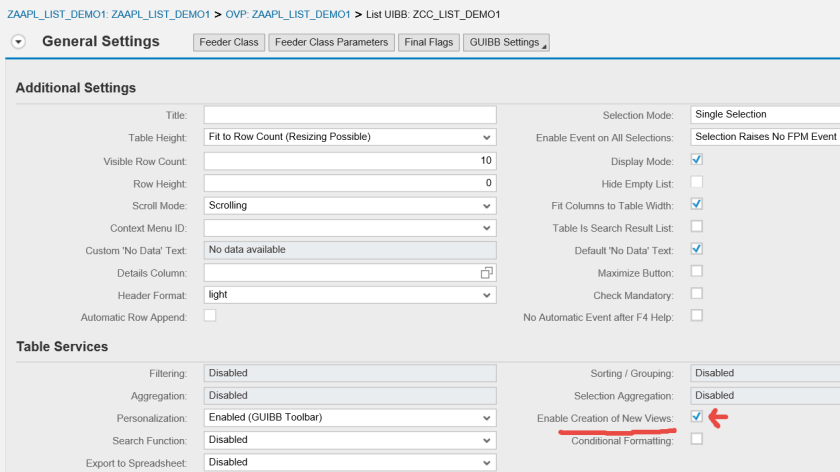

Here select the check box against   ” Enable Creation of New View “. Save the configuration.

9

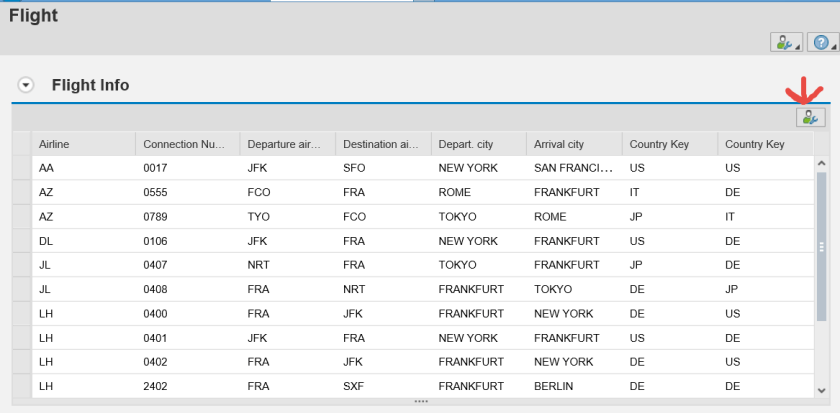

Now test the application and open personalization.

10

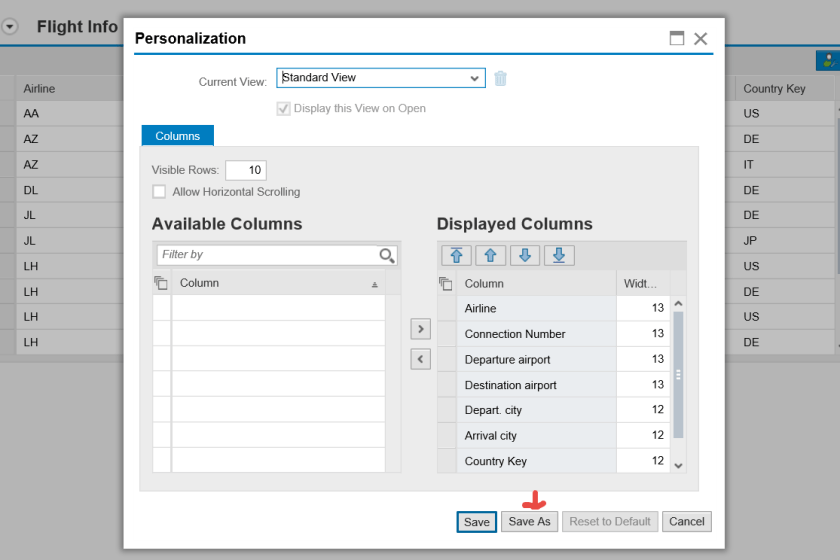

Now here we find SAVE AS button.

11

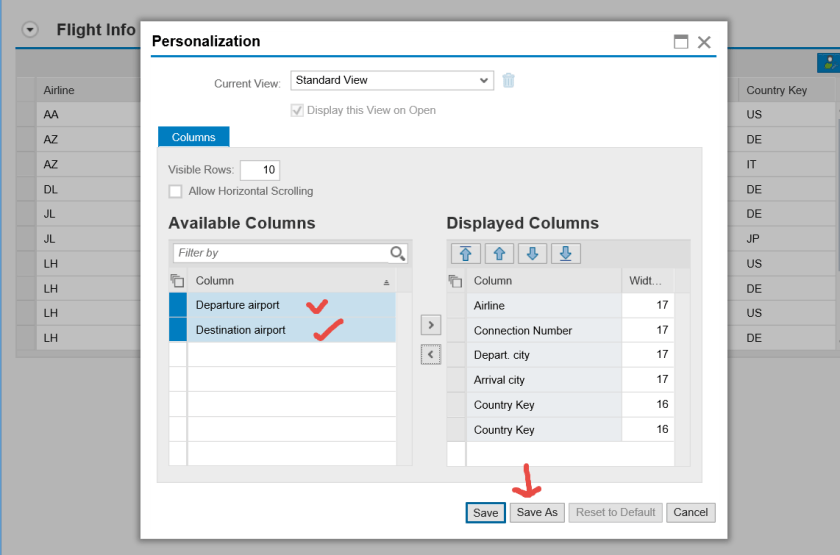

You can set the fields as desired and click on SAVE AS button.

12

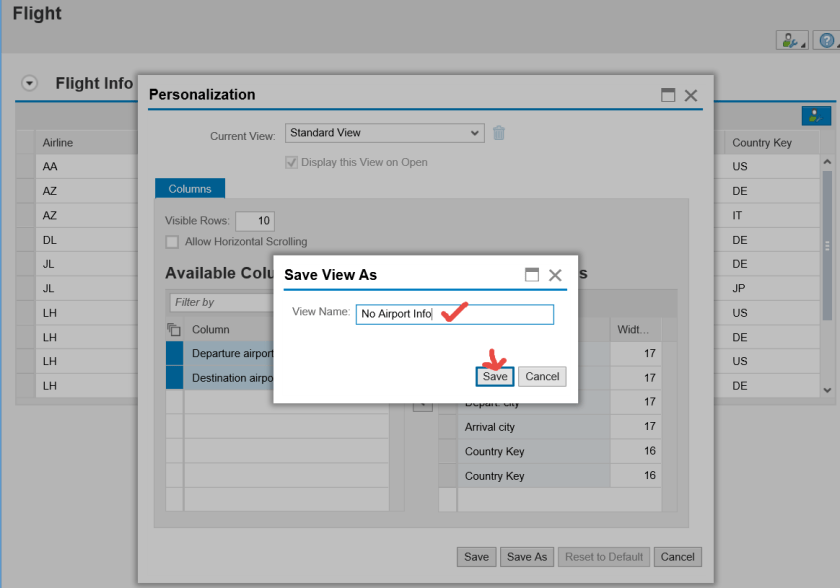

It asks to provide a view name and SAVE.

13

So a new view is created .

14

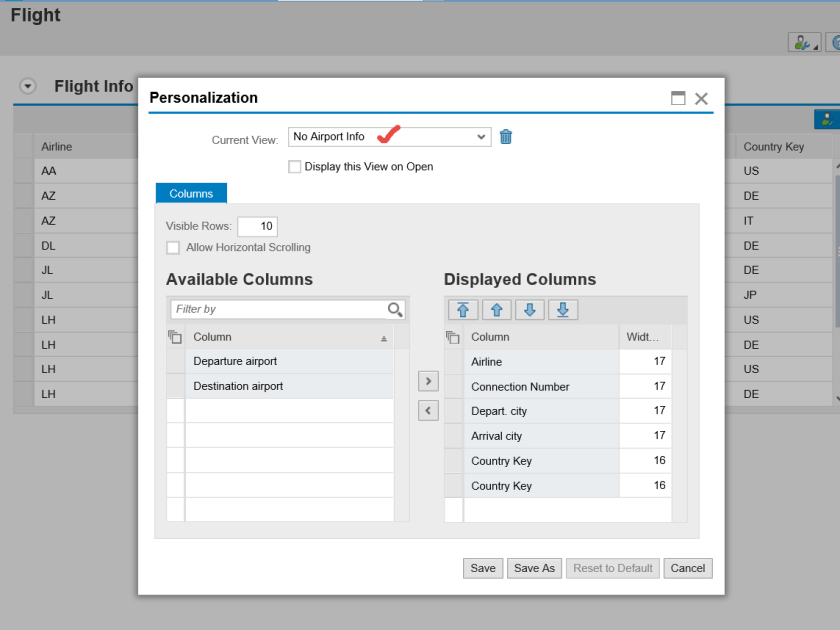

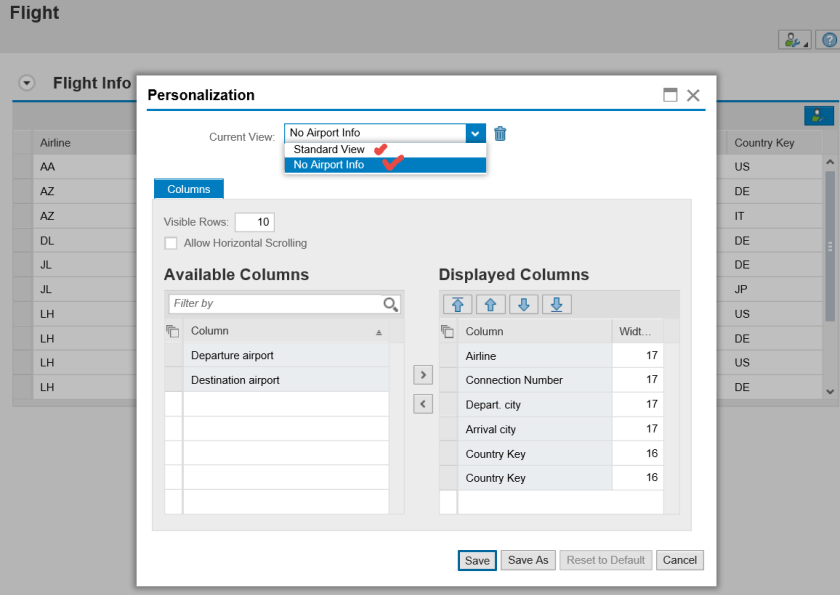

Now we have two views including the standard.

15

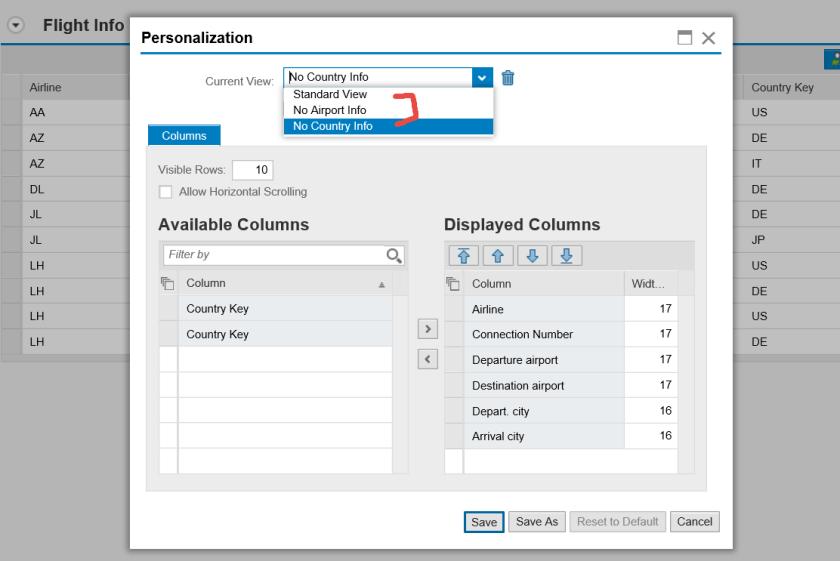

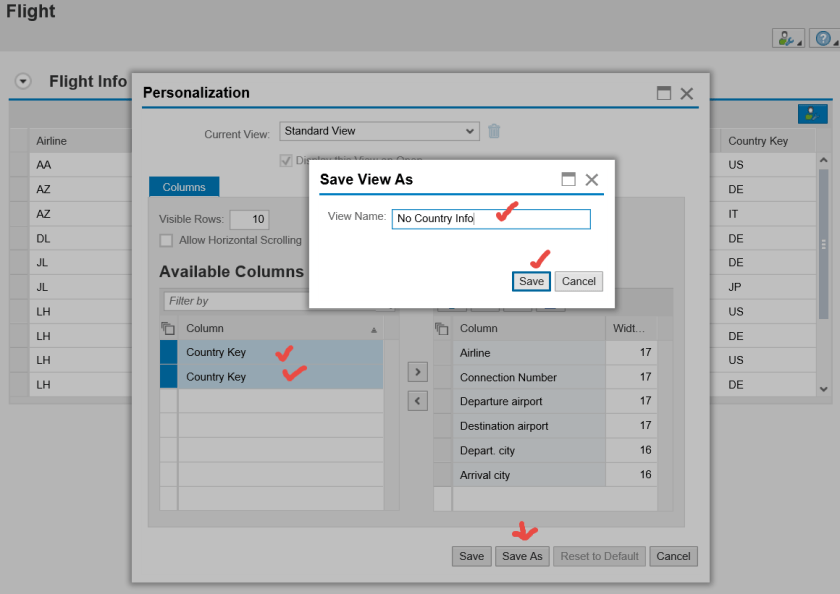

Also you can create even more when the list fields are quite large.

1617

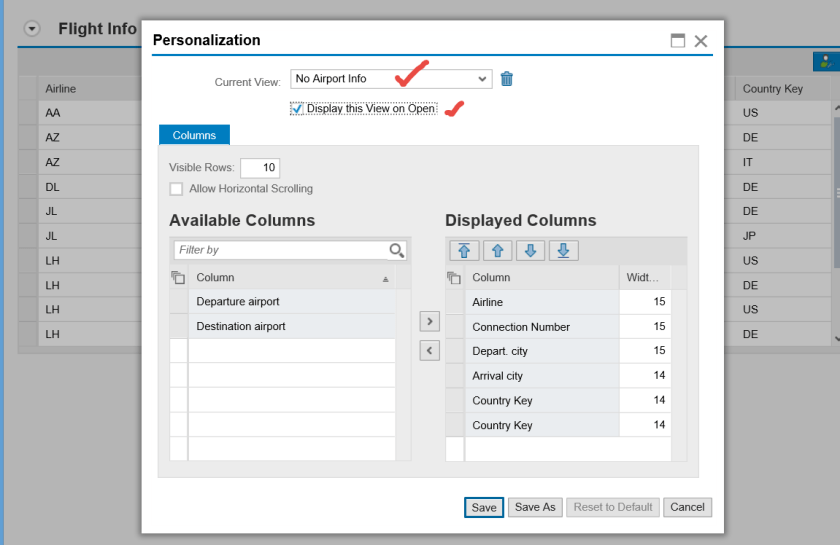

You can set which view should be appear when the list is loaded for the first time.

18

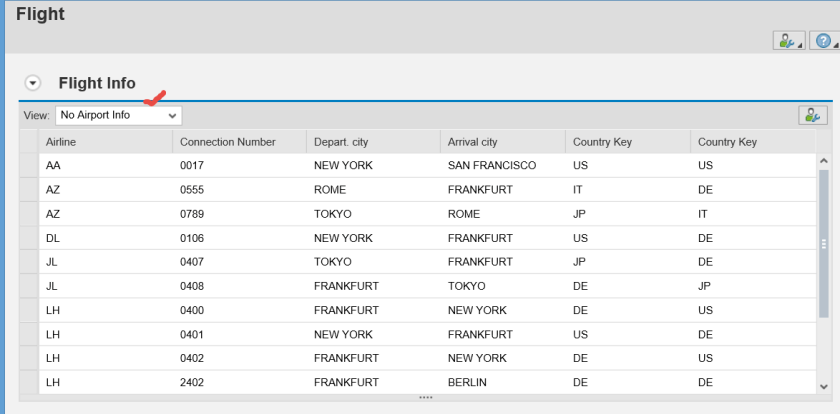

Now test the application. The View marked as  “DISPLAY this view on OPEN” appears when the list is loaded first.

19

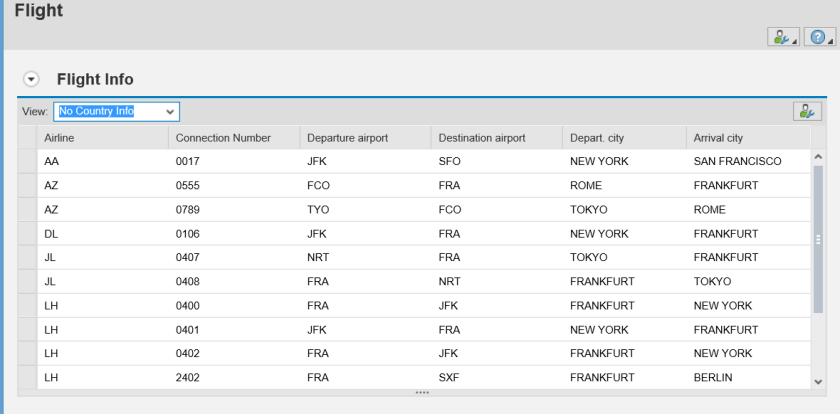

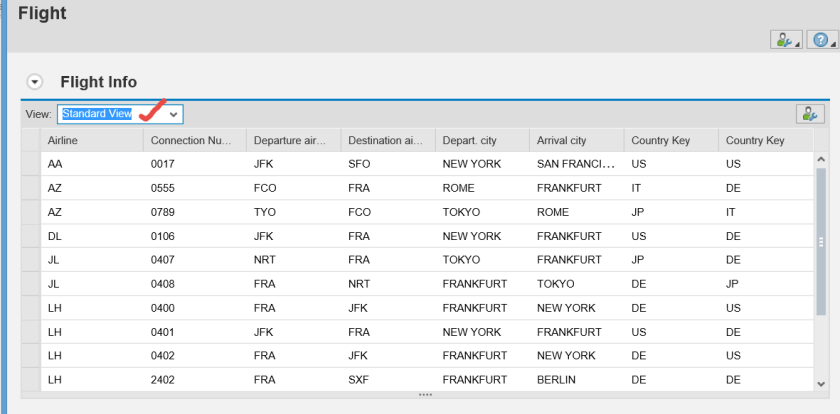

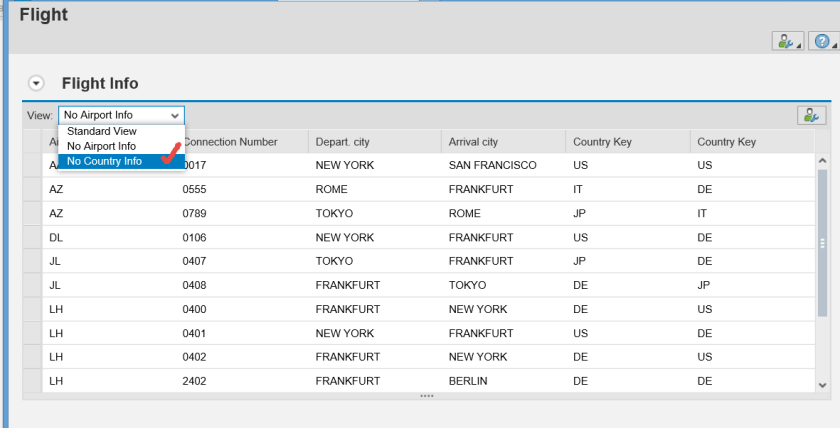

You can change the view and list is adjusted accordingly.

202122
