Dynamically displaying List UIBB configuration in FPM OVP Application


This is the table type used in the LIST UIBB.

5

The structure.

6

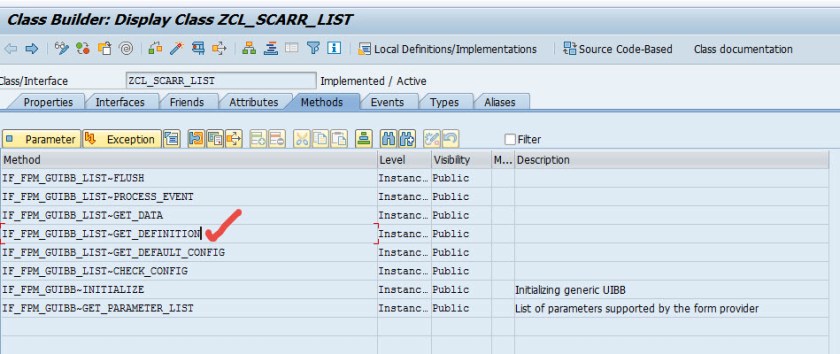

The feeder class. Go to the GET_DEFINITION method.

4

Put the below code.

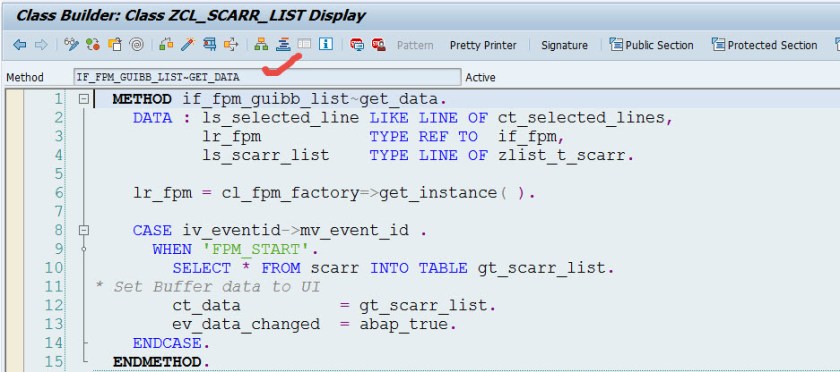

Go  to the GET_DATA method of the feeder class  and put the below code.

8

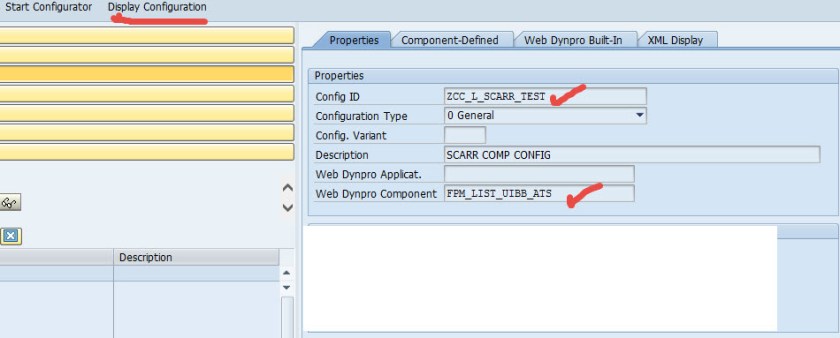

Create a configuration for the list UIBB.

1

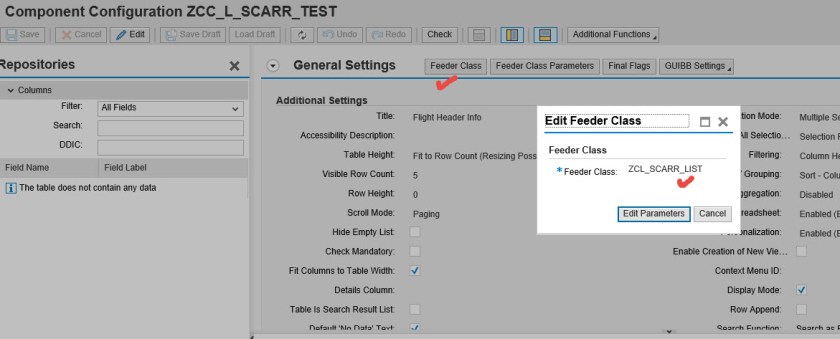

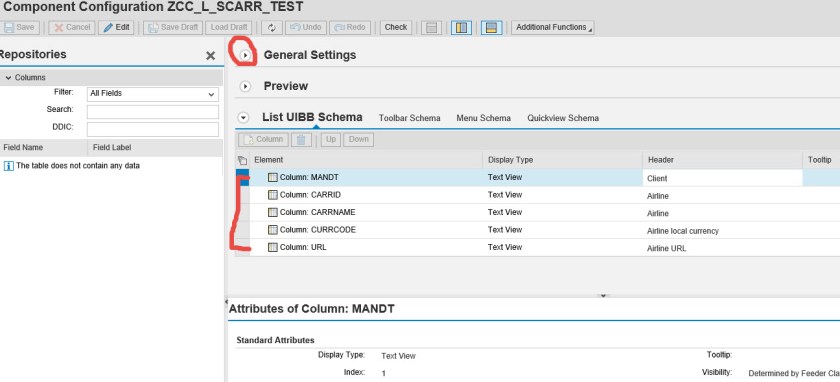

Provide the feeder class and add the needed fields.

2

3

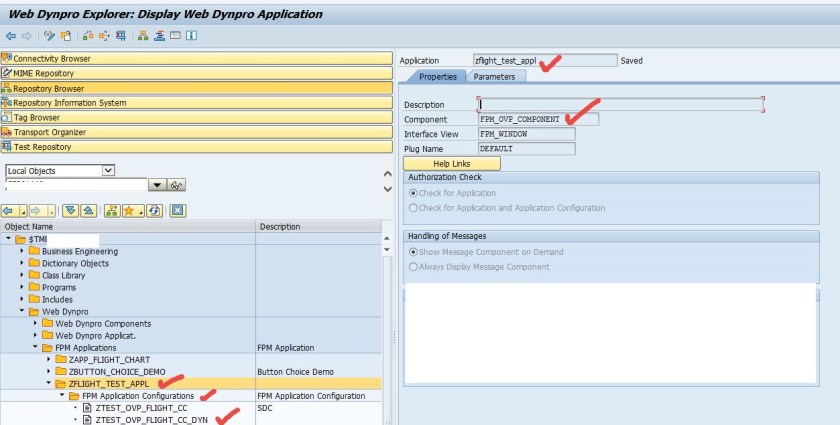

Create an application for the FPM_OVP_APPLCIATION.

9

Create an application configuration  like ZTEST_OVP_FLIGHT_CC_DYN.

9

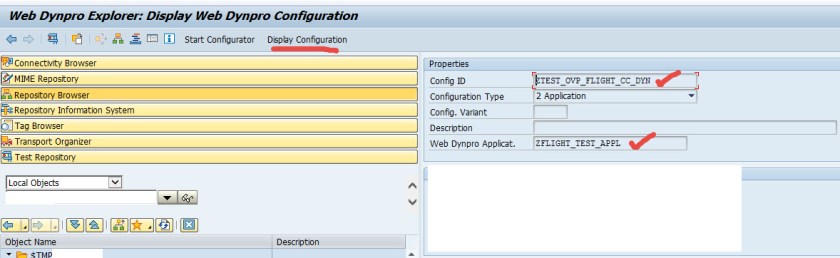

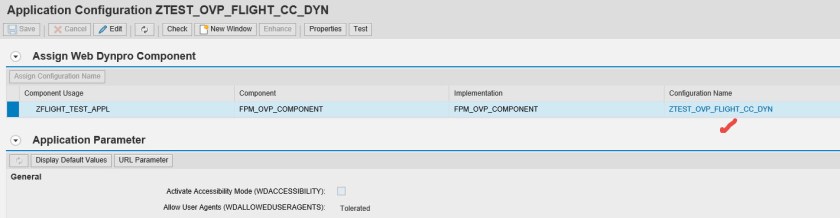

Create the application configuration.

10

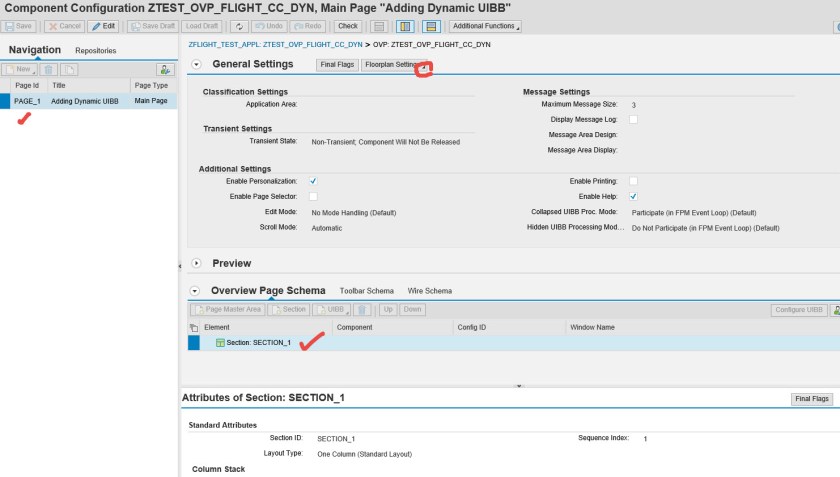

Don’t add any LIST UIBB configuration here as we will add it dynamically.

11

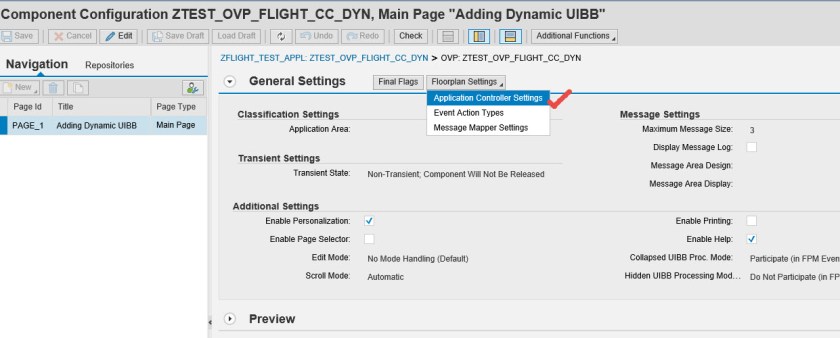

Check the application controller class.

12

13

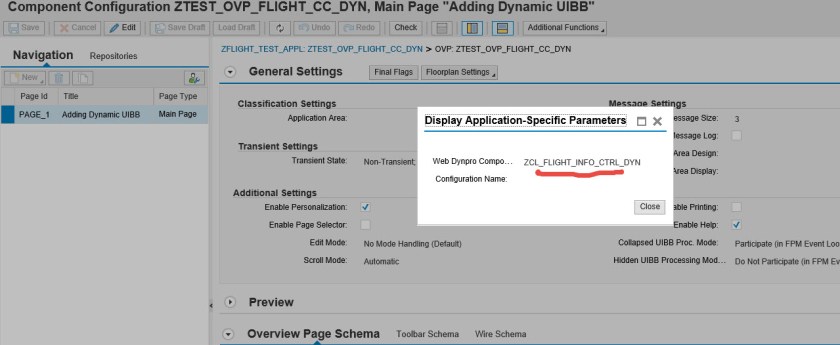

This is the application controller class.

14

Go to the application controller class.

15

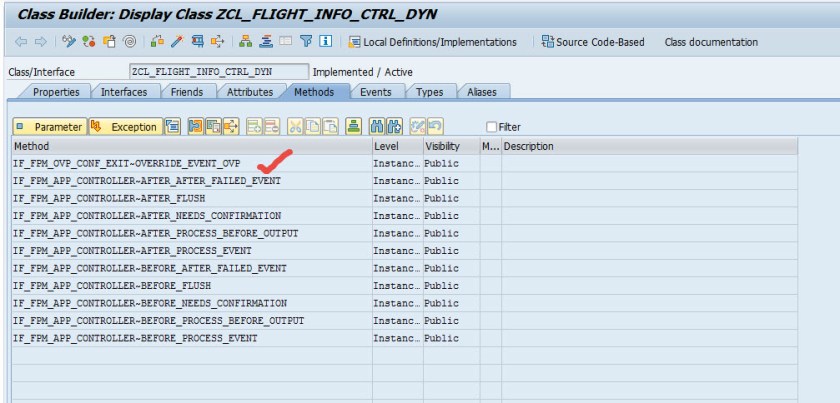

Go to the OVERIRDE_EVENT_OVP method.

16

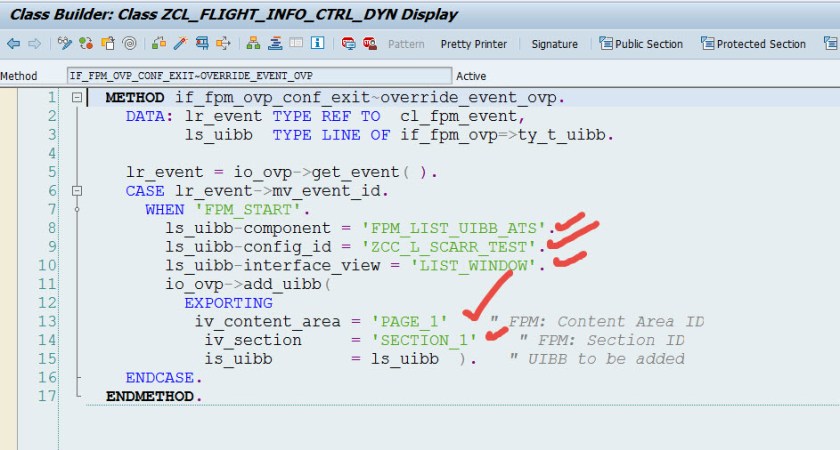

Put the below code and provide the list UIBB configuration here.

17

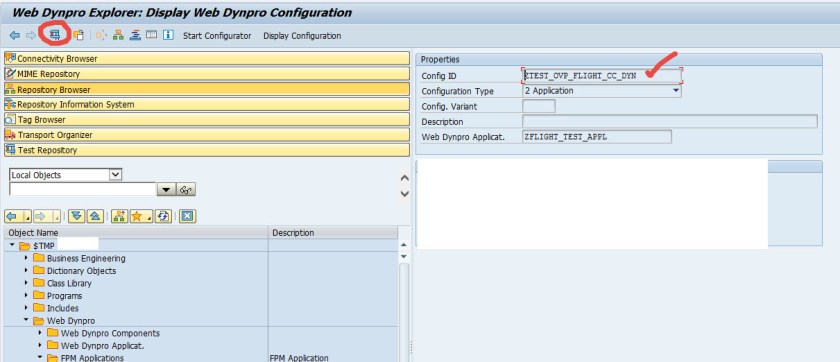

Test the application configuration.

18

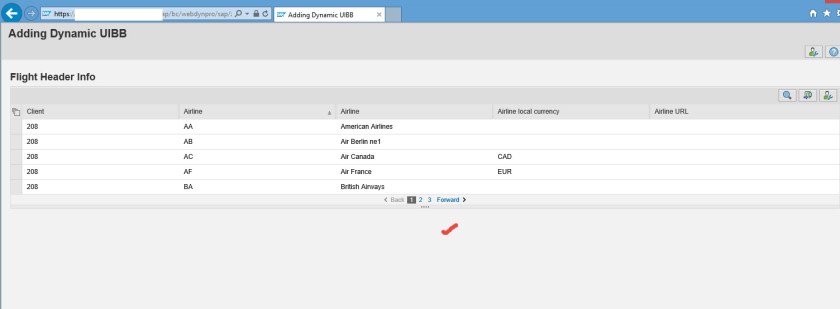

Here the list UIBB appears.

19
