Dynamically Creating buttons on the Global toolbar of the FPM OVP Application




The link: FPM OVP Application -Integrating Header LIST UIBB and ITEMListUIBB provides steps to display list UIBBs.

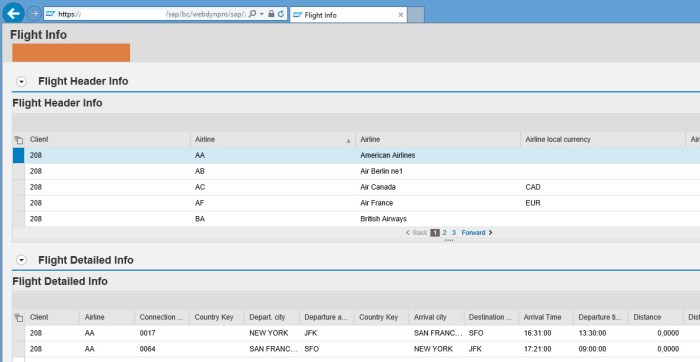

Test the application .

14

Now we have to add some button on the global toolbar (area marked in red color).


Expand the general setting in the application configuration. From Floorplan setting-> Application controller settings.

6

So here we have the feeder class.7

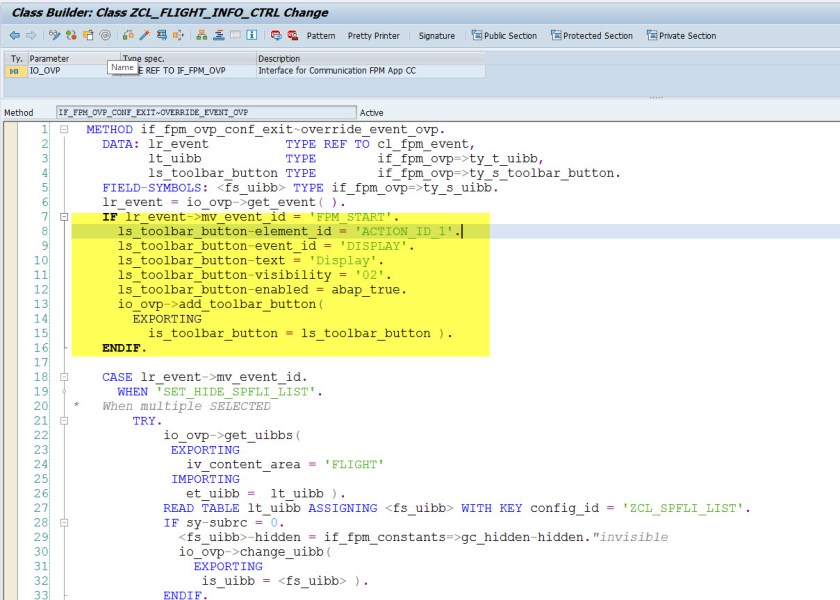

Go to the IF_FPM_OVP_CONF_EXIT~OVERRIDE_EVENT_OVP  method of the application controller class.


Put the below code as highlighted.

23

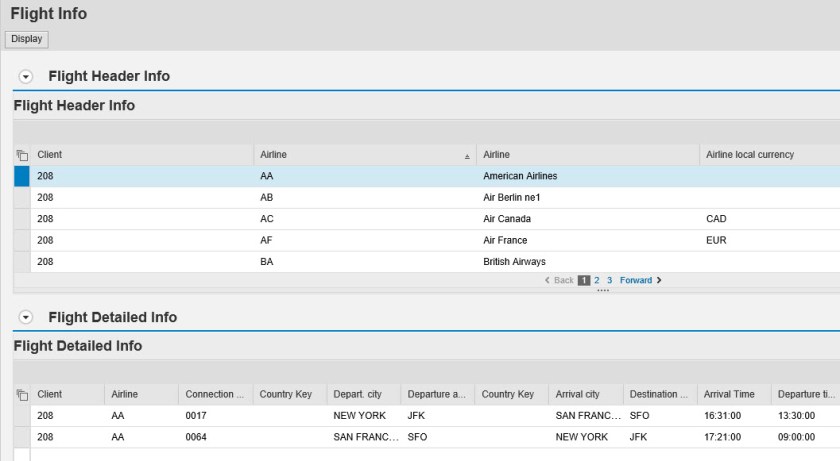

Test the application. So we have the button now in the global toolbar area.

4

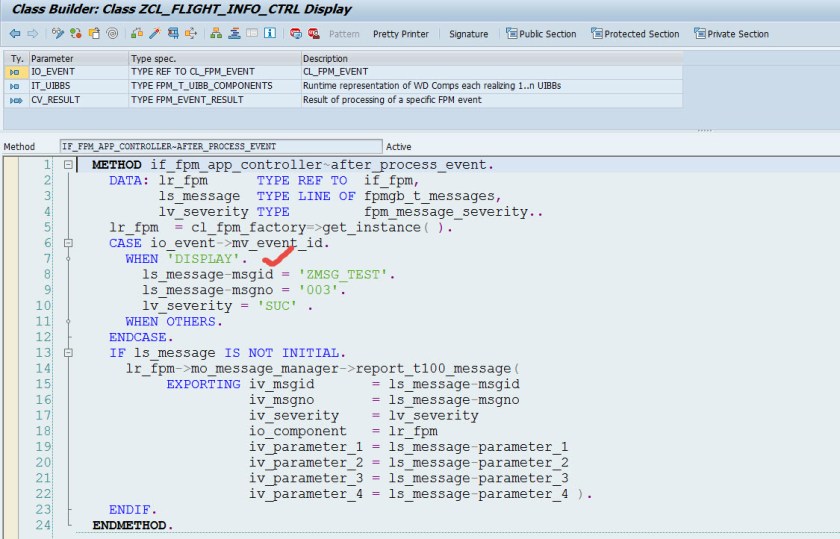

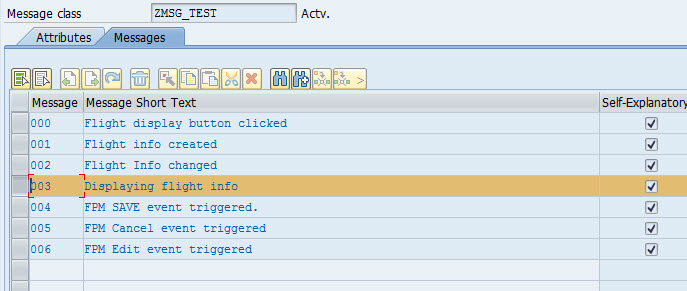

To respond to the button click. Put the code in the method AFTER_PROCESS_EVENT

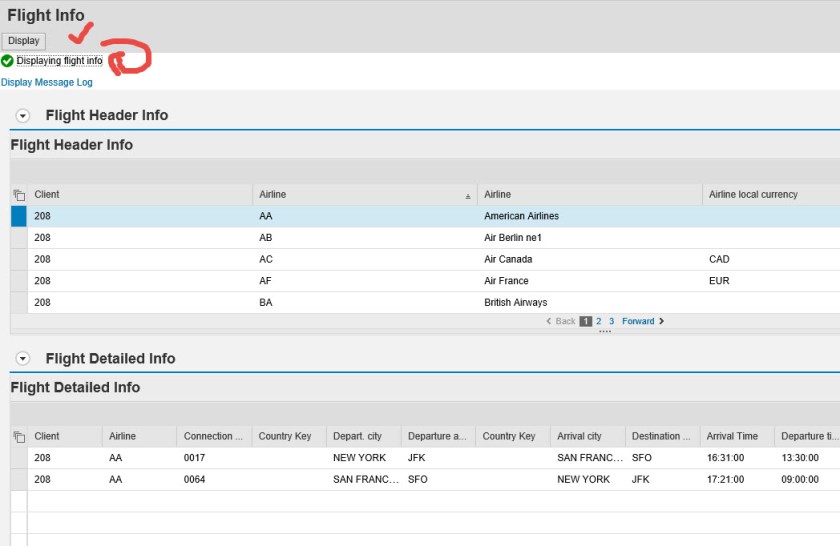

567Now test the application. Once the button is clicked, the message is displayed.

8
