Creating Application Log Object , Sub object & its Uses


 Step1. Create the below table which stores the Employee records.

Step2. Create the below message class in Trax- SE91 with below messages.

Step3. Go to Trax: SM30 and provide the Application Log Name : APPL_LOG & click on the highlighted button.

Step4. Click on continue button.

Step5. This is a view cluster. Now click on the Maintain button.

Step6. Click on the New Entries Button. Provide the Object name & text. Select the Object and double click on the Sub Objects button from the left side panel.

Step7. Provide the three sub object names and their relevant texts & save it.

Each sub object is used for different purposes.

Step8. Go to Trax- SE11 . Open the table BALOBJ. The above created Object is stored in this table.

Step9. Go to Trax- SE11 . Open the table BALSUB. The above created Sub Object is stored in this table.

Step10. Create a Report which allows to create a employee or update a employee or delete a employee record.

To create & display the application  log mostly 4 function modules are used.

1. FM-‘BAL_LOG_CREATE’- Pass the Object and subobject name for which message log is to be created.

2.FM-‘BAL_LOG_MSG_ADD’- Pass the message that needs to be shown .It just adds the message to the memory not to the data base table.

3.FM-‘BAL_DB_SAVE’- Saves the messge to the database table BALHDR.

4.FM-‘BAL_DSP_LOG_DISPLAY’- Used to display the stored application log from the table on the UI.


*&———————————————————————*

*& Report  ZTEST_APPL_LOG

*&———————————————————————*

REPORT  ztest_appl_log.

DATA : ls_ins TYPE  zemp_his,

              ls_upd TYPE  zemp_his,

              ls_del TYPE  zemp_his.


DATA : ls_log TYPE bal_s_log,

             ls_hnd TYPE balloghndl,

             ls_msg TYPE bal_s_msg,

             lt_hnd TYPE bal_t_logh,

             lt_new TYPE bal_t_lgnm.

SELECTION-SCREEN : BEGIN OF BLOCK b1 WITH FRAME TITLE text-001.

PARAMETERS : r1 RADIOBUTTON GROUP g1  USER-COMMAND cmd1 DEFAULT ‘X’ ,

             r2 RADIOBUTTON GROUP g1 ,

             r3 RADIOBUTTON GROUP g1.

SELECTION-SCREEN : END OF BLOCK b1.


SELECTION-SCREEN : BEGIN OF BLOCK b2 WITH FRAME TITLE text-002.

*** new record creation **********

PARAMETERS : p_id_i TYPE zemp_his-emp_id MODIF ID m1,

             p_name_i TYPE zemp_his-name MODIF ID m1,

             p_desg_i TYPE zemp_his-design MODIF ID m1,

             p_doj_i TYPE zemp_his-doj MODIF ID m1,

             p_dept_i TYPE zemp_his-dept MODIF ID m1,

             p_sal_i TYPE zemp_his-salary MODIF ID m1.


*** Updation of existing record **********

PARAMETERS : p_id_u TYPE zemp_his-emp_id MODIF ID m2,

             p_desg_u TYPE zemp_his-design MODIF ID m2,

             p_dop_u TYPE zemp_his-dop MODIF ID m2,

             p_dor_u TYPE zemp_his-dor MODIF ID m2,

             p_dept_u TYPE zemp_his-dept MODIF ID m2,

             p_sal_u TYPE zemp_his-salary MODIF ID m2.


*** deletin of record **********

PARAMETERS : p_id_d TYPE zemp_his-emp_id MODIF ID m3.


SELECTION-SCREEN : END OF BLOCK b2.

AT SELECTION-SCREEN OUTPUT.


LOOP AT SCREEN .

    IF r1 = ‘X’.

      IF screen-group1 = ‘M2’  OR screen-group1 = ‘M3’.

        screen-active = 0.

        screen-input = 0.

        screen-output = 0.

        screen-invisible = 1.

      ENDIF.

    ELSEIF r2 = ‘X’.

      IF screen-group1 = ‘M1’  OR screen-group1 = ‘M3’.

        screen-active = 0.

        screen-output = 0.

        screen-input = 0.

        screen-invisible = 1.

      ENDIF.

    ELSEIF r3 = ‘X’.

      IF screen-group1 = ‘M1’  OR screen-group1 = ‘M2’.

        screen-active = 0.

        screen-input = 0.

        screen-output = 0.

        screen-invisible = 1.

      ENDIF.

    ENDIF.

    MODIFY SCREEN.

  ENDLOOP.

START-OF-SELECTION.

  IF r1 = ‘X’.

    ls_log-object = ‘ZOBJ_EMP’.

    ls_log-subobject = ‘ZSOBJ_INSERT’.


CALL FUNCTION ‘BAL_LOG_CREATE’

      EXPORTING

        i_s_log      = ls_log

      IMPORTING

        e_log_handle = ls_hnd.


ls_ins-emp_id  = p_id_i.

    ls_ins-name  = p_name_i.

    ls_ins-design  = p_desg_i.

    ls_ins-doj  = p_doj_i.

    ls_ins-dept  = p_dept_i.

    ls_ins-salary  = p_sal_i .

    INSERT into zemp_his values ls_ins.


IF sy-subrc = 0.

      ls_msg-msgty = ‘S’.

      ls_msg-msgid = ‘ZLOG_MSG’.

      ls_msg-msgno = ‘001’.

      ls_msg-msgv1 = ls_ins-emp_id .


CALL FUNCTION ‘BAL_LOG_MSG_ADD’

        EXPORTING

          i_log_handle = ls_hnd

          i_s_msg      = ls_msg.


ELSE.

      ls_msg-msgty = ‘E’.

      ls_msg-msgid = ‘ZLOG_MSG’.

      ls_msg-msgno = ‘002’.

      ls_msg-msgv1 = ls_ins-emp_id .


CALL FUNCTION ‘BAL_LOG_MSG_ADD’

        EXPORTING

          i_log_handle = ls_hnd

          i_s_msg      = ls_msg.

    ENDIF.


APPEND ls_hnd TO lt_hnd.

    CALL FUNCTION ‘BAL_DB_SAVE’

    EXPORTING

*      I_CLIENT               = SY-MANDT

*      I_IN_UPDATE_TASK       = ‘ ‘

*      I_SAVE_ALL             = ‘ ‘

       i_t_log_handle         = lt_hnd

   IMPORTING

     e_new_lognumbers       = lt_new.


IF sy-subrc = 0.

      CALL FUNCTION ‘BAL_DSP_LOG_DISPLAY’

        EXPORTING

          i_t_log_handle = lt_hnd.

    ENDIF.

    CLEAR ls_ins.

  ELSEIF r2 = ‘X’.

    ls_log-object = ‘ZOBJ_EMP’.

    ls_log-subobject = ‘ZSOBJ_UPDATE’.


CALL FUNCTION ‘BAL_LOG_CREATE’

      EXPORTING

        i_s_log      = ls_log

      IMPORTING

        e_log_handle = ls_hnd.


ls_upd-emp_id  = p_id_u.

    ls_upd-design  = p_desg_u.

    ls_upd-dop  = p_dop_u.

    ls_upd-dor  = p_dor_u.

    ls_upd-dept  = p_dept_u.

    ls_ins-salary  = p_sal_u .

    UPDATE zemp_his FROM ls_upd.


IF sy-subrc = 0.

      ls_msg-msgty = ‘S’.

      ls_msg-msgid = ‘ZLOG_MSG’.

      ls_msg-msgno = ‘003’.

      ls_msg-msgv1 = ls_upd-emp_id .


CALL FUNCTION ‘BAL_LOG_MSG_ADD’

        EXPORTING

          i_log_handle = ls_hnd

          i_s_msg      = ls_msg.


ELSE.

      ls_msg-msgty = ‘E’.

      ls_msg-msgid = ‘ZLOG_MSG’.

      ls_msg-msgno = ‘004’.

      ls_msg-msgv1 = ls_upd-emp_id .


CALL FUNCTION ‘BAL_LOG_MSG_ADD’

        EXPORTING

          i_log_handle = ls_hnd

          i_s_msg      = ls_msg.

    ENDIF.


APPEND ls_hnd TO lt_hnd.


CALL FUNCTION ‘BAL_DB_SAVE’

    EXPORTING

*      I_CLIENT               = SY-MANDT

*      I_IN_UPDATE_TASK       = ‘ ‘

*      I_SAVE_ALL             = ‘ ‘

       i_t_log_handle         = lt_hnd

   IMPORTING

     e_new_lognumbers       = lt_new.


IF sy-subrc = 0.

      CALL FUNCTION ‘BAL_DSP_LOG_DISPLAY’

        EXPORTING

          i_t_log_handle = lt_hnd.

    ENDIF.

    CLEAR ls_upd.

  ELSEIF r3 = ‘X’.

    ls_log-object = ‘ZOBJ_EMP’.

    ls_log-subobject = ‘ZSOBJ_DELETE’.


CALL FUNCTION ‘BAL_LOG_CREATE’

      EXPORTING

        i_s_log      = ls_log

      IMPORTING

        e_log_handle = ls_hnd.


ls_del-emp_id  = p_id_d.

    DELETE zemp_his  FROM ls_del.


IF sy-subrc = 0.


ls_msg-msgty = ‘S’.

      ls_msg-msgid = ‘ZLOG_MSG’.

      ls_msg-msgno = ‘005’.

      ls_msg-msgv1 = ls_del-emp_id .


CALL FUNCTION ‘BAL_LOG_MSG_ADD’

        EXPORTING

          i_log_handle = ls_hnd

          i_s_msg      = ls_msg.


ELSE.


ls_msg-msgty = ‘E’.

      ls_msg-msgid = ‘ZLOG_MSG’.

      ls_msg-msgno = ‘006’.

      ls_msg-msgv1 = ls_del-emp_id .


CALL FUNCTION ‘BAL_LOG_MSG_ADD’

        EXPORTING

          i_log_handle = ls_hnd

          i_s_msg      = ls_msg.

    ENDIF.


APPEND ls_hnd TO lt_hnd.


CALL FUNCTION ‘BAL_DB_SAVE’

    EXPORTING

*      I_CLIENT               = SY-MANDT

*      I_IN_UPDATE_TASK       = ‘ ‘

*      I_SAVE_ALL             = ‘ ‘

       i_t_log_handle         = lt_hnd

   IMPORTING

     e_new_lognumbers       = lt_new.


IF sy-subrc = 0.

      CALL FUNCTION ‘BAL_DSP_LOG_DISPLAY’

        EXPORTING

          i_t_log_handle = lt_hnd.

    ENDIF.

    CLEAR ls_del.


ENDIF.




Step11. Execute the report. Select the First radio button which allows You to create a New Employee Record. Provide the Employee details and Click on Execute Button.

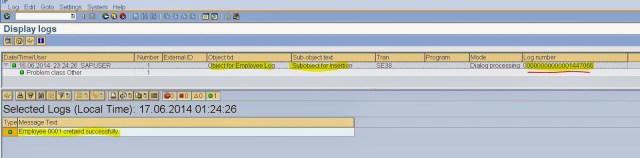

Step12. The below message log is created and displayed on the screen.

Step13. Go to Trax- SE11 . Open the table BALHDR. The above created MSG LOG  is stored in this table.
