XSLT Pgm of Transforming an int table into XML tree using Tx- XSLT_TOOL / STRANS (ABAP-> XML)

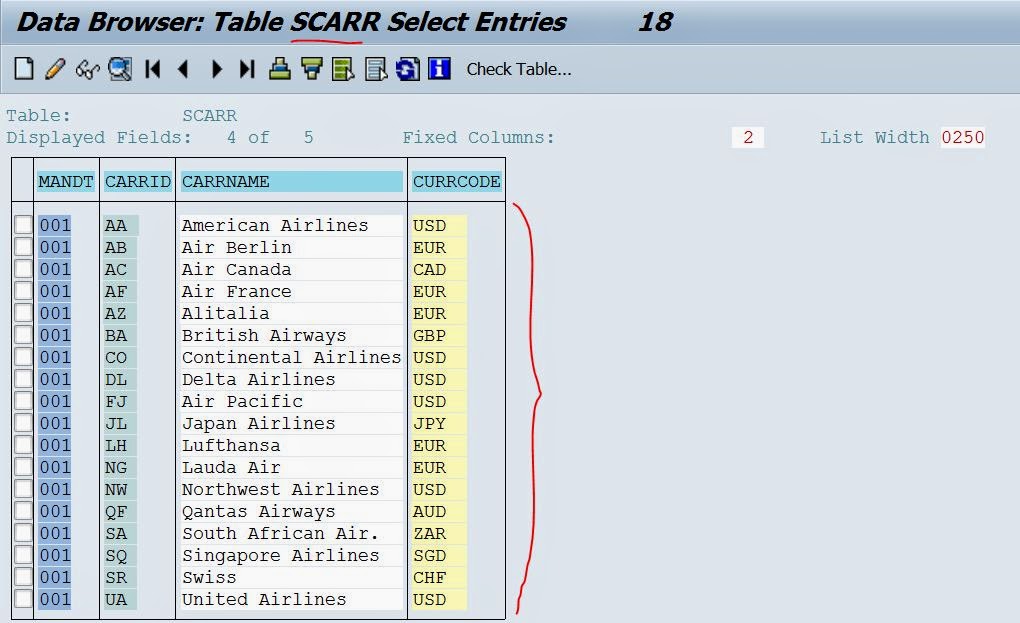

 Step1.  we have to select all record from this table and transform it into xml tree format.

Step2. Create the below structure in Tx- SE11.

Step3. We can create the Transformation Program Either in Tx- SXLT_TOOL/STRANS.

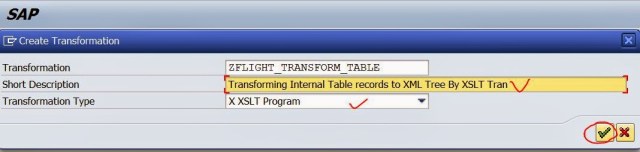

Step4. Provide a Name and click on create button.

Step5.  Select the Transformation type and continue.

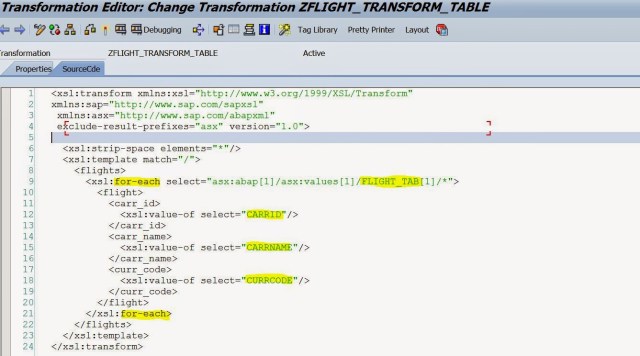

Step6. Provide the below code and activate the transformation.

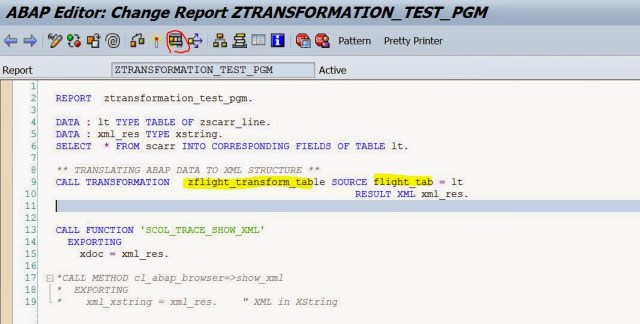

Step7. Create the below program & call the above created transformation and pass the values.

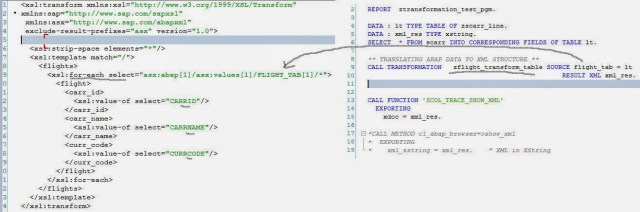

Step8. The mapping between the calling program & the Transformation program.

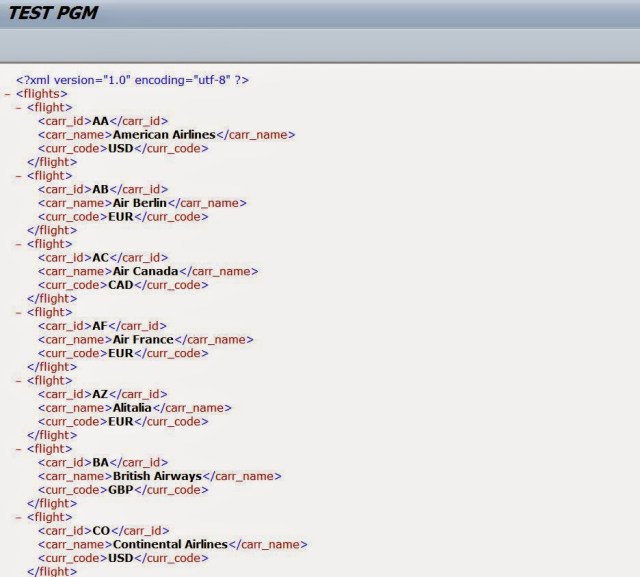

Step9. The O/P is as shown below:
