List/Grid/ Container Grid ALV by CL_SALV_TABLE


 The class CL_SALV_TABLE provides flexible way of displaying of list alv/grid alv or container grid alv.

Step1. Create the below program.

CLASS lcl_salv_tab DEFINITION.

  PUBLIC SECTION.

  CLASS-METHODS : main IMPORTING

                                                     i_list     TYPE xfeld

                                                     i_grid     TYPE xfeld

                                                     i_con_grid TYPE xfeld,

                                    fetch_records,

                                    get_alv_instance IMPORTING

                                                                     i_list     TYPE xfeld

                                                                     i_grid     TYPE xfeld

                                                                     i_con_grid TYPE xfeld,

                                     display_alv.

  PRIVATE SECTION.

  CLASS-DATA : lt                   TYPE TABLE OF sflight,

                              lo_salv_tab   TYPE REF TO cl_salv_table,

                              o_cust           TYPE REF TO cl_gui_custom_container.

ENDCLASS.

CLASS lcl_salv_tab IMPLEMENTATION.

  METHOD main.

    fetch_records( ).

    get_alv_instance( EXPORTING  i_list     = i_list

                                                          i_grid     = i_grid

                                                          i_con_grid = i_con_grid ).

    IF i_list EQ  ‘X’ OR i_grid = ‘X’.

       display_alv( ).

    ENDIF.


  ENDMETHOD.

  METHOD fetch_records.

    SELECT * FROM sflight INTO TABLE lt UP TO 20 ROWS.

  ENDMETHOD.

  METHOD get_alv_instance.

    DATA : flag.

    IF i_list = ‘X’ OR i_grid = ‘X’.

          IF i_list = ‘X’.

            flag = ‘X’.

          ELSE.

            flag = ‘ ‘.

          ENDIF.

         TRY.

         CALL METHOD cl_salv_table=>factory

          EXPORTING

             list_display   = flag

          IMPORTING

              r_salv_table   = lo_salv_tab

          CHANGING

              t_table        = lt.

         CATCH cx_salv_msg .

        ENDTRY.


   ELSEIF i_con_grid  = ‘X’.


        CREATE OBJECT o_cust

        EXPORTING

        container_name              = ‘CONT’.


         TRY.

         CALL METHOD cl_salv_table=>factory

          EXPORTING

              r_container    = o_cust

          IMPORTING

              r_salv_table   = lo_salv_tab

          CHANGING

              t_table        = lt.

         CATCH cx_salv_msg .

        ENDTRY.

         CALL SCREEN 0001.

    ENDIF.

  ENDMETHOD.

  METHOD display_alv.

    CALL METHOD lo_salv_tab->display.

  ENDMETHOD.

ENDCLASS.

START-OF-SELECTION.

SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME.

  PARAMETERS : list      RADIOBUTTON GROUP g1,

                               grid      RADIOBUTTON GROUP g1,

                              con_grid  RADIOBUTTON GROUP g1.

SELECTION-SCREEN END OF BLOCK b1.


CALL METHOD lcl_salv_tab=>main EXPORTING

                                 i_list     = list

                                 i_grid     = grid

                                 i_con_grid = con_grid.


MODULE status_0001 OUTPUT.

lcl_salv_tab=>display_alv( ).

ENDMODULE.                 ” status_0001  OUTPUT

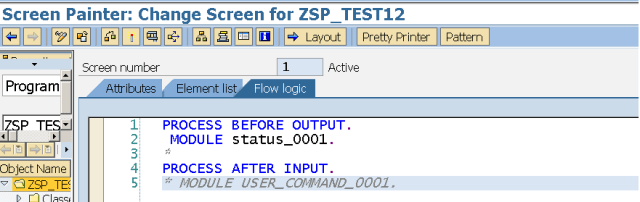

Step2. Screen flow logic in case of alv displayed on the custom container.

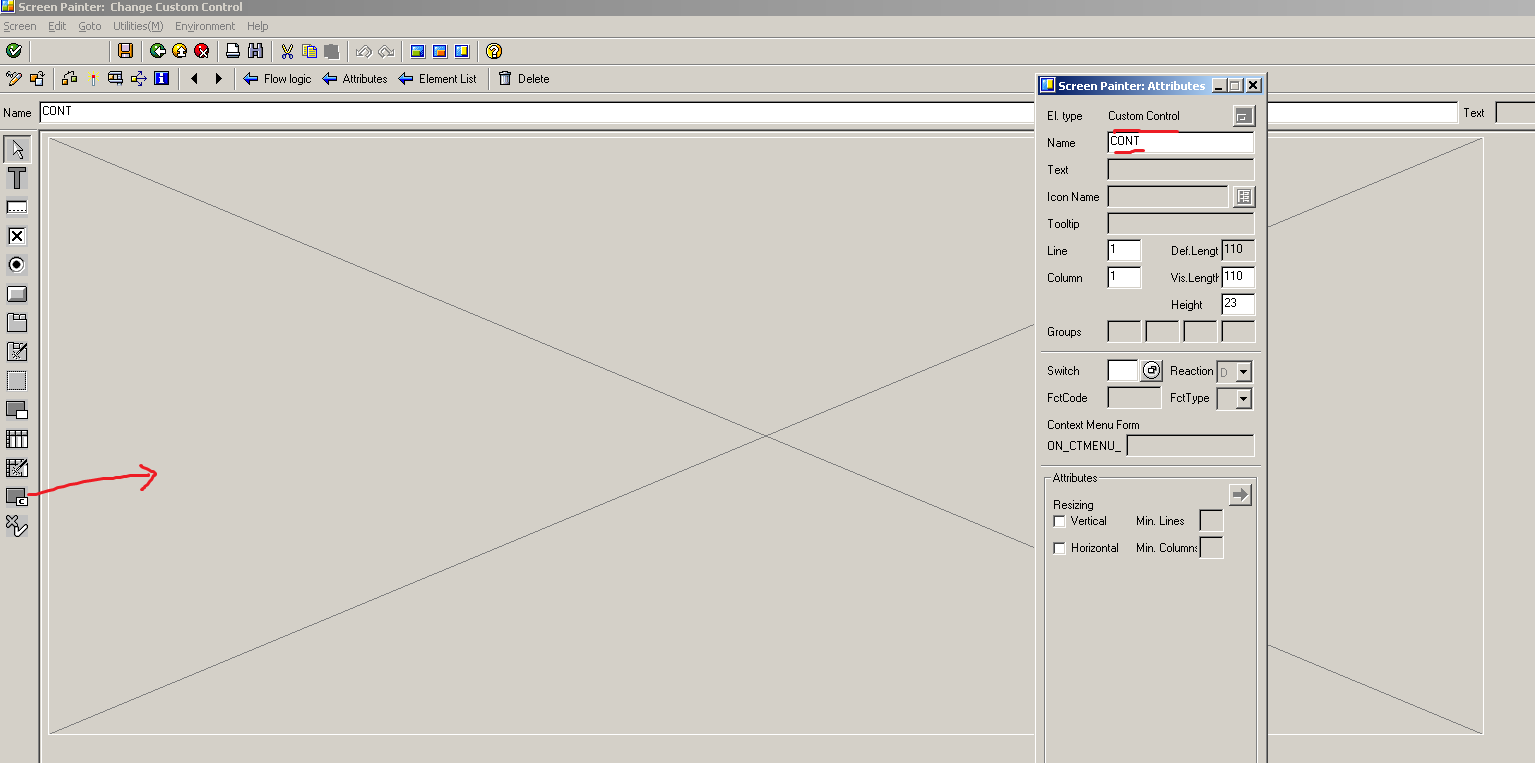

Step3. Custom container element on the screen.

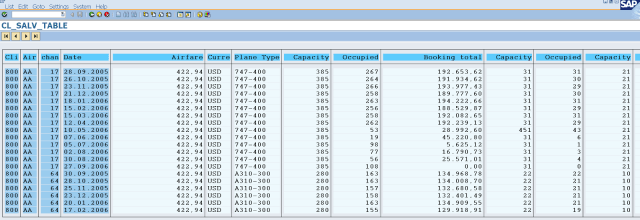

Step4.0 Run1 with list alv as o/p.

Step4.1

Step4.2 Run2 with grid alv as o/p.

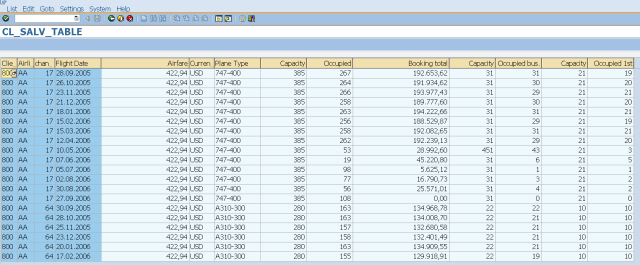

Step4.3 O/P as alv grid.

Step4.4 Run3 with container grid alv as o/p.

Step4.5 ALV grid o/p on the screen container.
