Description: Each tab of the Tab Strip control is attached with a sub screen. When Particular tab is clicked by the user then the appropriate sub screen is called and sits on the sub screen area
Step 1. Create a Module Pool program (Type ‘M’ ). Right click on the program name and choose create and click on Screen.
Step 2. Provide the screen number ‘0001’ and click on the continue button.
Stretch the tab strip according to the height and width. now double click on the control and provide the name as shown below (‘TAB_STRIP’).
Step 6. By default two tabs are automatically provided by the system. If you need some more tabs then select the push button element and drop it on the tab strip control on the screen.Double click on each tab and provide the tab name , text to be displayed and the F-Code value.

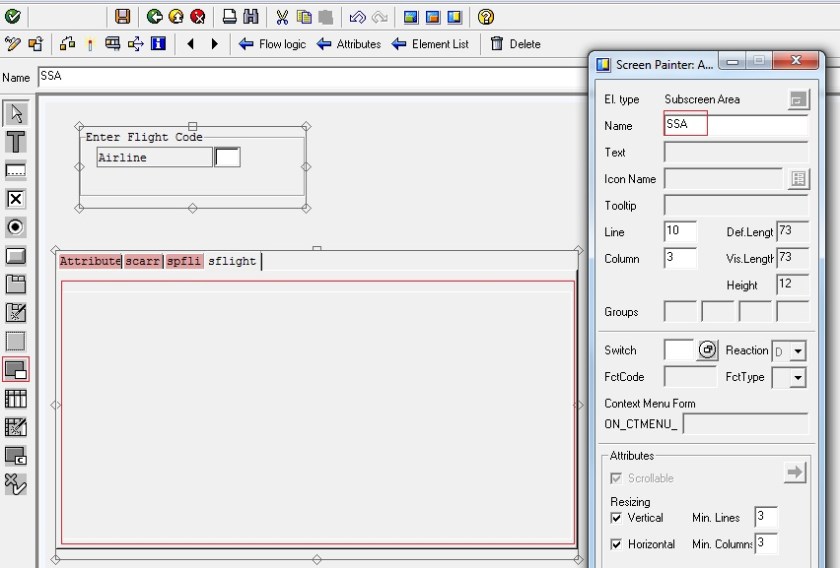

Step 7. Now select the Sub Screen Area element from the left column as marked, drag and drop it inside the tab strip. Now Double click on the Sub Screen Area and provide the name as ‘SSA’.
Step 8. Now Double click on each tab and in the ‘REF FIELD’ pass the sub screen area name as shown below.
Step 9. Now the design of the first screen is over. Lets create four sub screen as we have four tabs in the Tab Strip. Right click on the program name and navigate as per the below shown path to create a screen.
Step 10. Provide the screen number ‘0002’ and click on the continue button.
Step 11. Provide a short text and select the Sub Screen radio button and at last click on the Layout tab .
Step 12. Declare some variables in the program . Click on the top Button marked as red. Provide * in the Table/ Field Name and click on the button ‘Get From Program’. Select some variables as marked and click on the continue button.
Step 13. Create some text Labels for the Fields as shown Below.
Step 14. Now create another screen ‘0003’ for second tab. At last click on the Continue button.

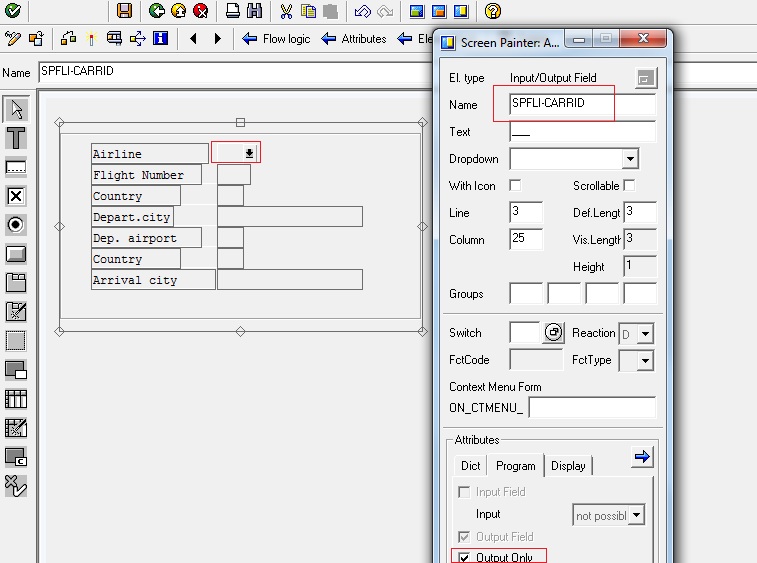

Step 17. Set the attribute of each field as Output only by double clicking on each field.

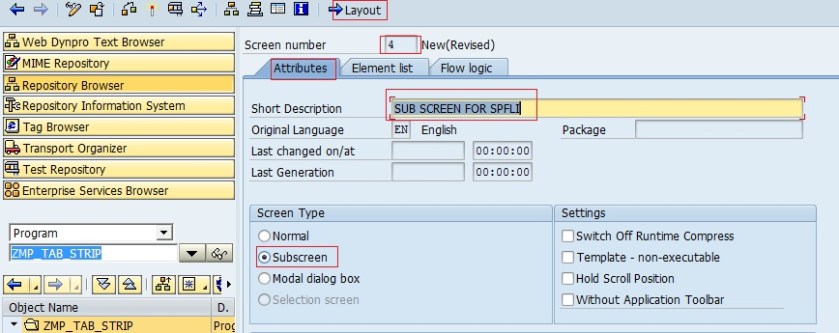

Step 18. Lets create another screen for the 3rd Tab . Give screen number as ‘0004’ and click on continue button.
Step 21. Set the property as Output Only fro each field.
Step 25.Set the property as Output Only fro each field.
Step 26. The main screen with four tabs in the tab strip and four sub screen design is ready. Flow Logic of screen ‘0001’. Define the modules in PBO and PAI in the main program by double clicking on the Module name in the flow logic.
Step 28. Flow Logic of screen ‘0003’.
Step 31. In the modules of the main screen write below code a shown.
Step 33. Now the Screen appears with Attribute tab as active.
Step 34. Provide the input as click on the ‘SCARR’ tab.
Step 35. Provide the input as click on the ‘SPFLI’ tab.
Step 36. Provide the input as click on the ‘SFLIGHT’ tab.
