Dialog & Non-Dialog BAPI


Dialog BAPIs usually calls the Screen where the user is required and it can not be executed in background where as with Non Dialog BAPIs can be called in Background mode without any User intervention. The below post shows the difference between the two types.

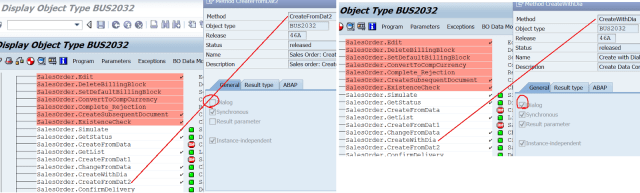

Step1.  Go to Tx- SWO1 & open the BO- BUS2032 Sales order. The two methods creates the Sales Order but one  without dialog mode and other is with dialog mode.

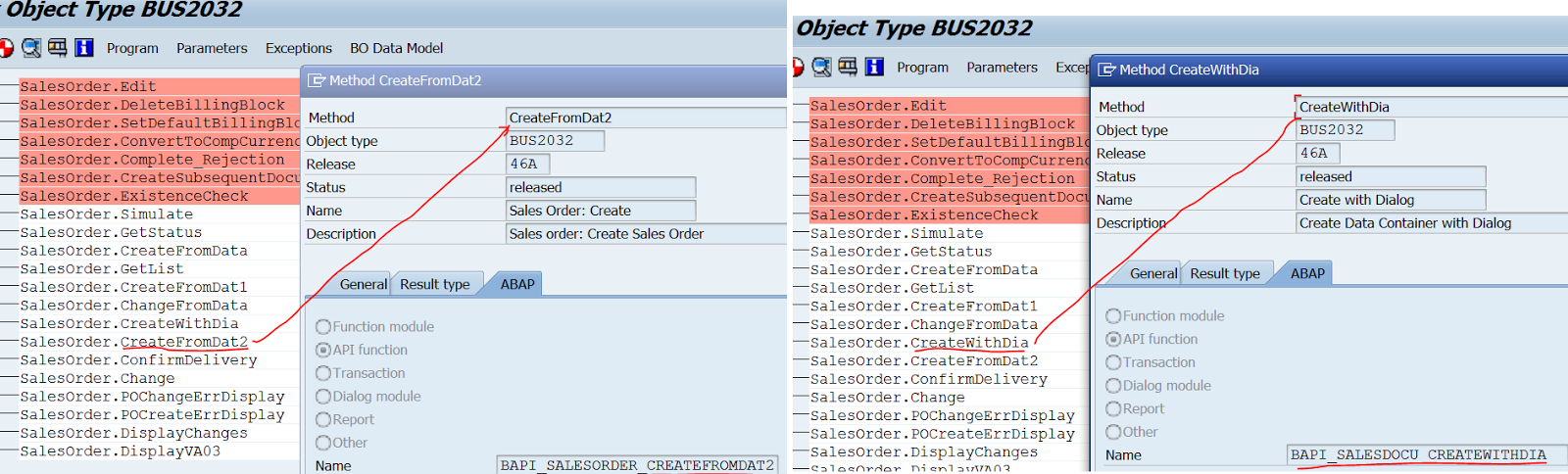

Step2. The associated FMs with the BAPI Methods.

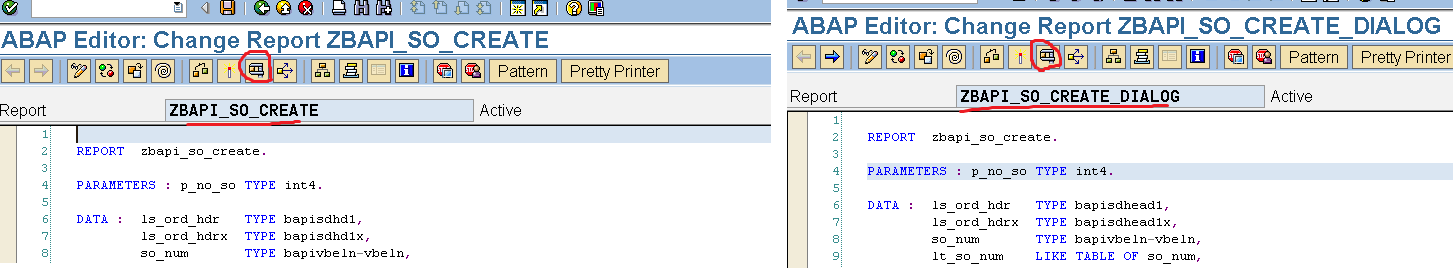

Step3. Create the below report which created the Sales Order By Non Dialog BAPI FM call.




PARAMETERS : p_no_so TYPE int4.


DATA :  ls_ord_hdr     TYPE bapisdhd1,

               ls_ord_hdrx   TYPE bapisdhd1x,

               so_num           TYPE bapivbeln-vbeln,

               lt_so_num       LIKE TABLE OF so_num,

               lt_ret              TYPE TABLE OF bapiret2,

               lt_item           TYPE TABLE OF bapisditm,

               ls_item           TYPE bapisditm,

               lt_itemx         TYPE TABLE OF bapisditmx,

               ls_itemx        TYPE bapisditmx,

               lt_part            TYPE TABLE OF bapiparnr,

               ls_part            TYPE  bapiparnr,

               lt_schd           TYPE TABLE OF bapischdl ,

               ls_schd          TYPE bapischdl,

               lt_schdx         TYPE TABLE OF  bapischdlx,

               ls_schdx         TYPE bapischdlx.

START-OF-SELECTION.

******* Fill the Sales Order Header ****************

  ls_ord_hdr-doc_type  = ‘TA’. ” ORDER Type : OR->TA as per TVAK table

  ls_ord_hdr-sales_org  = ‘AB99’.

  ls_ord_hdr-distr_chan  = ‘WS’.

  ls_ord_hdr-division  = ‘LT’.

  ls_ord_hdr-purch_no_c  = ‘ORDER_100’.

  ls_ord_hdrx-updateflag = ‘X’.

  ls_ord_hdrx-doc_type =’X’.

  ls_ord_hdrx-sales_org = ‘X’.

  ls_ord_hdrx-distr_chan = ‘X’.

  ls_ord_hdrx-division = ‘X’.

  ls_ord_hdrx-purch_no_c = ‘X’.

*********FILL PARTNERS TABLE  ******************

  ls_part-partn_role = ‘AG’.  ” SOLD TO PARTY

  ls_part-partn_numb = ‘0000099994’.

  APPEND ls_part TO lt_part.

  CLEAR ls_part.

  ls_part-partn_role = ‘RE’.  ” BILL TO PARTY

  ls_part-partn_numb = ‘0000099996’.

  APPEND ls_part TO lt_part.

  CLEAR ls_part.

  ls_part-partn_role = ‘RG’.  ” PAYER

  ls_part-partn_numb = ‘0000099997’.

  APPEND ls_part TO lt_part.

  CLEAR ls_part.

  ls_part-partn_role = ‘WE’.  ” SHIP TO PARTY

  ls_part-partn_numb = ‘0000099995’.

  APPEND ls_part TO lt_part.

  CLEAR ls_part.

*********FILL ITEMS ***********************

  ls_item-itm_number = ’10’.

  ls_item-material = ‘000000000000001278’.

  ls_item-plant = ‘PLBN’.

  ls_item-target_qty = ’10’.

  ls_item-target_qu = ‘EA’.

  APPEND ls_item TO lt_item.

  CLEAR : ls_item.

  ls_itemx-itm_number = ’10’.

  ls_itemx-material = ‘X’.

  ls_itemx-plant = ‘X’.

  ls_itemx-target_qty = ‘X’.

  ls_itemx-target_qu = ‘X’.

  APPEND ls_itemx  TO lt_itemx.

  CLEAR : ls_itemx.

******* SCHEDULE LINE *********************

  ls_schd-itm_number = ’10’.

  ls_schd-req_qty = ’10’.

  APPEND ls_schd TO lt_schd.

  CLEAR ls_schd.

  ls_schdx-itm_number = ’10’.

  ls_schdx-req_qty = ‘X’.

  ls_schdx-updateflag = ‘X’.

  APPEND ls_schdx TO lt_schdx.

  CLEAR ls_schdx.

  IF p_no_so > 0.

    DO p_no_so TIMES.

      CALL FUNCTION ‘BAPI_SALESORDER_CREATEFROMDAT2’

        EXPORTING

          order_header_in     = ls_ord_hdr

          order_header_inx    = ls_ord_hdrx

        IMPORTING

          salesdocument       = so_num

        TABLES

          return              = lt_ret

          order_items_in      = lt_item

          order_items_inx     = lt_itemx

          order_partners      = lt_part

          order_schedules_in  = lt_schd

          order_schedules_inx = lt_schdx.

      IF sy-subrc = 0.

        APPEND so_num TO lt_so_num.

        CLEAR so_num.

        COMMIT WORK.

      ENDIF.

    ENDDO.

  ENDIF.

END-OF-SELECTION.

  IF lt_so_num IS NOT INITIAL.

    LOOP AT lt_so_num INTO so_num.

      WRITE :/ ‘Sales Order Generated By BAPI call-‘, sy-tabix , ‘:’, so_num.

    ENDLOOP.

  ENDIF.




Step4. Create the below report which created the Sales Order By Dialog BAPI FM call.




PARAMETERS : p_no_so TYPE int4.


DATA :  ls_ord_hdr      TYPE bapisdhead1,

               ls_ord_hdrx    TYPE bapisdhead1x,

               so_num           TYPE bapivbeln-vbeln,

               lt_so_num       LIKE TABLE OF so_num,

               lt_ret               TYPE TABLE OF bapiret2,

               lt_item            TYPE TABLE OF bapisditem,

               ls_item           TYPE bapisditem,

               lt_itemx          TYPE TABLE OF bapisditmx,

               ls_itemx         TYPE bapisditmx,

                lt_part           TYPE TABLE OF bapipartnr,

               ls_part           TYPE  bapipartnr,

                lt_schd          TYPE TABLE OF bapischedule,

               ls_schd          TYPE bapischedule,

               lt_schdx        TYPE TABLE OF  bapischedulex,

                ls_schdx       TYPE bapischedulex.

START-OF-SELECTION.

******* Fill the Sales Order Header ****************

  ls_ord_hdr-doc_type  = ‘TA’. ” ORDER Type : OR->TA as per TVAK table

  ls_ord_hdr-sales_org  = ‘AB99’.

  ls_ord_hdr-distr_chan  = ‘WS’.

  ls_ord_hdr-division  = ‘LT’.

  ls_ord_hdr-purch_no_c  = ‘ORDER_100’.

  ls_ord_hdrx-doc_type =’X’.

  ls_ord_hdrx-sales_org = ‘X’.

  ls_ord_hdrx-distr_chan = ‘X’.

  ls_ord_hdrx-division = ‘X’.

  ls_ord_hdrx-purch_no_c = ‘X’.

*********FILL PARTNERS TABLE  ******************

  ls_part-partn_role = ‘AG’.  ” SOLD TO PARTY

  ls_part-partn_numb = ‘0000099994’.

  APPEND ls_part TO lt_part.

  CLEAR ls_part.

  ls_part-partn_role = ‘RE’.  ” BILL TO PARTY

  ls_part-partn_numb = ‘0000099996’.

  APPEND ls_part TO lt_part.

  CLEAR ls_part.

  ls_part-partn_role = ‘RG’.  ” PAYER

  ls_part-partn_numb = ‘0000099997’.

  APPEND ls_part TO lt_part.

  CLEAR ls_part.

  ls_part-partn_role = ‘WE’.  ” SHIP TO PARTY

  ls_part-partn_numb = ‘0000099995’.

  APPEND ls_part TO lt_part.

  CLEAR ls_part.

*********FILL ITEMS ***********************

  ls_item-itm_number = ’10’.

  ls_item-material = ‘000000000000001248’.

  ls_item-plant = ‘PLBN’.

  ls_item-target_qty = ’10’.

  ls_item-target_qu = ‘EA’.

  APPEND ls_item TO lt_item.

  CLEAR : ls_item.

  ls_itemx-itm_number = ’10’.

  ls_itemx-material = ‘X’.

  ls_itemx-plant = ‘X’.

  ls_itemx-target_qty = ‘X’.

  ls_itemx-target_qu = ‘X’.

  APPEND ls_itemx  TO lt_itemx.

  CLEAR : ls_itemx.

******* SCHEDULE LINE *********************

  ls_schd-itm_number = ’10’.

  ls_schd-req_qty = ’10’.

  APPEND ls_schd TO lt_schd.

  CLEAR ls_schd.

  ls_schdx-itm_number = ’10’.

  ls_schdx-req_qty = ‘X’.

  ls_schdx-updateflag = ‘X’.

  APPEND ls_schdx TO lt_schdx.

  CLEAR ls_schdx.

  IF p_no_so > 0.

    DO p_no_so TIMES.

      CALL FUNCTION ‘BAPI_SALESDOCU_CREATEWITHDIA’ ” Calls VA01 Transaction

        EXPORTING

          sales_header_in               = ls_ord_hdr

          sales_header_inx              = ls_ord_hdrx

     IMPORTING

      SALESDOCUMENT_EX              = so_num

       TABLES

         return                        = lt_ret

         sales_items_in                = lt_item

         sales_items_inx               = lt_itemx

         sales_partners                = lt_part

         sales_schedules_in            = lt_schd

         sales_schedules_inx           = lt_schdx.

      IF sy-subrc = 0.

        APPEND so_num TO lt_so_num.

        CLEAR so_num.

        COMMIT WORK.

      ENDIF.

    ENDDO.

  ENDIF.

END-OF-SELECTION.

  IF lt_so_num IS NOT INITIAL.

    LOOP AT lt_so_num INTO so_num.

      WRITE :/ ‘Sales Order Generated By BAPI call-‘, sy-tabix , ‘:’, so_num.

    ENDLOOP.

  ENDIF.

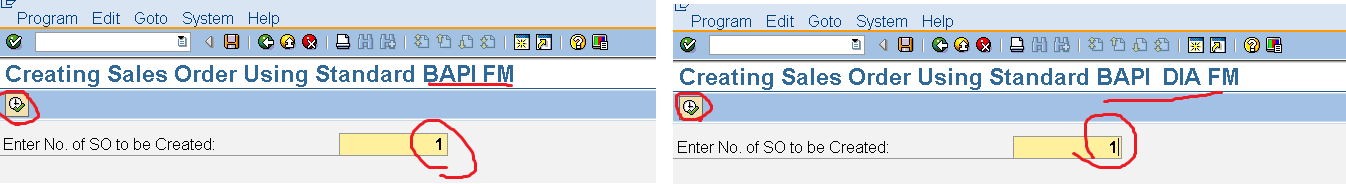

Step5. Execute both the report and see the output.

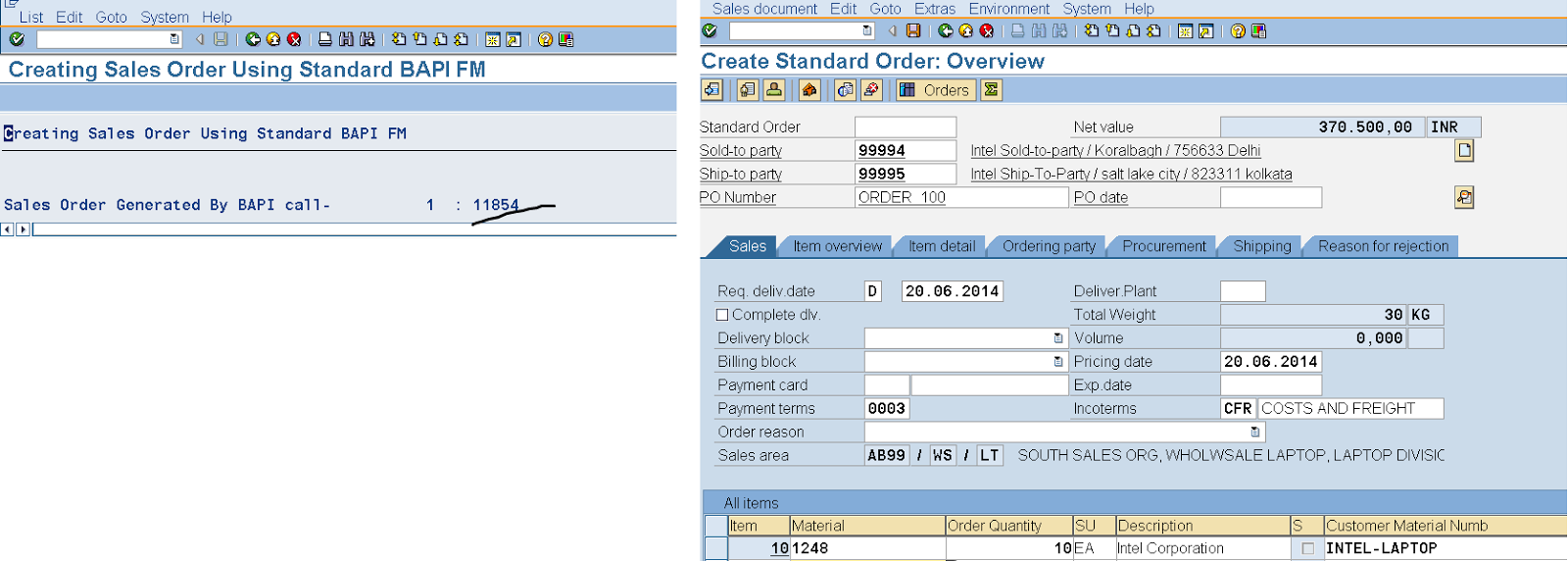

Step6. The first one directly creates the Sales Order  & the other Dialog BAPI calls the transaction VA01 and waits for the user action like Save or modifying something in the Screen.

Step7.

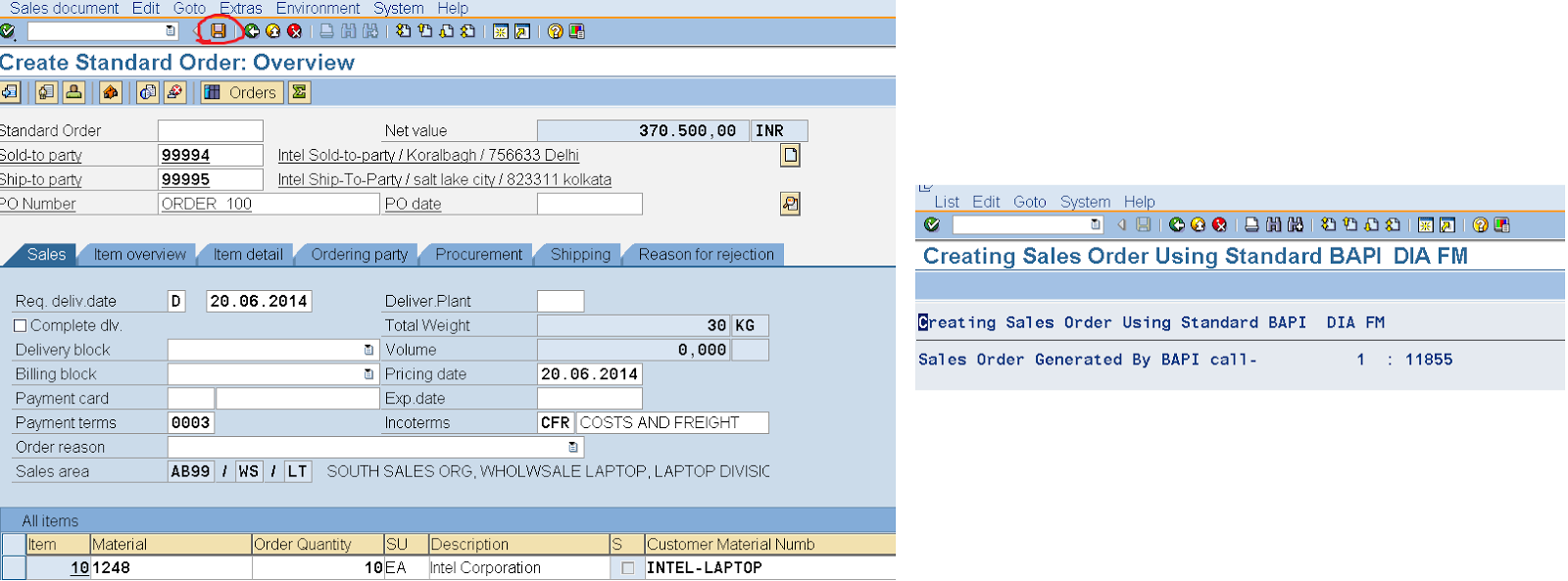

Step8. When it is saved the Sales order number is generated.
