Hierarchical Sequential ALV-01

light111Hierarchical Sequential ALV on flight model

This post shows how to display a hierarchical sequential list ALV.


Code Snippet:


TYPES: BEGIN OF ty_hdr,
                  expand,
                  carrid TYPE s_carr_id,
                  carrname TYPE s_carrname,
             END OF ty_hdr.

TYPES: BEGIN OF ty_itm,
                     carrid TYPE s_carr_id,
                     connid TYPE s_conn_id,
                     countryfr TYPE land1,
                     countryto TYPE land1,
              END OF ty_itm.

DATA: lt_hdr TYPE TABLE OF ty_hdr.
DATA: lt_itm TYPE TABLE OF ty_itm.
DATA: ls_layt TYPE slis_layout_alv.
DATA: lt_fcat TYPE slis_t_fieldcat_alv.
DATA: ls_fcat TYPE LINE OF slis_t_fieldcat_alv.
DATA: ls_key TYPE slis_keyinfo_alv.

START-OF-SELECTION.
SELECT carrid carrname FROM scarr INTO CORRESPONDING FIELDS OF TABLE lt_hdr.
CHECK lt_hdr IS NOT INITIAL.
SELECT carrid connid countryfr countryto FROM spfli INTO CORRESPONDING FIELDS OF TABLE lt_itm
FOR ALL ENTRIES IN lt_hdr WHERE carrid = lt_hdr-carrid.
” Build layout
ls_layt-expand_fieldname = ‘EXPAND’.
ls_layt-colwidth_optimize = ‘X’.

” Build Keyinfo
ls_key-header01 = ‘CARRID’.
ls_key-item01 = ‘CARRID’.
“Build Fieldcat
ls_fcat-col_pos = ‘1’.
ls_fcat-fieldname = ‘CARRID’.
ls_fcat-tabname = ‘LT_HDR’.
ls_fcat-key = ‘X’.
ls_fcat-seltext_m = ‘Flight ID’.
APPEND ls_fcat TO lt_fcat.
CLEAR ls_fcat.

ls_fcat-col_pos = ‘2’.
ls_fcat-fieldname = ‘CARRNAME’.
ls_fcat-tabname = ‘LT_HDR’.
ls_fcat-seltext_m = ‘Flight Conn’.
APPEND ls_fcat TO lt_fcat.
CLEAR ls_fcat.

ls_fcat-col_pos = ‘3’.
ls_fcat-fieldname = ‘CONNID’.
ls_fcat-tabname = ‘LT_ITM’.
ls_fcat-seltext_m = ‘Conn Number’.
APPEND ls_fcat TO lt_fcat.
CLEAR ls_fcat.

ls_fcat-col_pos = ‘4’.
ls_fcat-fieldname = ‘COUNTRYFR’.
ls_fcat-tabname = ‘LT_ITM’.
ls_fcat-seltext_m = ‘From Country’.
APPEND ls_fcat TO lt_fcat.
CLEAR ls_fcat.

ls_fcat-col_pos = ‘5’.
ls_fcat-fieldname = ‘COUNTRYTO’.
ls_fcat-tabname = ‘LT_ITM’.
ls_fcat-seltext_m = ‘To Country’.
APPEND ls_fcat TO lt_fcat.
CLEAR ls_fcat.

CALL FUNCTION ‘REUSE_ALV_HIERSEQ_LIST_DISPLAY’
EXPORTING
i_callback_program = sy-repid
is_layout = ls_layt
it_fieldcat = lt_fcat
i_tabname_header = ‘LT_HDR’
i_tabname_item = ‘LT_ITM’
is_keyinfo = ls_key
TABLES
t_outtab_header = lt_hdr
t_outtab_item = lt_itm
EXCEPTIONS
program_error = 1
OTHERS = 2.

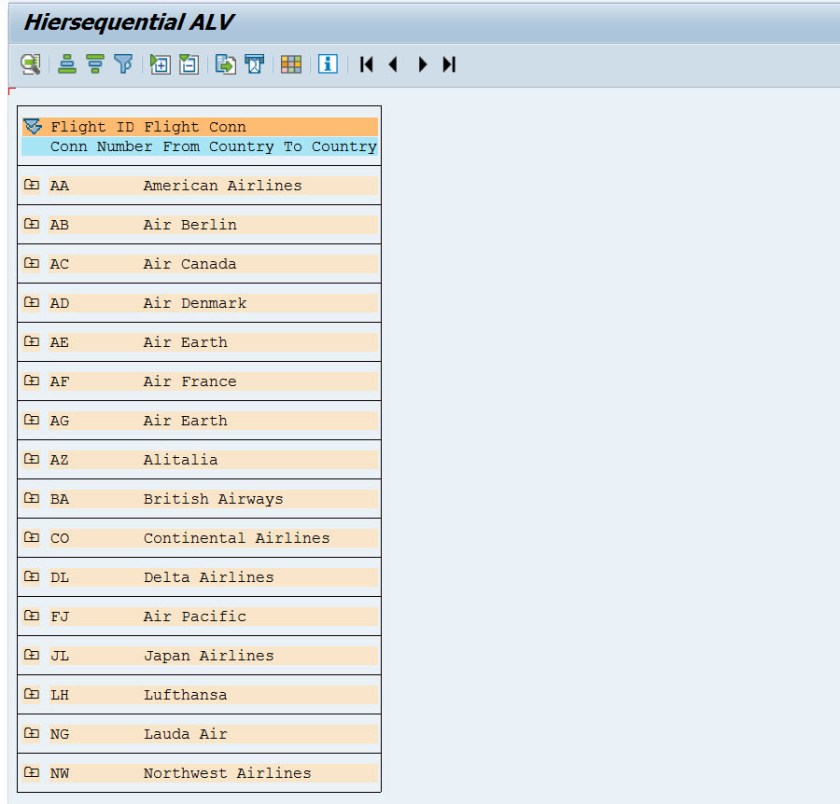

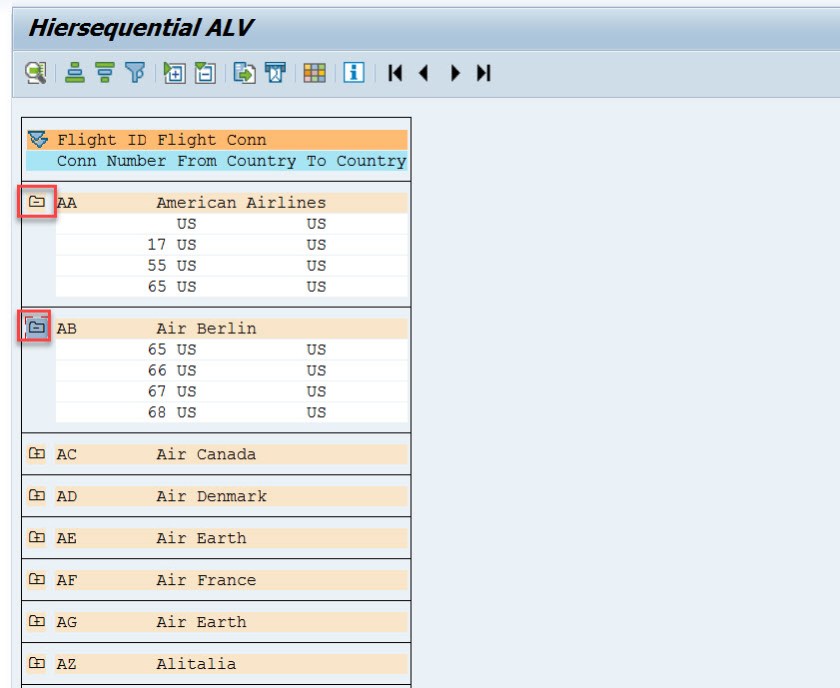

Program Output: Expand the ‘+’ button and it will display the items.

12
